Setting up the device
BEETLE /M-III - Service manual 13
7 Setting up the device
Install the BEETLE/ M III POS system in such a way that it is not subjected to extreme ambient conditions. Protect
devices against vibrations, dust, moisture, heat and strong magnetic fields.
Please adhere to the listed minimum distances in front of and behind the device! While installing the device,
make sure that you absolutely adhere to the minimum distances and ensure reliable aeration and ventilation. The
direct ambient temperature of the system must not exceed 40°C (104°F).
NOTICE
In cases where cable cover is used, a distance of 60 mm (2.36") must also be maintained behind that cover.
7.1 Vertical installation
The distances for free convection must also be adhered to in conjunction with vertical installation in a closed
teller cabinet.

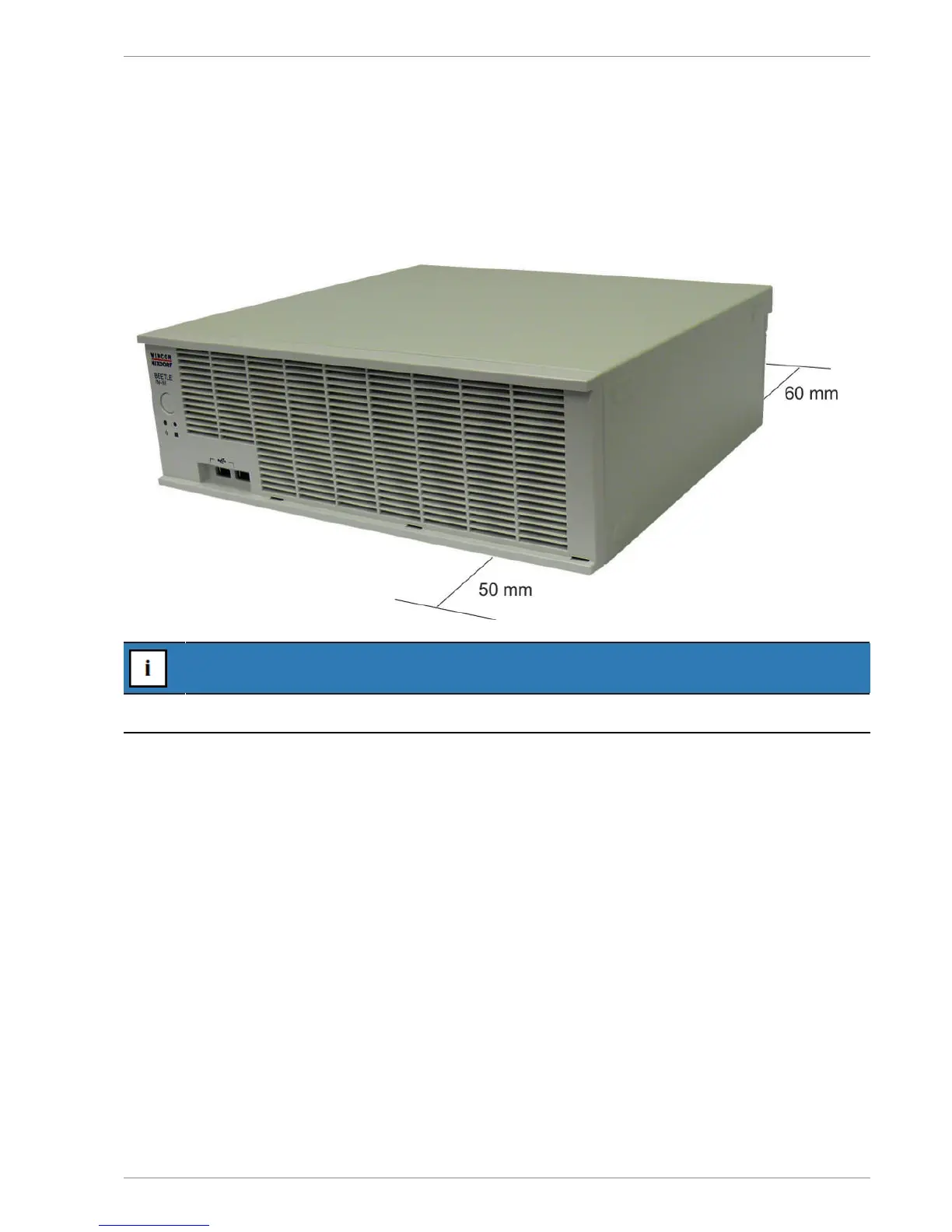

Minimum distances
To the rear 60 mm (2.35")
To the front 50 mm (1.97")
In cases of installation with cable cover, a distance of 60 mm (2.36") must be maintained behind that cover. The
minimum front clearance distance of 50 mm (1.97") must be maintained.
The device can be set up on the right or left side.
