Chassis components
BEETLE /M-III - Service manual 9

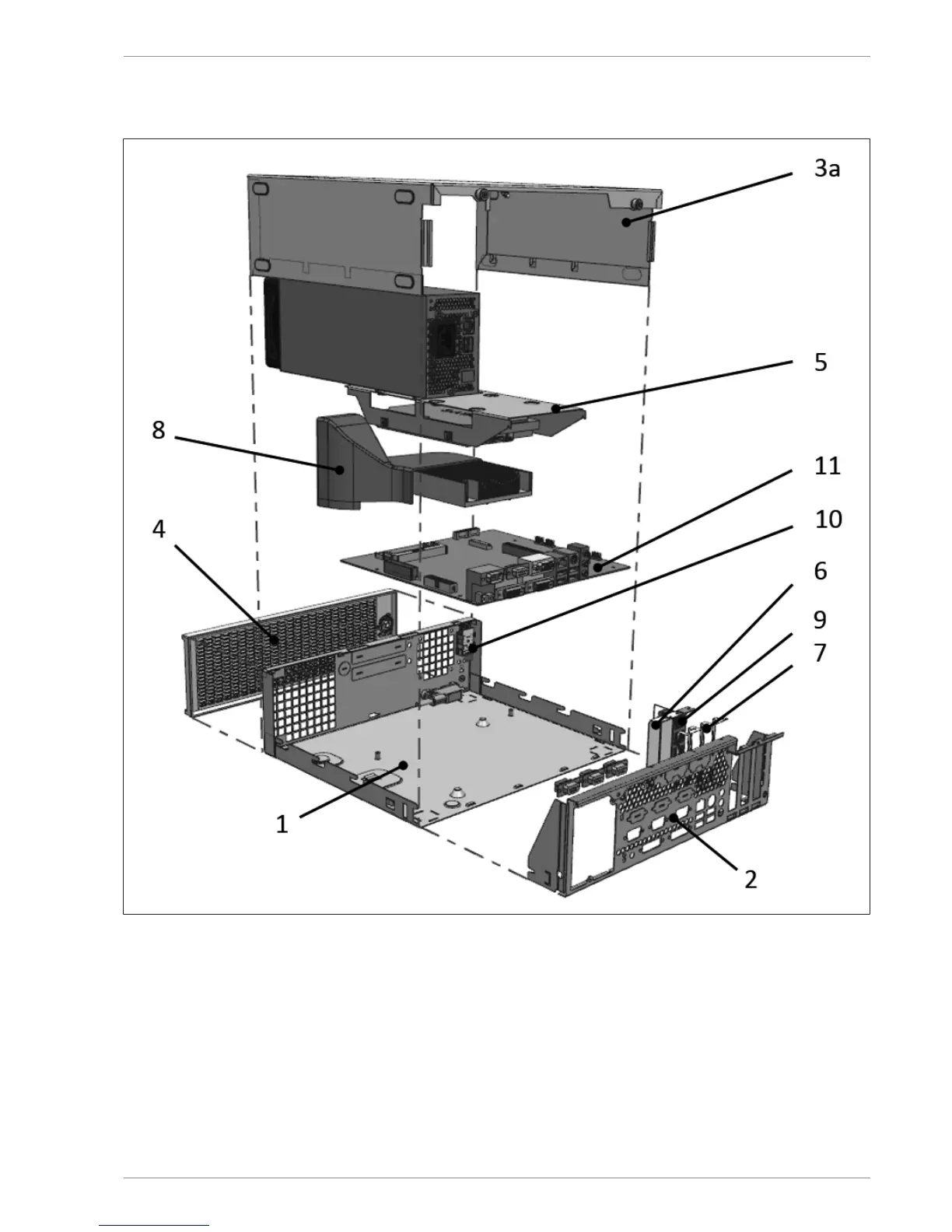

4 Chassis components
1 Floor unit
2 Rear wall
3a Hood
4 Front cover
5 Hard disk holder
6 Slotted orifice plates
7 EMC sheet metal
8 Air duct (not with a BEETLE/M-III with O1 motherboard)
9 Retail card (not with a BEETLE/M-III withO1 motherboard)
10 Combination module carrier
11 Motherboard
