Storage Media
26 BEETLE /M-III - Service manual

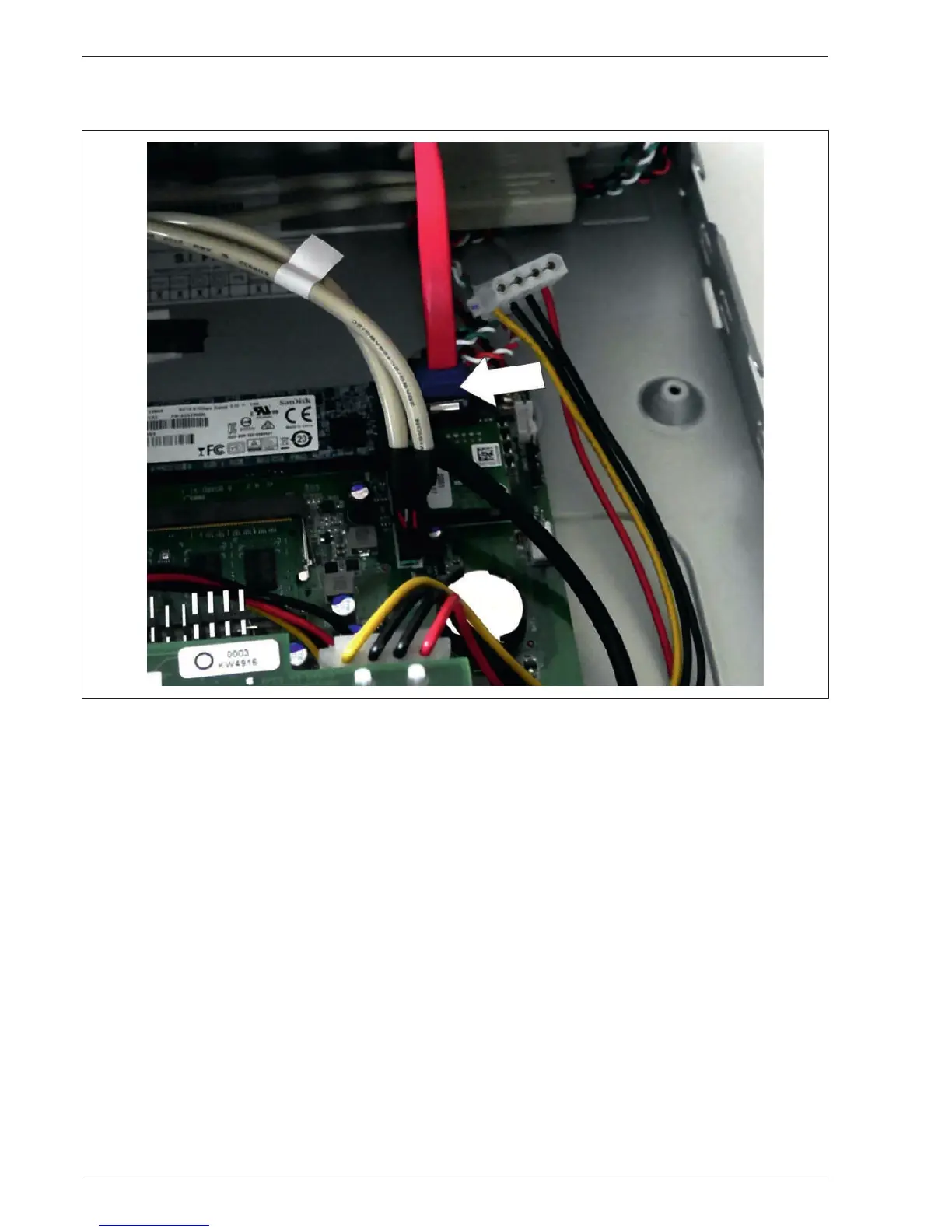

14.3 SATA port on the O1 motherboard
SATA (blue) Port for a 3.5“ hard disk or a 2.5“ HDD/SSD
