DIEBOLD Service manual - 22 Replacing the Combination Module

Replacing the combination module
60 BEETLE /M-III - Service manual
22 Replacing the combination module
The combination module is comprised of LED, Beeper and Power-Taster.
Shut down the system. Remove the cable cover and pull the power plug at the rear.
Remove the housing hood.
NOTICE
Observe the instructions regarding electrostatic discharge-sensitive assemblies (see chapter "Electrostatic dis-
charge-sensitive components").

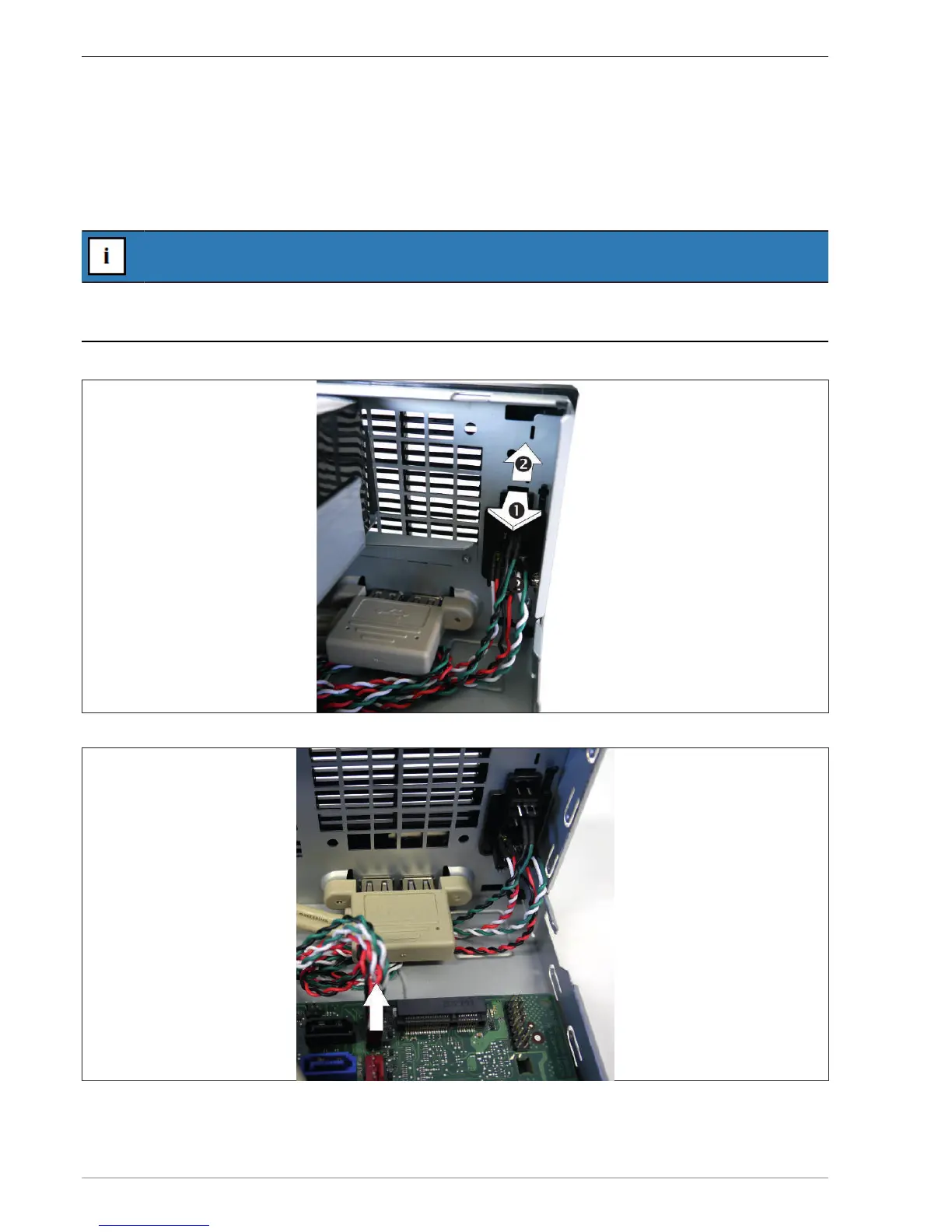

Bend the tab of the module slightly into the housing interior and remove the module upwards.
Disengage the plug of the module from the motherboard.
Illustration1: for a K1/K2 and M1/M2 motherboard
