24 Replacing 4Port USB hubs
Shut down the system. Remove the cable cover and pull the power plug at the rear.
Remove the housing hood.
NOTICE
Observe the instructions regarding electrostatic discharge-sensitive assemblies (see chapter "Electrostatic dis-
charge-sensitive components").
Fold the hard disk holder upwards and set it aside.
Disengage the two plug connections on the USB hub.

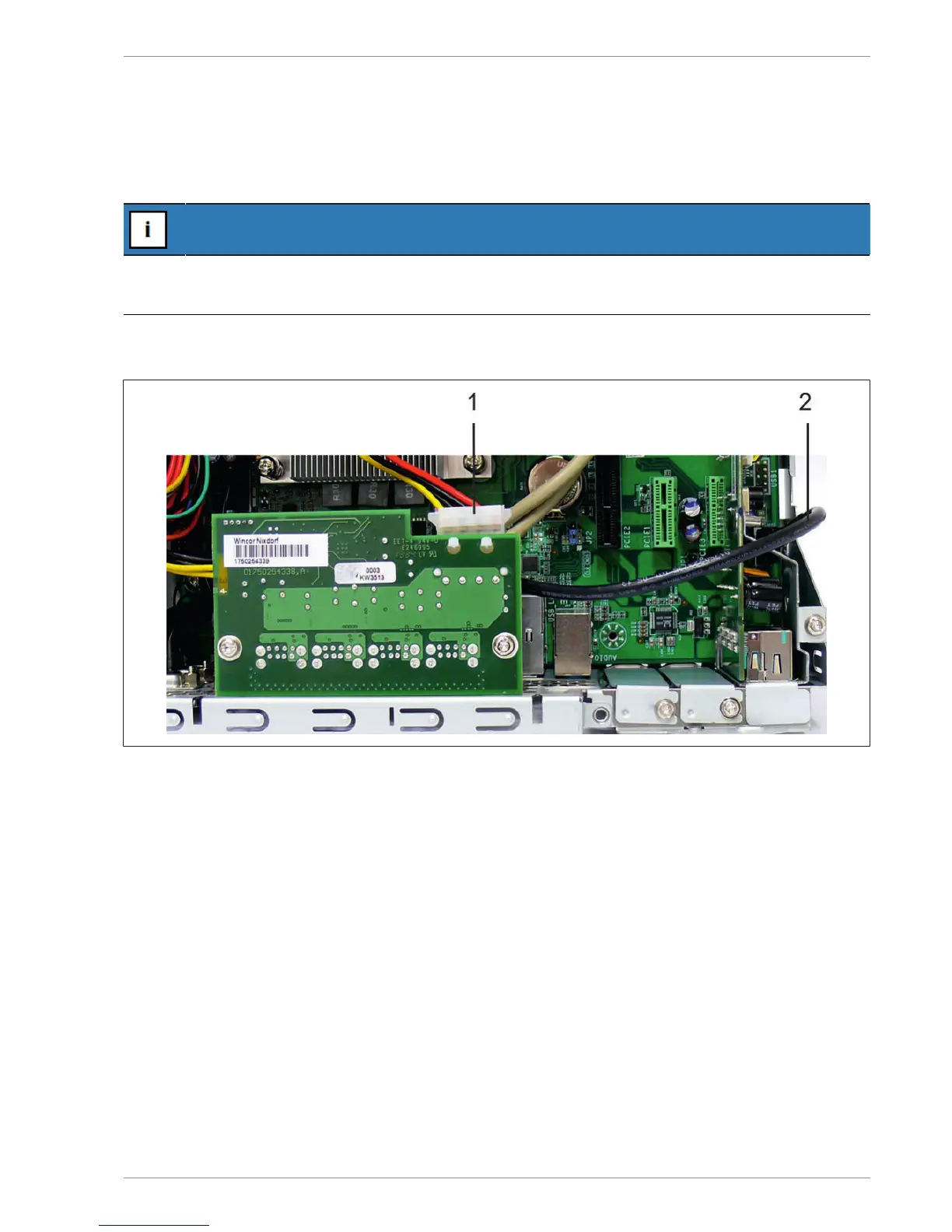

1 Power supply 2 Data cable
