Replacing 4Port USB hubs

66 BEETLE /M-III - Service manual

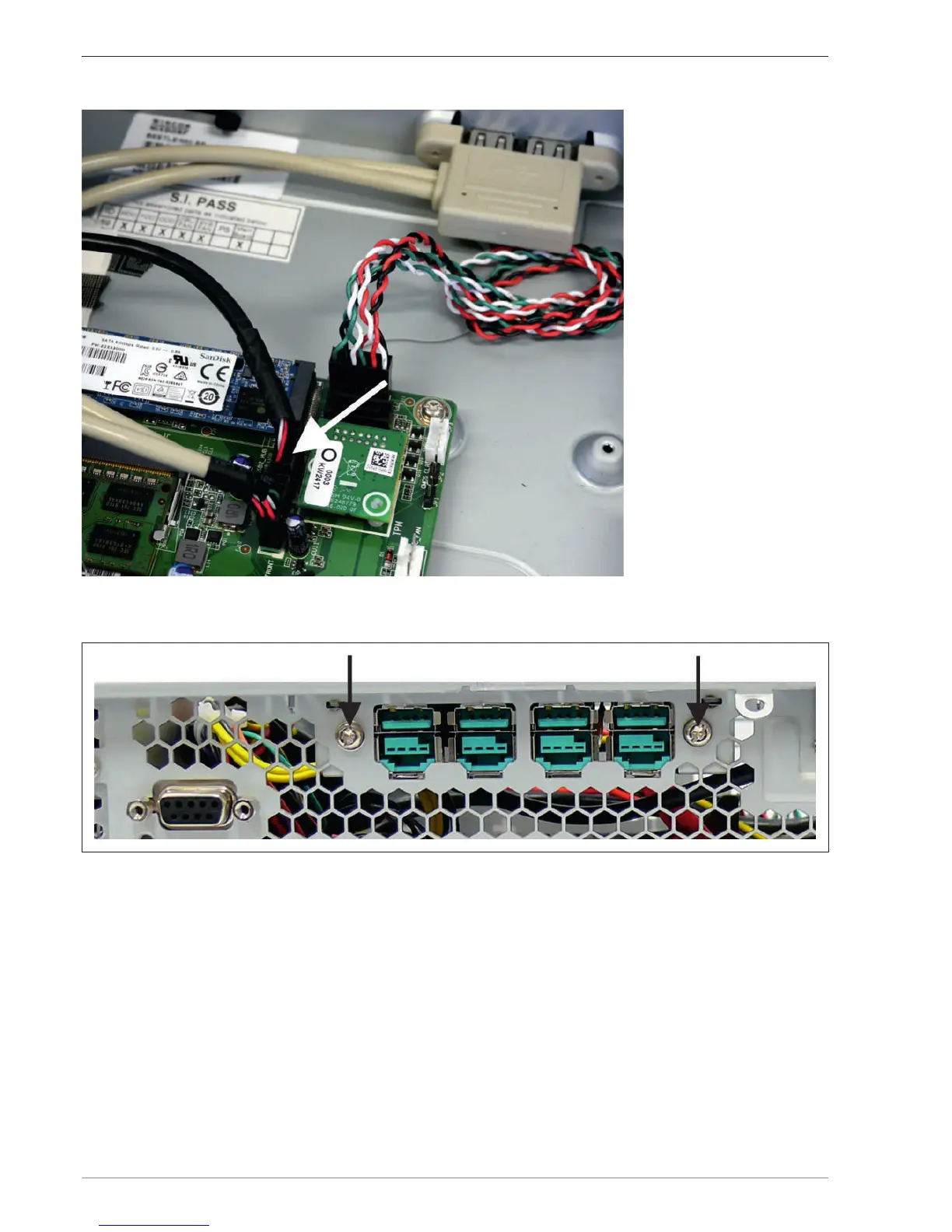

The data cable of the PUSB hub on the motherboard remains plugged in!

Remove the two screws on the rear side of the BEETLE/M-III.

Remove the USB hub inwards.

Install the new hub following the steps in reverse order.
