14 Storage Media
You have at your disposal the following storage media: a 3.5" SATA-hard disk or two 2.5" SATA hard disks or one
or two 2.5" Solid State Drives.
14.1 Replacing a 3.5" SATA hard disk
Shut down the system. Remove the cable cover and pull the power plug at the rear.
Remove the housing cover.
NOTICE
Observe the instructions regarding electrostatic discharge-sensitive assemblies (see chapter "Electrostatic dis-
charge-sensitive components").
Fold open the hard disk carrier upwards and pull the data cable and the power supply cable from the 3.5" hard
disk.

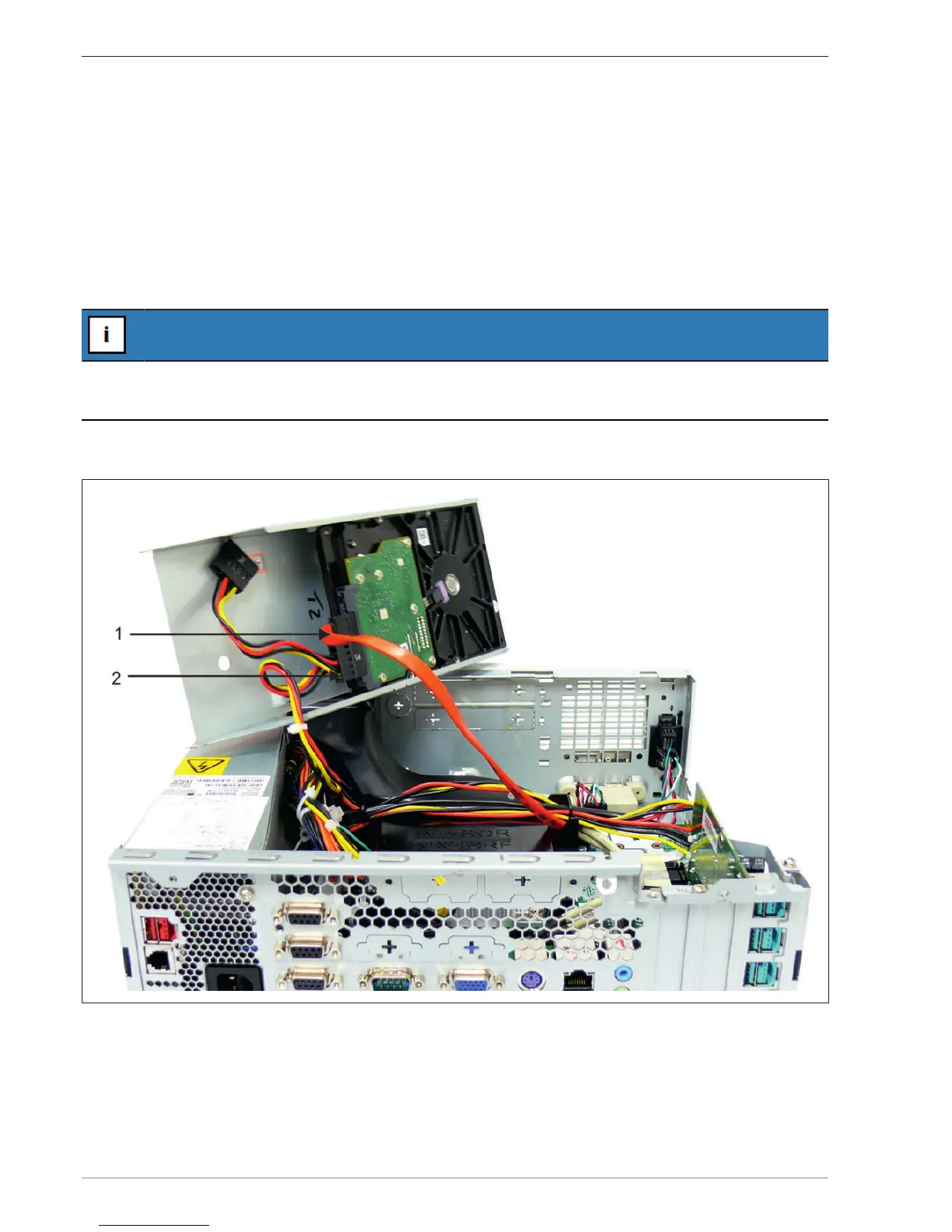

1 SATA data cable 2 SATA power supply cable
Remove the hard drive carrier.
