Assembling the cable cover
BEETLE /M-III - Service manual 17
9 Assembling the cable cover
A cable cover is optionally available in the scope of delivery of your BEETLE /M-III.
A pre-punched cable entry should be removed if required before attaching the cable cover.
No tools are required, the pre-punched opening can be loosened by hand at the predetermined breaking point.

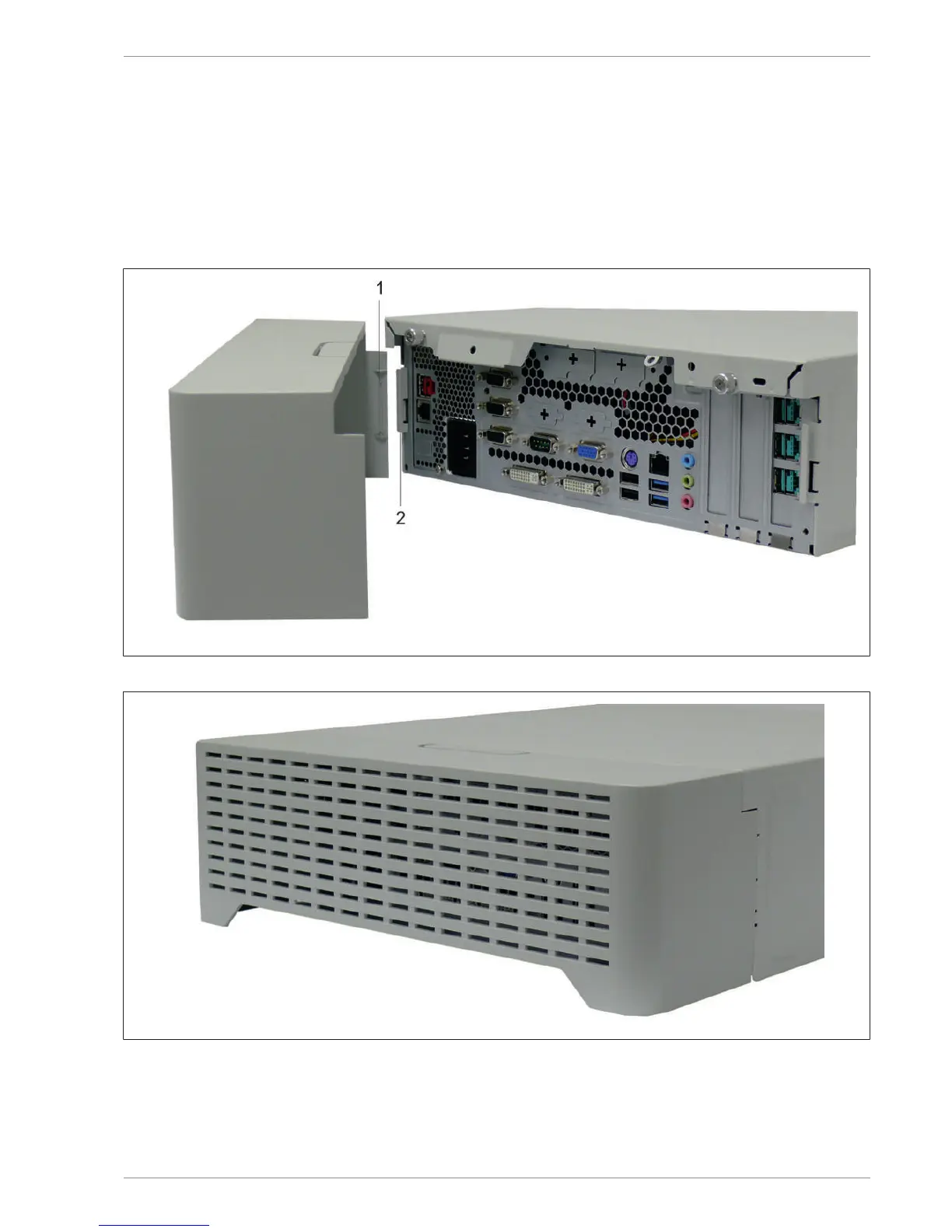

To install the cable cover, first set the web of the cover on the left side on the rail at the rear side of the BEETLE /
M-III. Pull the right side outwards and set this as well on the rail provided for that purpose.
1 Web 2 Rail
