Connecting the device
16 BEETLE /M-III - Service manual
The LED (PWR) on the front side lights up in orange (Standby) and thus indicates operational readiness.
Briefly press the On / Off button on the front side of the housing to switch on the device. The LED changes to
green in operating mode.

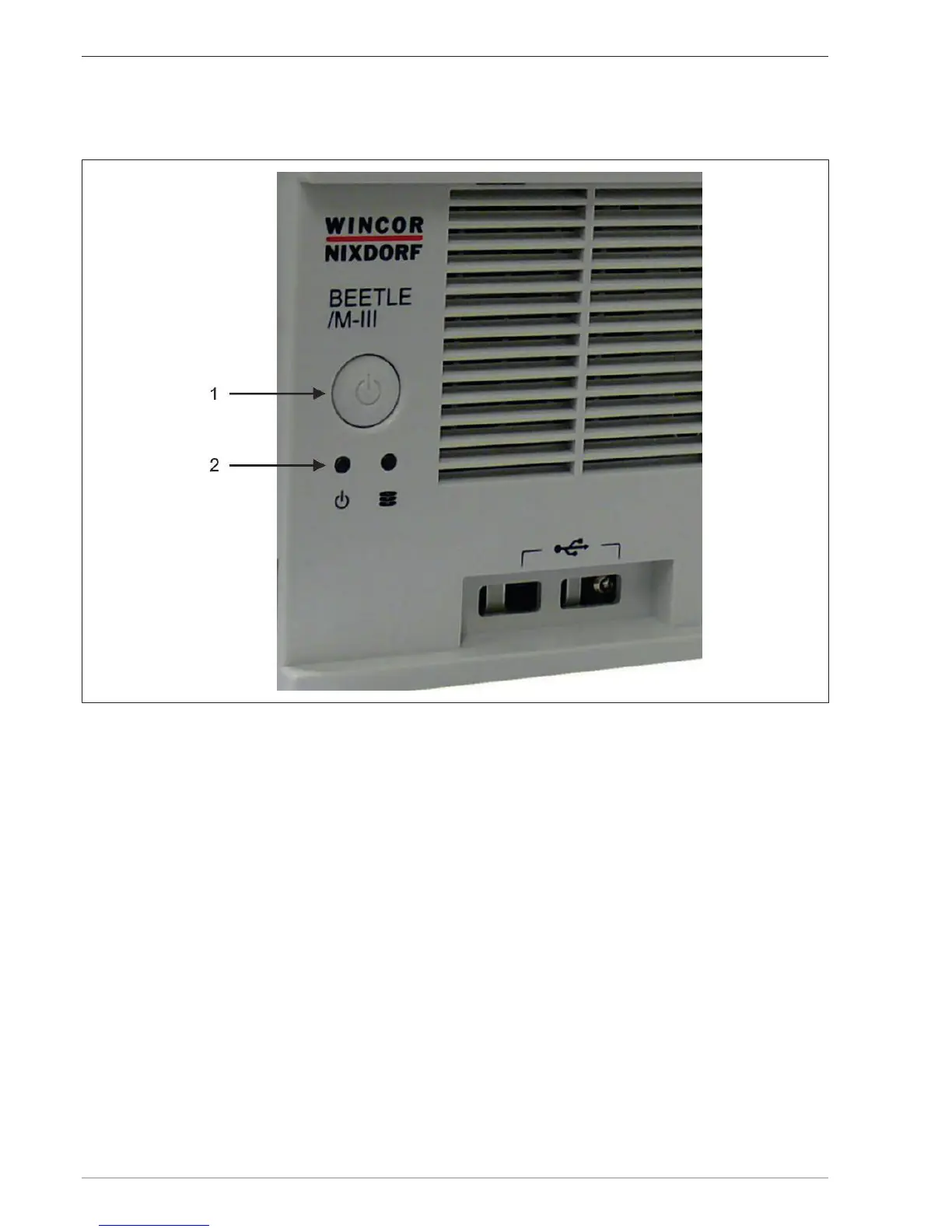

1 On / Off button 2 Power LED
