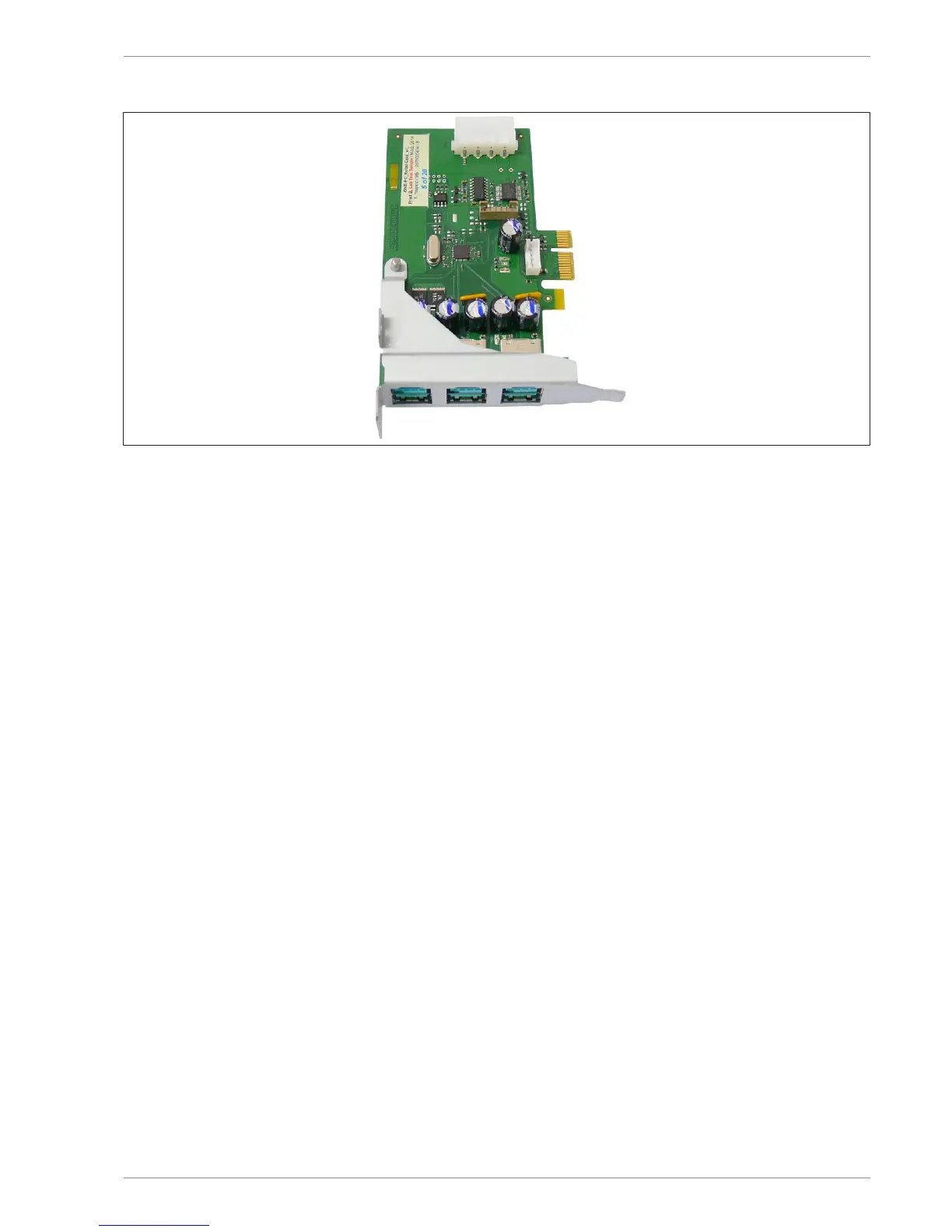

Switching the Retail card

BEETLE /M-III - Service manual 59

Remove the card upwards.

Install the Retail card following the steps in reverse order.
