Replacing the power supply unit

BEETLE /M-III - Service manual 41

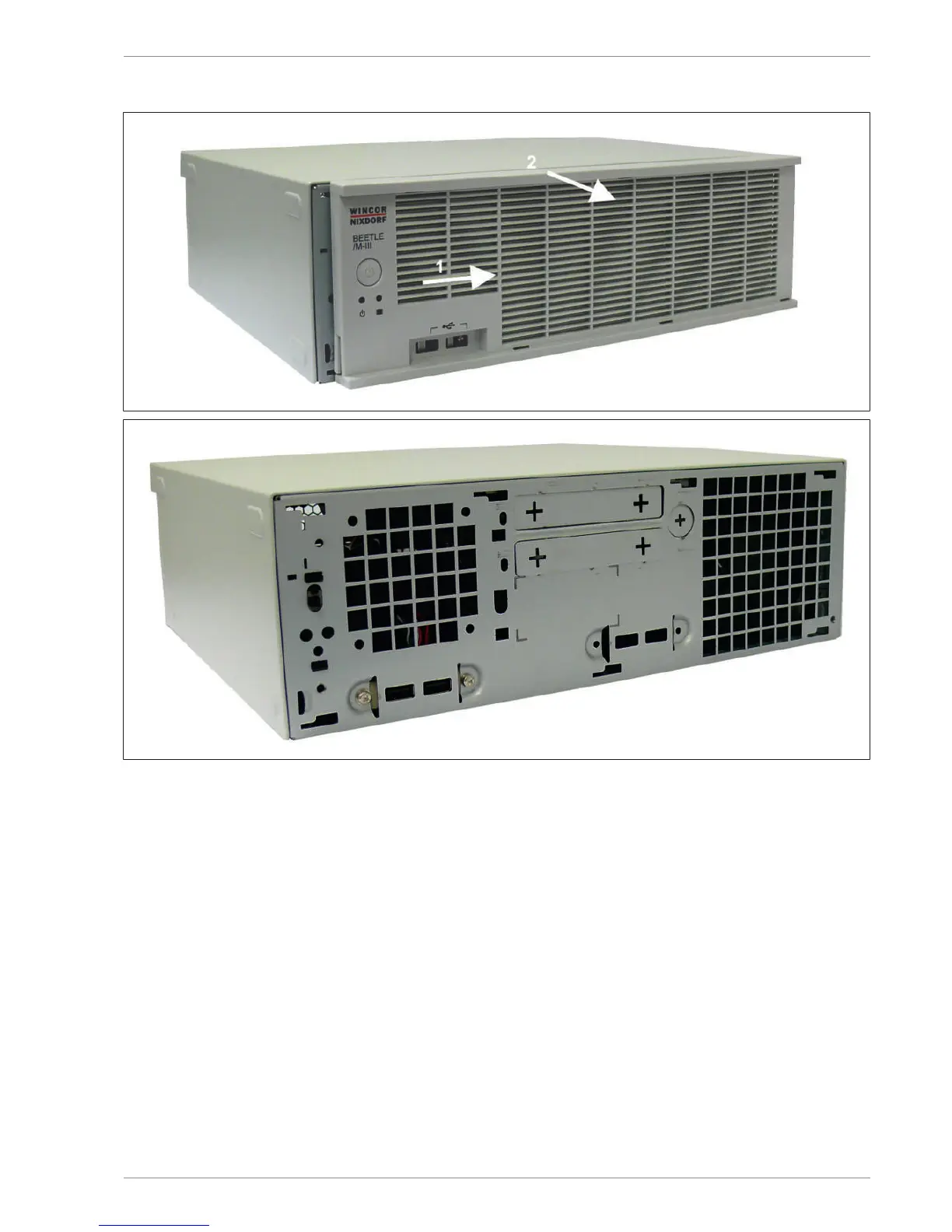

Push the orifice plate to the side (1) and remove it towards the front (2).
