Replacing the power supply unit

48 BEETLE /M-III - Service manual

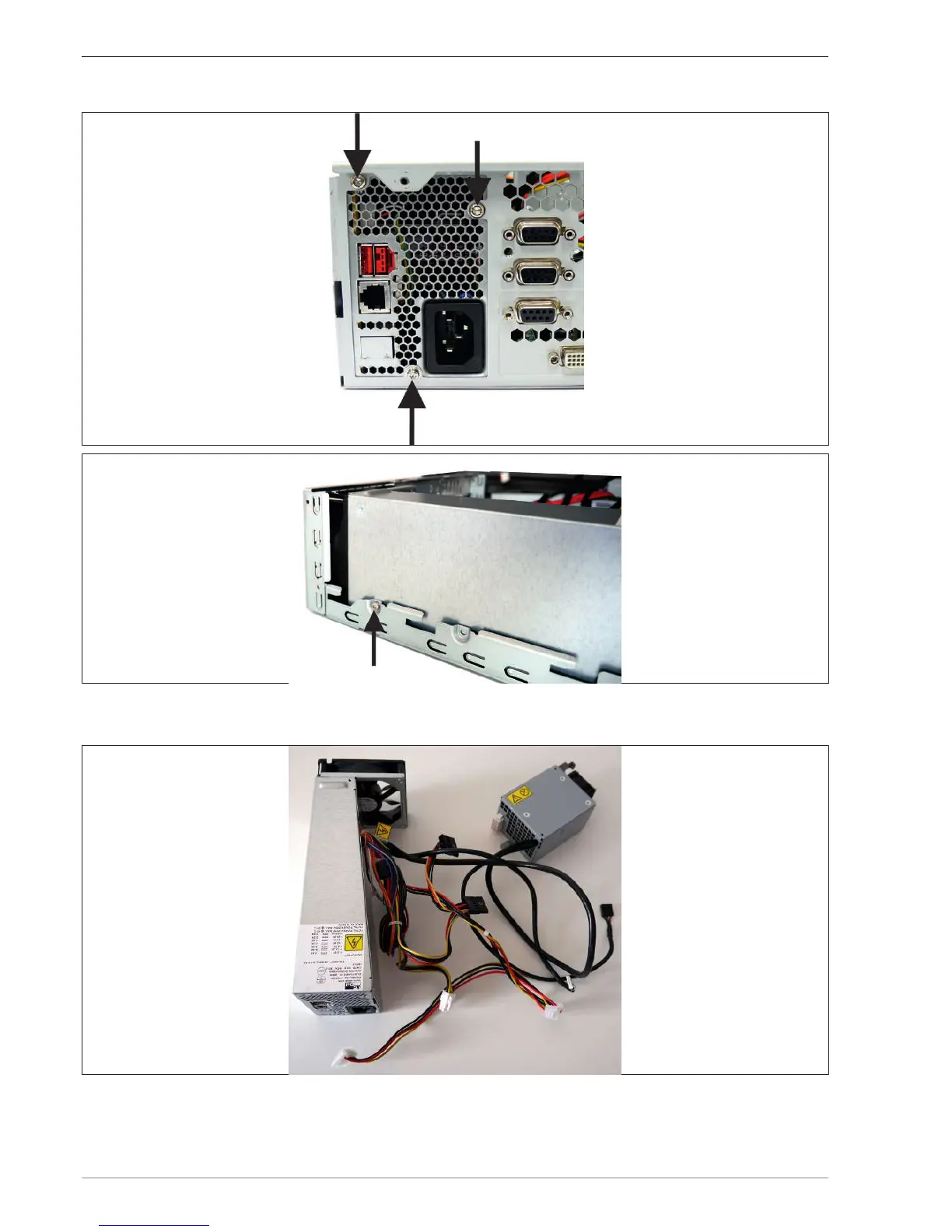

Remove three screws on the rear side and one on the side of the BEETLE/M-III.

Remove the power supply unit upwards from the housing.

Assemble the device following the steps in reverse order.
