Changing processors

BEETLE /M-III - Service manual 57

NOTICE

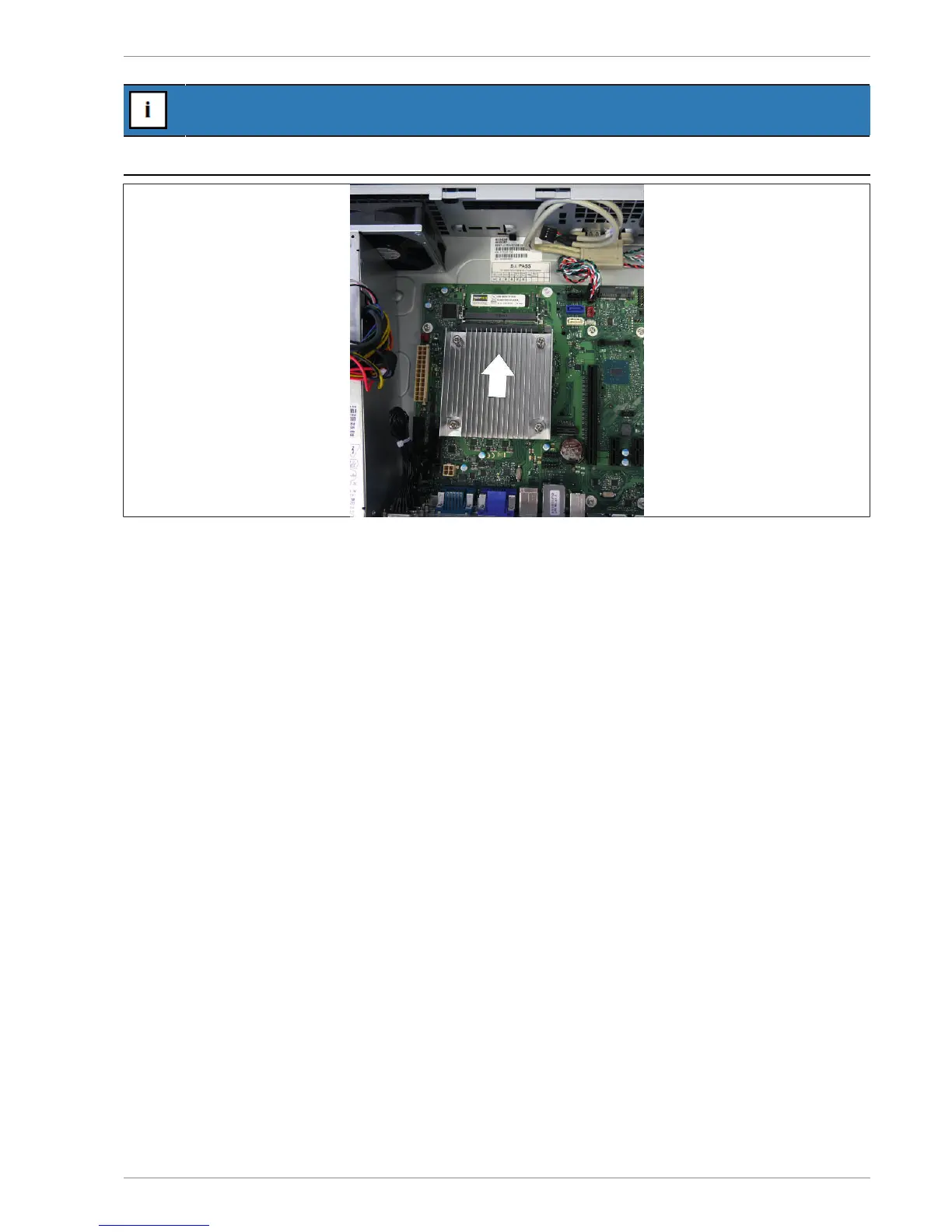

Take care to ensure that the fins are aligned as shown in the photograph (parallel to the power supply unit).
