Replacing COM5 and COM6 interface

68 BEETLE /M-III - Service manual

Plug in the two interface plugs on the motherboard.

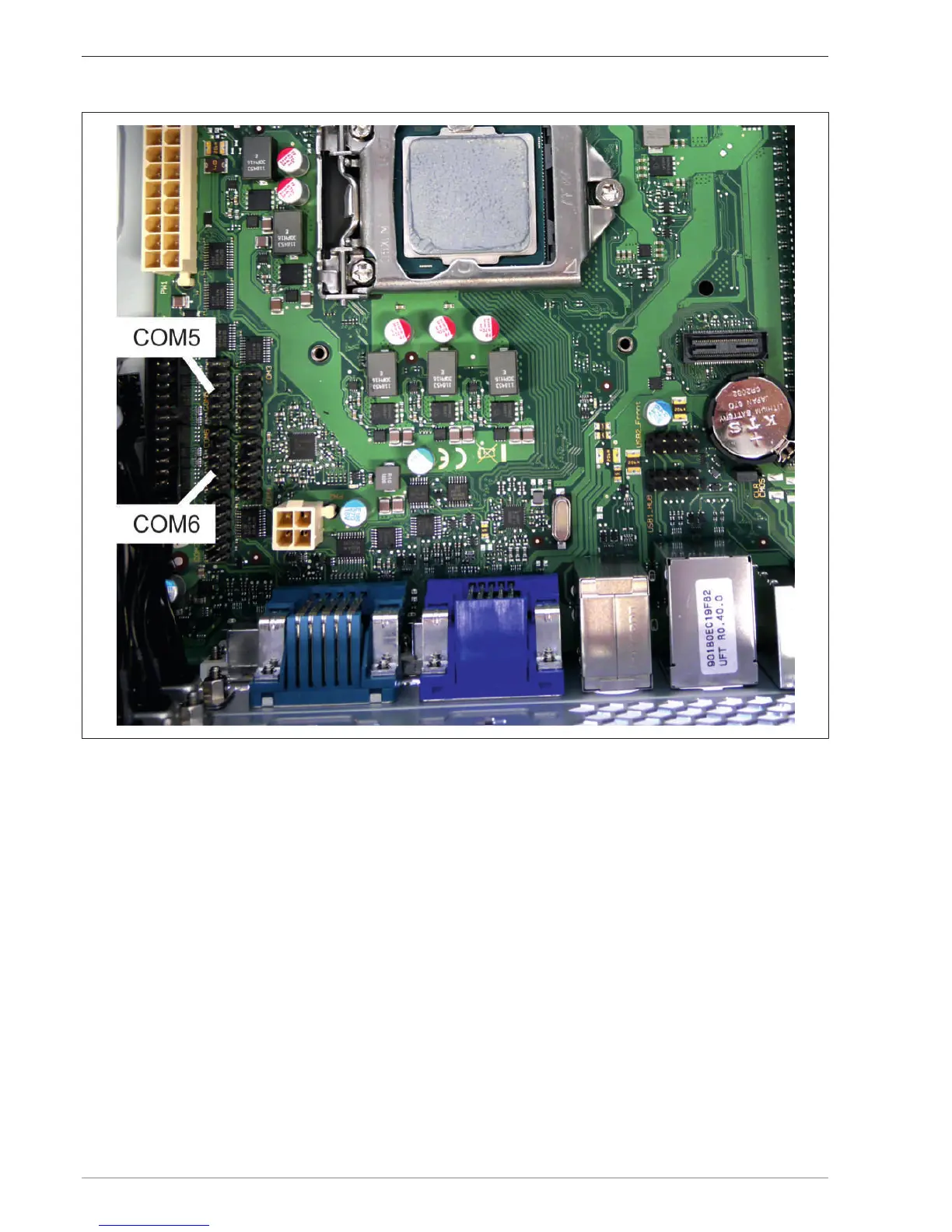

Illustration5: for a K1/K2 or M1/M2 motherboard
