Using the LPT port
BEETLE /M-III - Service manual 71

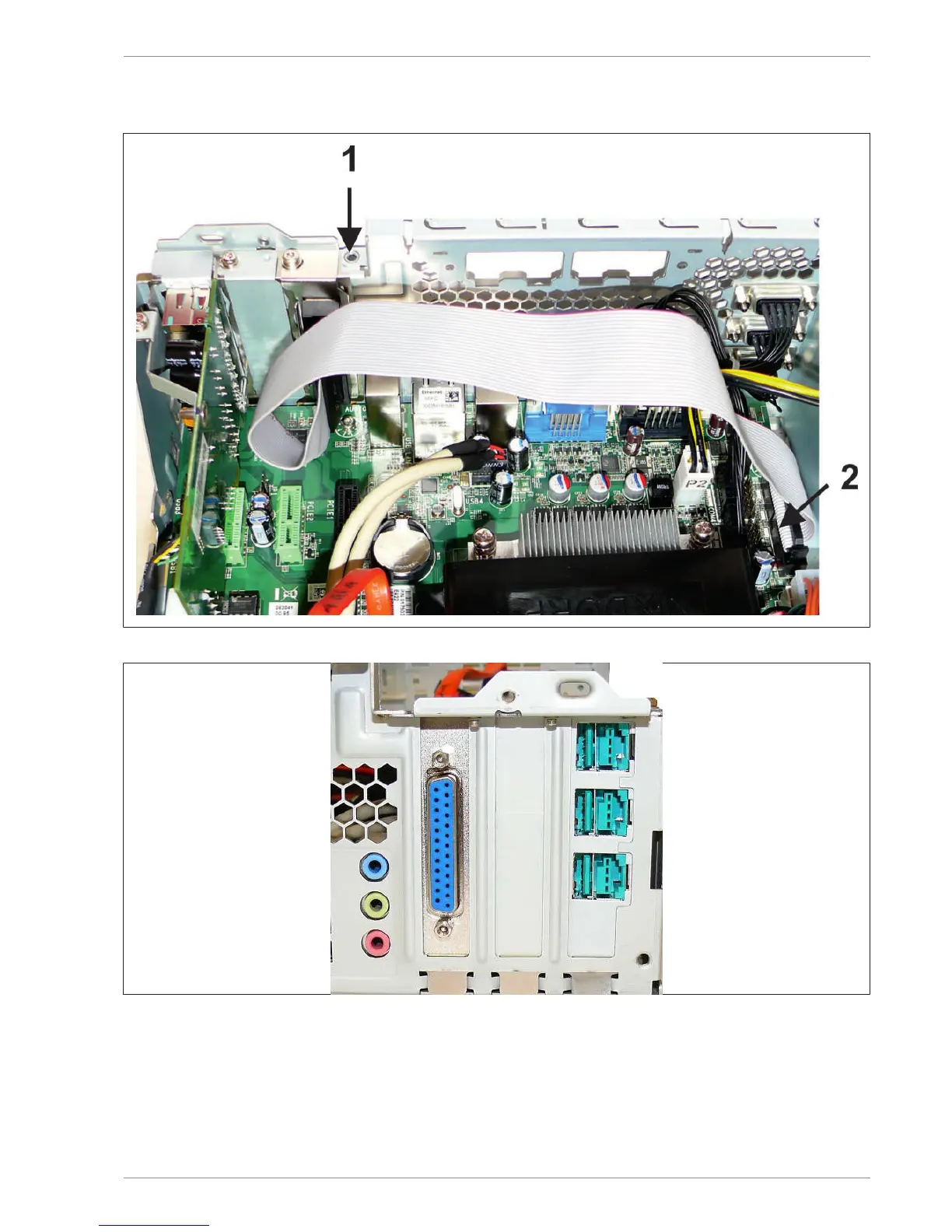

Secure the interface with the previously removed screw (1). Connect the cable of the interface to the
motherboard (2).
LPT-interface in mounted state:
