The Heat Pipe, Air Tunnel & CPU Cont.

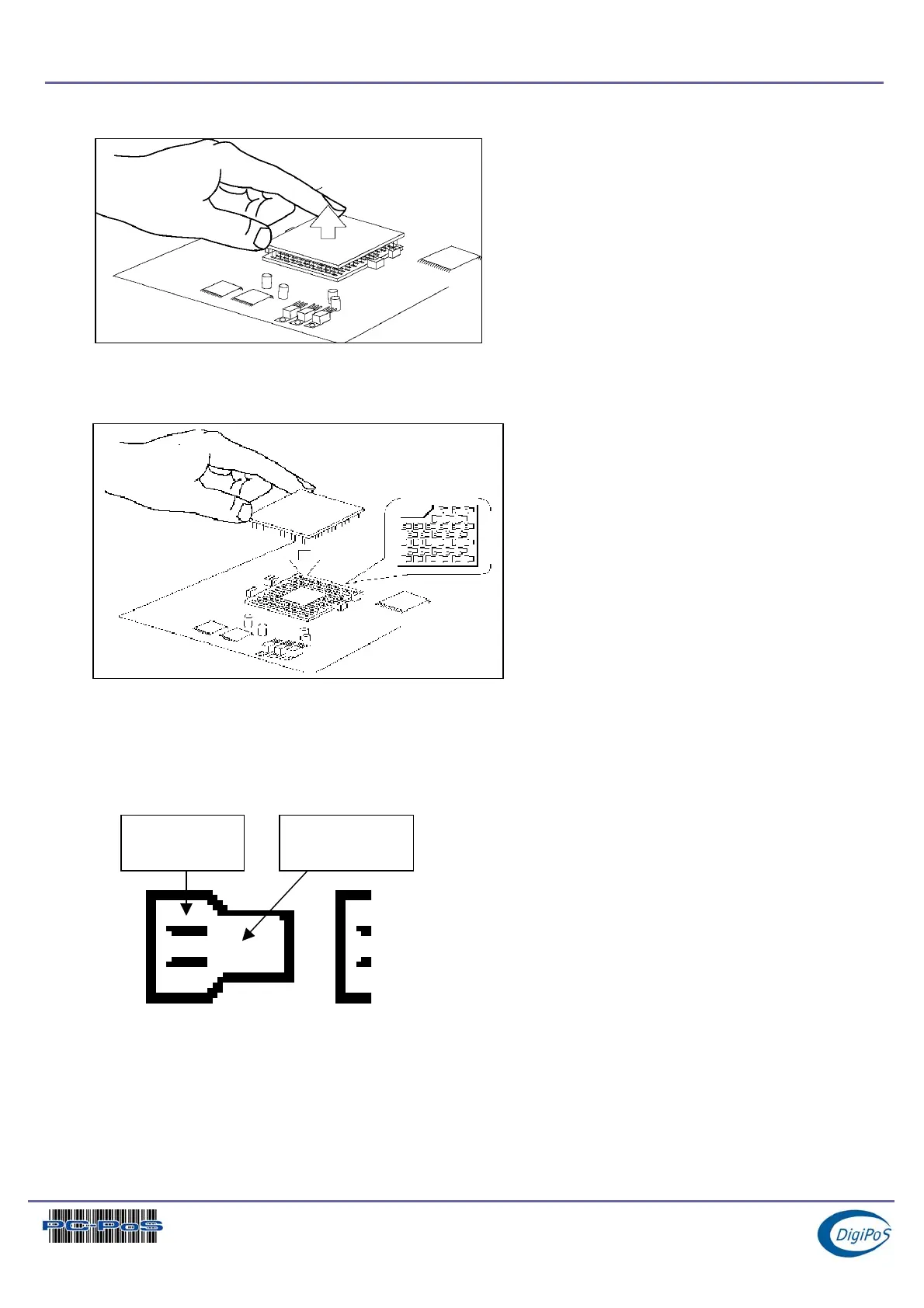

Step 2.
The CPU can now be gently removed.
Since there are extra precautions when re-fitting the CPU, the following steps will take you
through how to correctly fit the Socket 370 FC-PGA CPU.
Step 1.
Align your CPU by matching the blunt
corner of the processor with the
corresponding distinctive pinhole
arrangement in the socket.
Step 2.
After aligning the CPU, make certain the pins on your Pentium processor match up with
the non-gold coated pinhole area as shown on the enlarged detail below.
Non-gold
coated area
Gold-
coated
