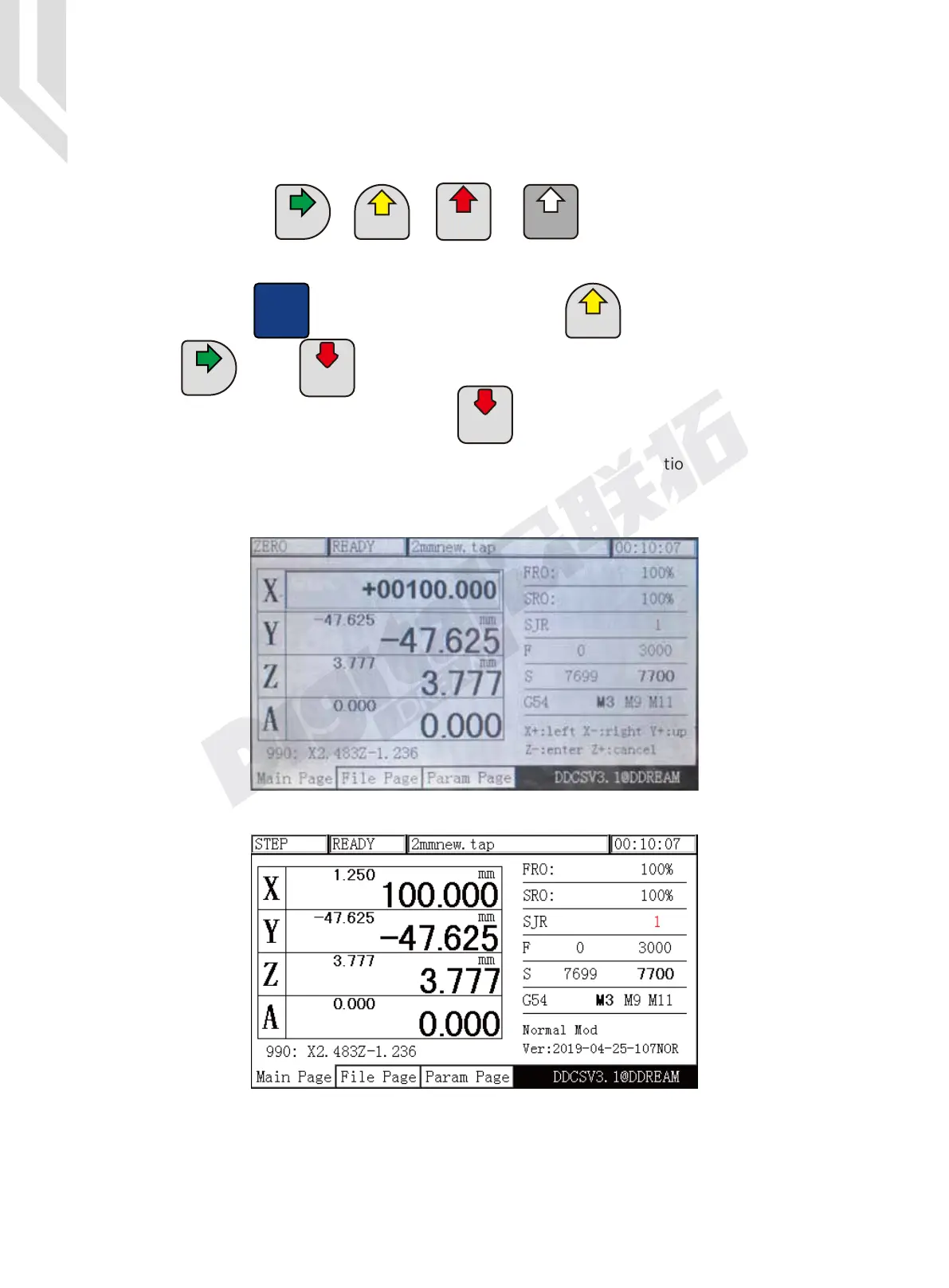

Figure 3-47 In Zero X axis put the the number as 100
Figure 3-48 Set the current X Axis position as 100 in current coordinate
In Zero Mode,there are two options.The users can Zero all Axes ,also can Zero selected single
axis .
Y
+
Y
A: Zero selected single axis:
Press the keys of or or or to select the axis.Lets’s take the X
axis as the example:
After pressing to go to 2nd Mode,and pressing to go to the Zero mode,then
we press the Key to select X axis to Zero X axis,an value editing window will show
up as Figure 3-47.If just press the enter key ,will just Go to Zero.If put in a number,for exam-
ple 100,then confirm and press Enter,the system will set the current position of X axis is 100 in
current coordinate sytstem,see Figure 3-48.
A
+
A
SELECT
X+
X
X+
X
Y
+
Y
HOME
Z
-
ENTER
HOME
Z
-
ENTER
Z
+
Z
CANCEL
Shift
