NIC Quick Reference Guide
19

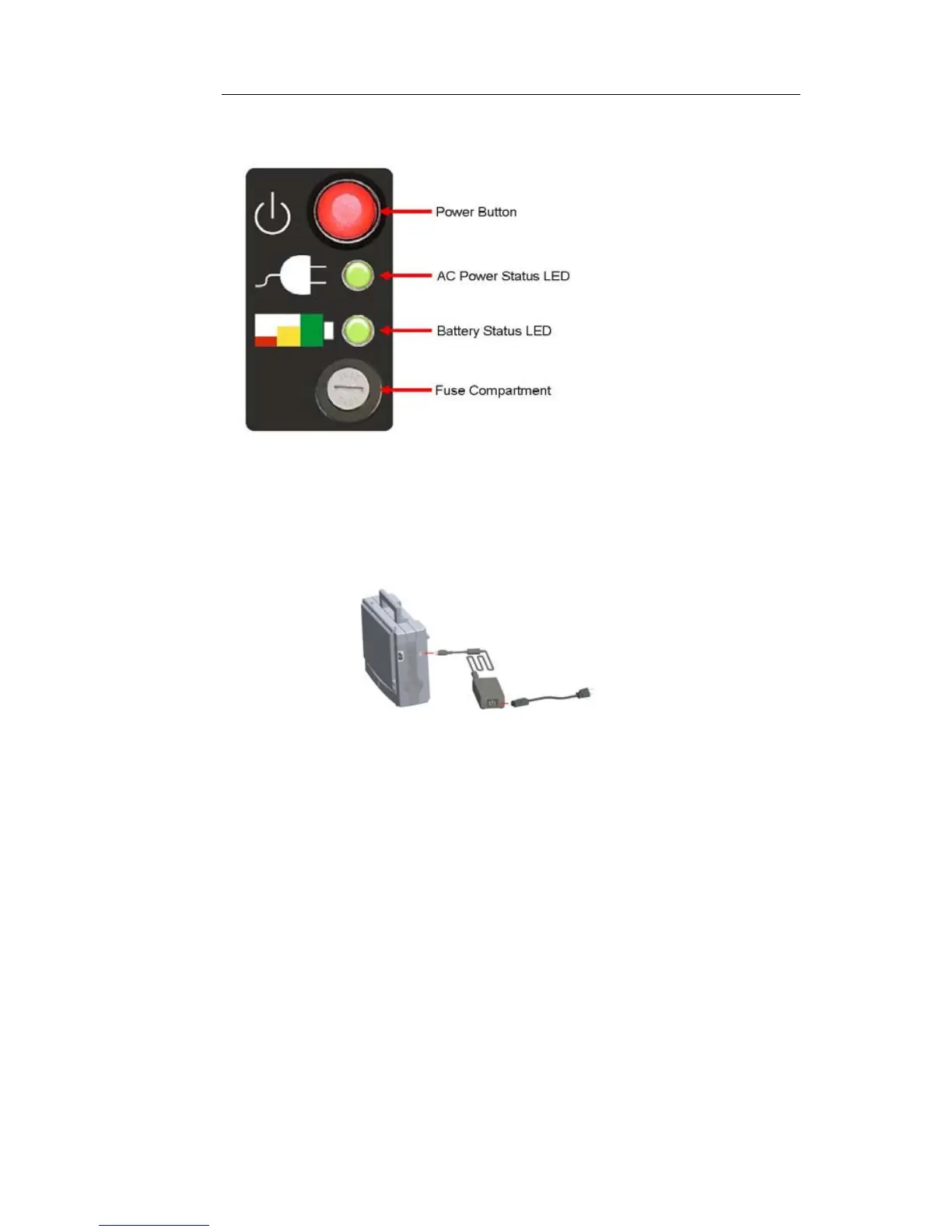

NIC BP Power Module
Recharging the Battery
• An external AC power supply is provided with every NIC BP
unit, along with a standard power cable
• Use only the external AC power supply provided by Digital
Lightwave with the NIC BP
• For international use, a power cable applicable to that country
can be substituted; use an HO5VV-F power cord with a 1-mm
2
,
two conductor plus ground, IEC 320 connector on one end, and
a wall-socket plug on the other end that is certified for use in
the country of installation. The entire cordset must be certified
for use in the country of installation.
• The NIC BP's power entry connector is located on the upper
right-hand side of the NIC BP chassis
• The AC Power Status LED on the faceplate will illuminate
green, and the battery will recharge whether the NIC BP is on
or off
• Battery charge time (unit on): 2-6 hrs. depending on configura-
tion
