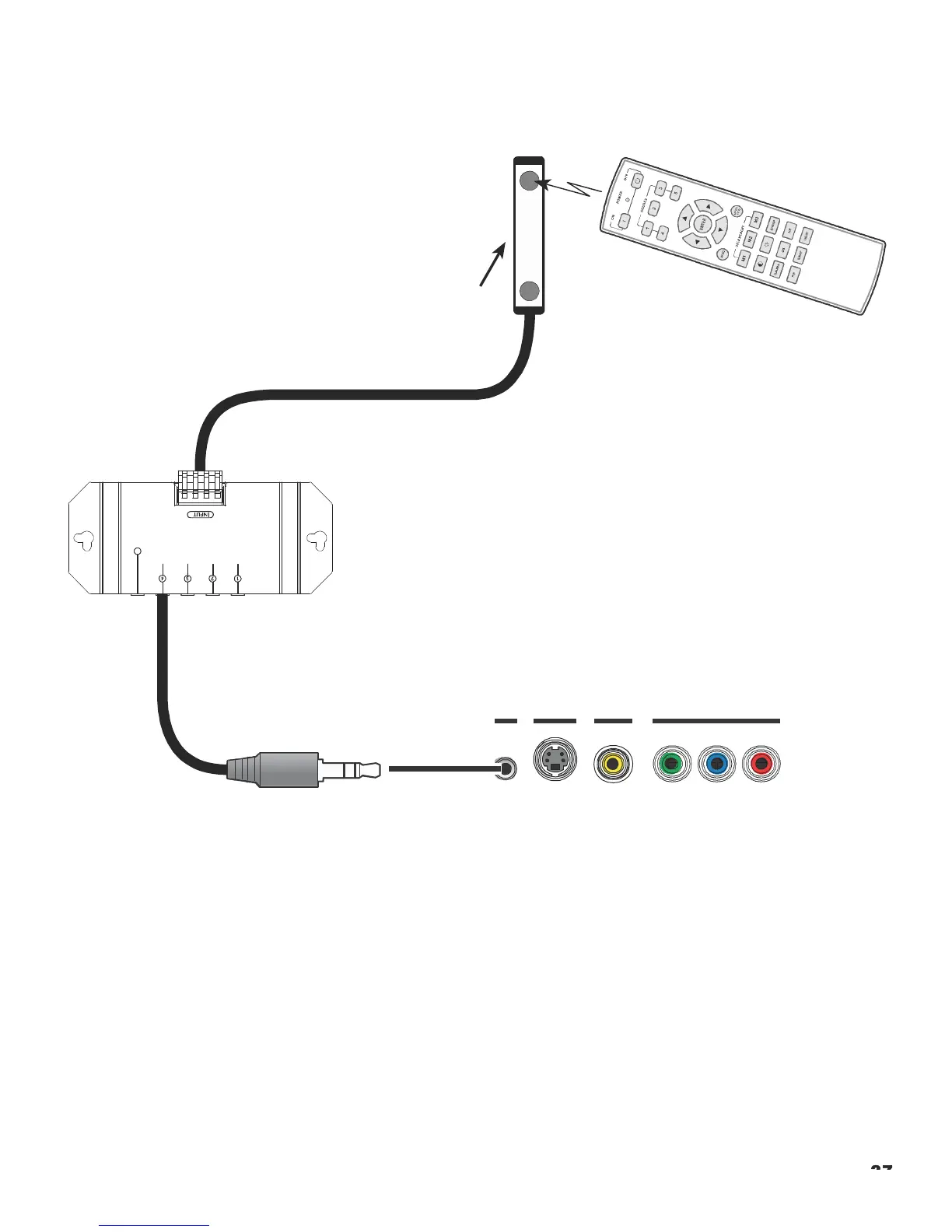

Connecting an External IR Receiver
If infrared signals from the remote control cannot reach the projector due to excessive distance or obstructions such as
walls or cabinet doors, you can connect an external IR repeater system to the IR INPUT on the projector to extend the
range of the remote control. See Figure 3-13.
IR
Sensor
IR
Repeater
Remote
Control
(
3
.
5-
mm
,
m
i
n
i
phono plug)
IR
INPUT
S-
VIDEO
VIDEO
COMPONENT
1
- SCART
Figure 3-12: External IR Receiver Connection
Connecting to AC Power
The projector ships with one AC power cord. If you need a different cord, find one that is appropriate to your locate that
has a IEC Female plug to interface to the projector side. Plug the female end of the power cord into the AC receptacle
on the rear of the projector (AC 100V ~ 240V); see Figure 2-3. Then, connect the other end to your AC power source.
