Advanced
Use the controls in the Advanced menu, shown in Figure 4-8, to perform advanced image adjustments.

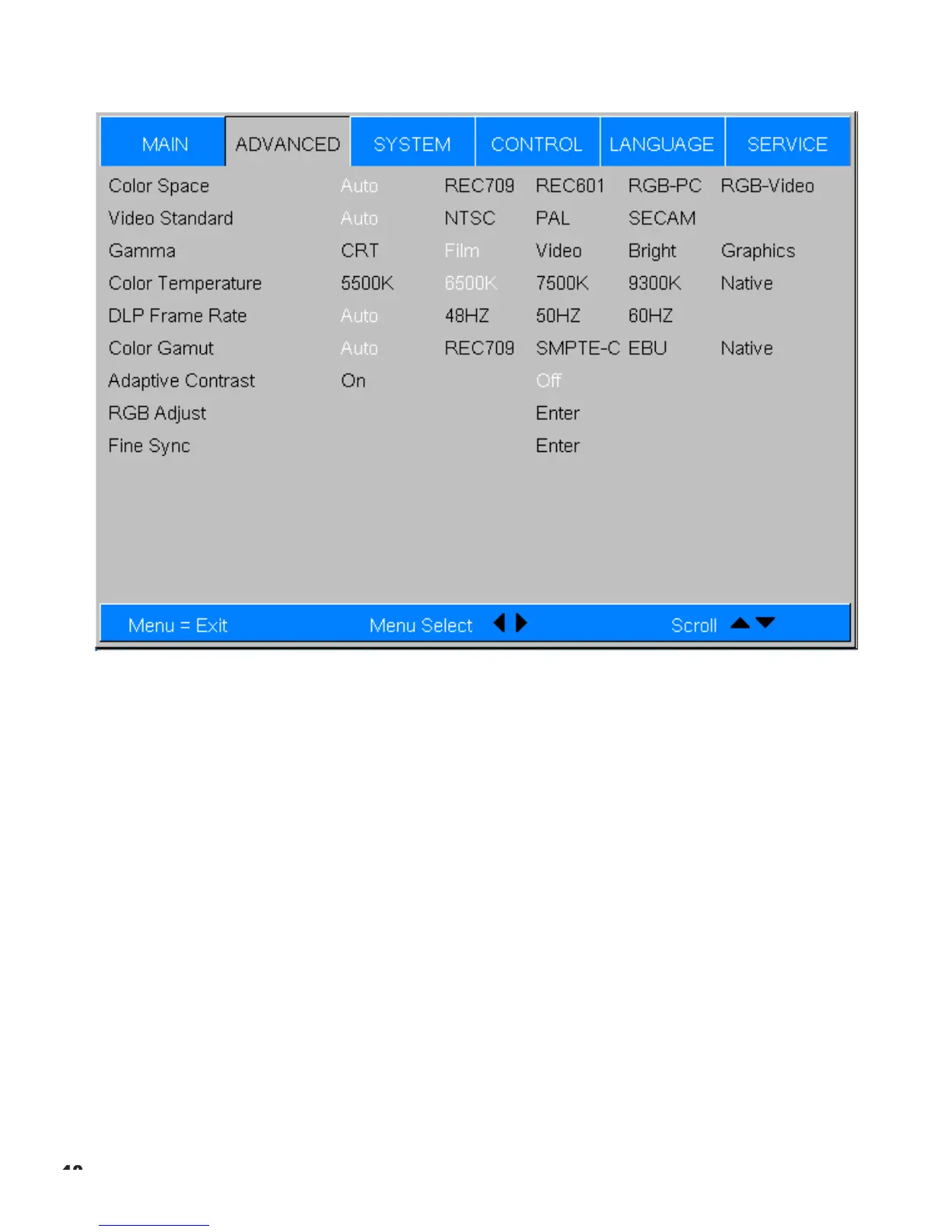

Figure 4-8: Projector Advanced Menu
Color Space: Select Color Space from the Advanced menu to choose the color space of the source signal for HDMI,
RGB, and component connections.
• The default setting, Auto, functions as follows:
• HDMI: If the Auxiliary Video Information (AVI) infoframe contains color space and/or range data, the projector
uses that information. Otherwise, for RGB sources, the projector uses the RGB-Video color space. For compo-
nent SDTV and EDTV resolutions, REC601 is used. For other component video resolutions, REC709 is used.
• RGB: If Hsync or Vsync signals are present, the projector uses the RGB-PC color space. Otherwise, REC601 is
used for SDTV and EDTV sources, and REC709 for all other sources.
• Component: For SDTV and EDTV resolutions, the projector uses the REC601 color space. For all other resolu-
tions REC709 is used.
In most cases, the Auto setting determines the correct color space to use. If it does not, you can force the projector to
use a specific color space. Choose one of the following:
• REC709 sets the color space matrix to that defined in ITU-R BT.709.
• REC601 sets the color space matrix to that defined in ITU-R BT.601.
• RGB-PC uses RGB color space and sets black at 0,0,0 RGB and white at 255,255,255 RGB, assuming an 8-bit im-
age.
• RGB-Video uses RGB color space and sets black at 16,16,16 RGB and white at 235,235,235, assuming an 8-bit
image, to correspond to the luminance values defined in digital component standards.
To Next Page
