HDMI
1
HDMI
2
1
RG
B
Y Pb
P
r
COMPONENT
2
2
AC
3
4
AC
POWER
I
N
1. HDMI 1 (Digital)
HDMI 2 (Digital)

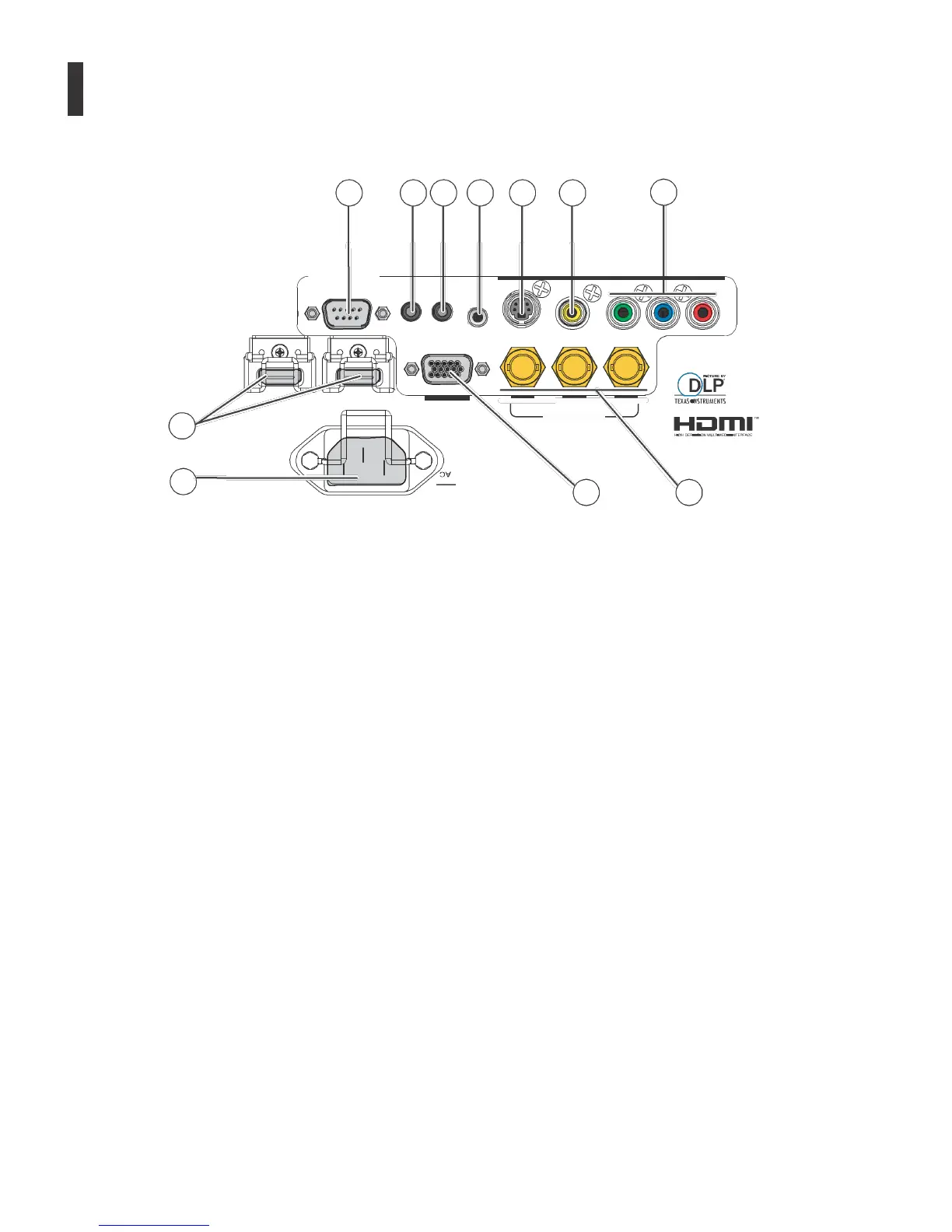

Figure 2-3: Projector Rear Panel
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.
2. POWER INPUT (100 to 240 VAC)
Use power cord to connect the projector and power.
3. RGB
Provides a standard, 15-pin VGA-style connection to either an RGB or component high-definition source, or to a
personal computer. This projector automatically detects the input signal resolution.
4. COMPONENT 2
Three BNCs for connecting component (YPbPr) video sources.
5. COMPONENT 1/SCART (RCA connectors)
Standard- or high-definition (480i/480p/576i/576p/720p/1080i/1080p) Component (YPrPb) input for connecting a
DVD/HD-DVD/BD player, HD set-top box or other SD/HD source. Also provides RGB input for RGBS sources.
6. VIDEO
Standard composite video input for connecting a VCR, laser disc player or other composite video source. Also
provides composite sync input for RGBS sources.
7. S-VIDEO
A standard S-Video input for connecting a DVD player, satellite receiver or Super VHS (S-VHS) VCR.
8. IR INPUT
Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system.
9. TRIGGER 2 (3.5-mm, mini phono jack)
Provides 12 (+/- 1.5) volt switched output for screen relays with 250mA current capacity and short protection.
10. TRIGGER 1
Provides 12 (+/- 1.5) volt switched output for screen relays with 250mA current capacity and short protection.
11. RS-232
A female, 9-pin D-sub connector for interfacing with a PC or home theater automation/control system.
12
CONTROLS AND FUNCTIONS
