DINO 240RXT
17
3. Outreach range and overload protection switch
The safety limit switches prevent overloading of the lift.
At a predetermined position the outreach limit switch RK4 stops extension of the telescope and
lowering of the boom.
The overload limit switch RK5 backs up if the RK4 for some reason does not work.
The red light starts flashing as the RK4 stops the movement. While the red light is flashing, the lift can
be operated in the direction where it stays inside the allowed outreach area.
The overload limit-switch RK5 backs up the operation of the RK4. At the same time the buzzer is
switched on.

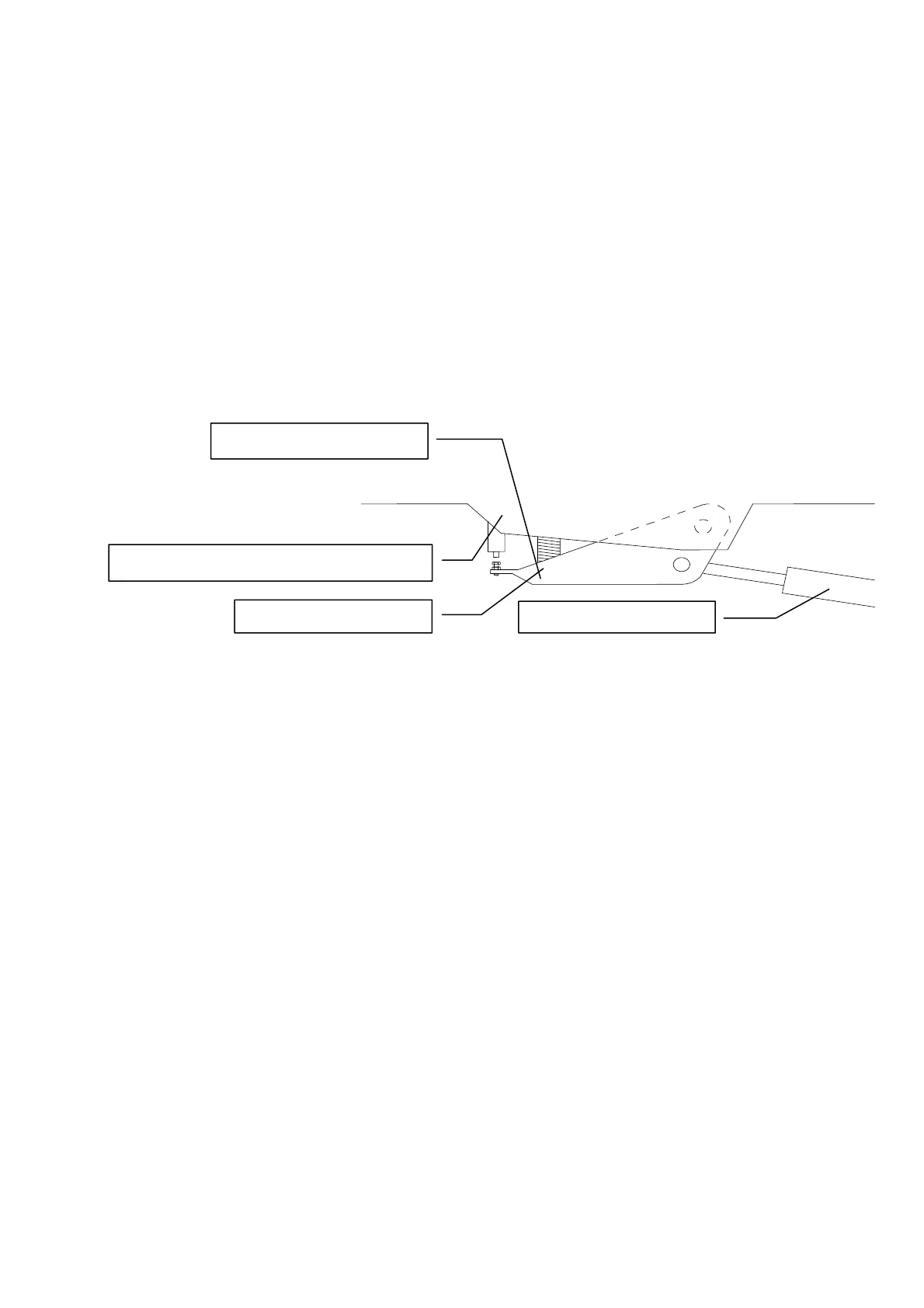

PRESSURE SPRING
LIMIT SWITCHES RK4 AND RK5
ARTICULATED ARM LIFTING CYLINDER
4. As the emergency stop button is depressed all movements stop and the power unit is turned off.
The emergency stop pushbutton must be pulled up before starting the power unit.
Check operation of the safety devices!
