17.7.3 ADJUSTMENT OF OUTREACH LIMIT SWITCH (RK4) AND THE OVERLOAD LIMIT
SWITCH (RK5)

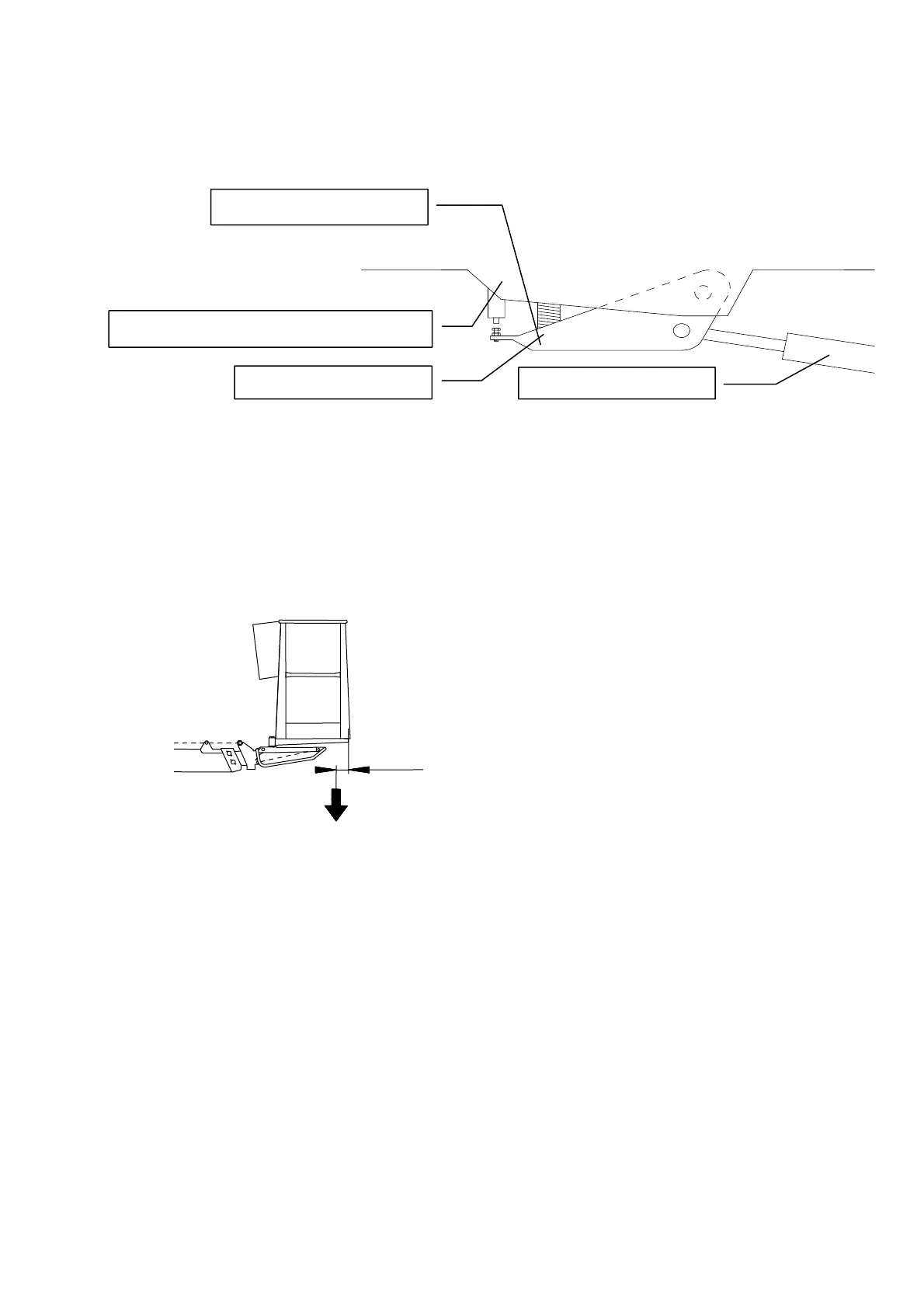

PRESSURE SPRING
LIMIT SWITCHES RK4 AND RK5
ARTICULATED ARM LIFTING CYLINDER
Always check the operation of both limit switches in connection with the service.
Put a carefully weighed load (80 kg) on the platform. Place it at a distance of 100 mm from the rear edge
of the platform.
80 kg
PLATFORM LOAD
Drive the boom to a horizontal position from the chassis control panel.
100 mm
