Dinolift 240RXT - Testing the Outreach Limit Switch (Rk4)

DINO 240RXT
49
Now:
- the lifting of the boom should be operational - the lowering of the boom must NOT be
operational
- the retraction of the telescope should be operational - the extension of the telescope must NOT
be operational
17.7.1 TESTING THE OUTREACH LIMIT SWITCH (RK4)

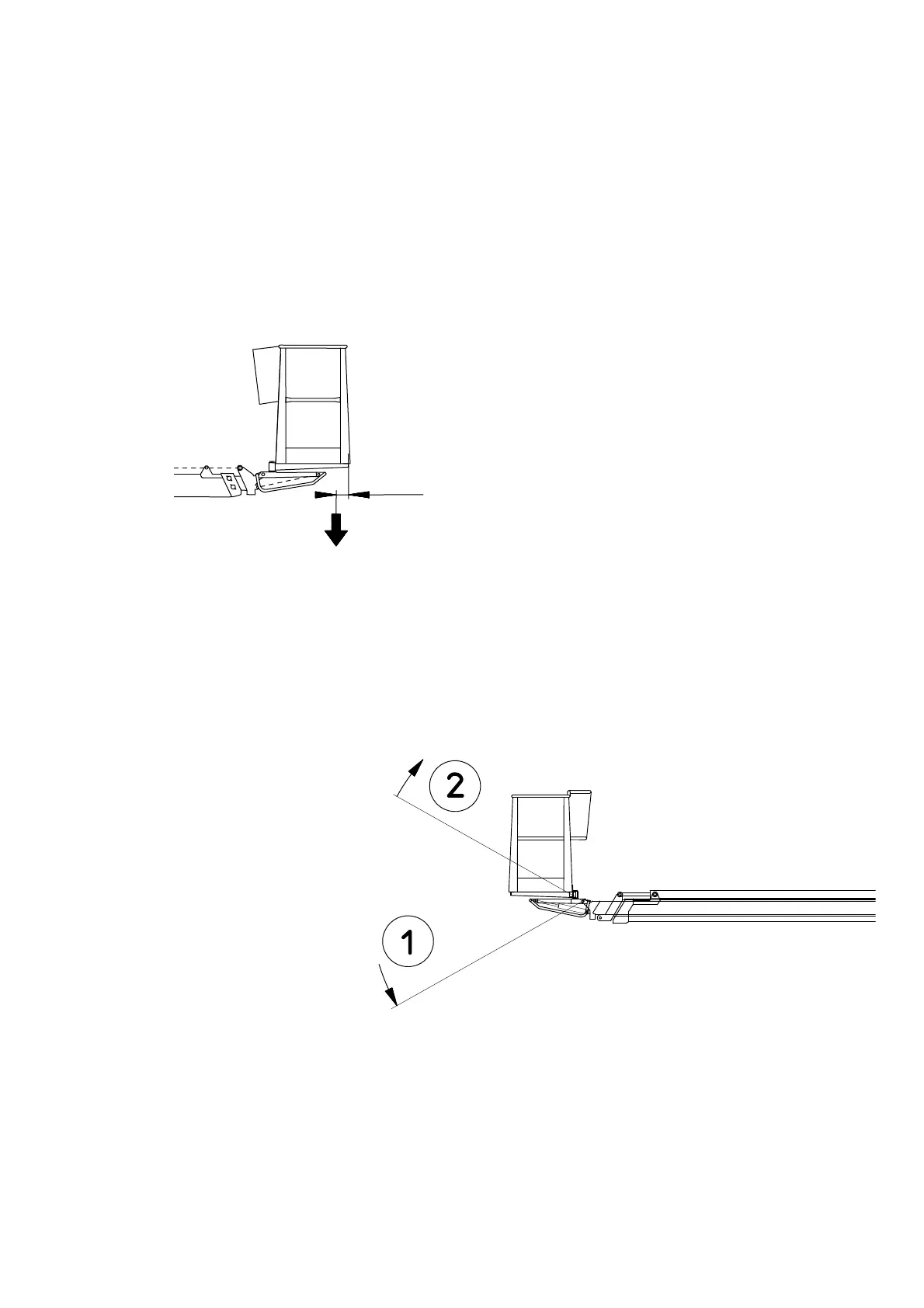

Put a carefully weighed load (80 kg) on the platform. Place it at a distance of 100 mm from the rear edge
of the platform.
80 kg
PLATFORM LOAD
Drive the boom to a horizontal position from the chassis control panel.
Lift and lower the rear edge of the platform using the position control.
1. Lowering the rear edge of the platform
2. Lifting the rear edge of the platform
Drive the platform with the position control to a horizontal position so that that the last stage of the
adjustment procedure is lifting of the rear edge.
100 mm
