DINO 240RXT
48

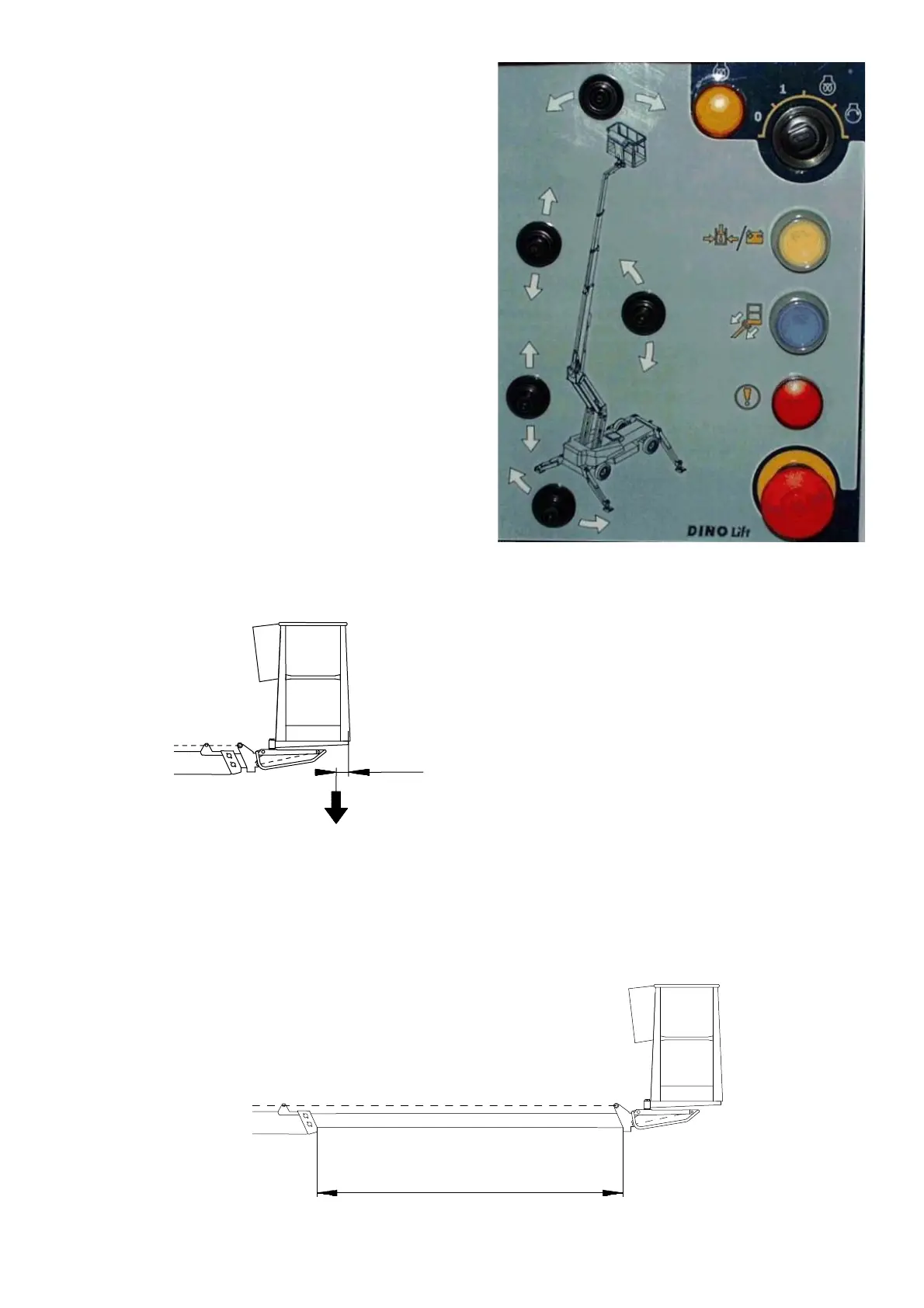

9. Operation of the safety devices while they are
controlled from the chassis control panel
- lift the platform slightly up from the transport
position
- the support outriggers must not work
- lift the boom and test the following:
1. emergency stop
2. emergency descent:
- retraction of telescope
- lowering of articulated arms
- lowering of boom
- bring the boom to the transport position and raise
the outriggers
- the boom must not operate
- lower the outriggers (bring the lift to a level
position)
- put a load of about 80 kg onto the work platform
80 kg
PLATFORM LOAD
- lift the boom and extend the telescope
The movement stops as soon as the red outreach limit signal light lights up (at max. outreach).
STROKE
100 mm
