DINO 240RXT
9
4 TECHNICAL SPECIFICATION
Max. working height 24 m
Max. platform height 22 m
Max. outreach 12.1 m
Boom rotation continuous
Platform rotation 90°
Turn area refer to reach diagram
Support width 4.0 m / 4.4m
Transport width 1.98 m
Transport length 6.65 m
Transport height 2.29 m
Weight 4,250 kg
Max. allowed load on platform 215 kg
Max. number of persons + additional load 2 persons + 55 kg
Max. allowed sideways load (caused by persons) 400 N
Max. lateral inclination (chassis) ±0,5°
Max. wind speed during operation 12.5 m/s
Min. ambient temperature when working -20 °C
Max. support force on the outriggers 25,000 N
Platform size 0.7 x 1.3 m
Gradeability 35%
Power supply:
- combustion engine (Diesel) 18.5 kW (24.8 hp)/ 2800 r/min
- sound pressure level 98 dB
- mains current (optional) 230V / 50Hz / 16A
- sound pressure level under 70 dB
Socket outlets on the platform 230V / 50Hz / 10A

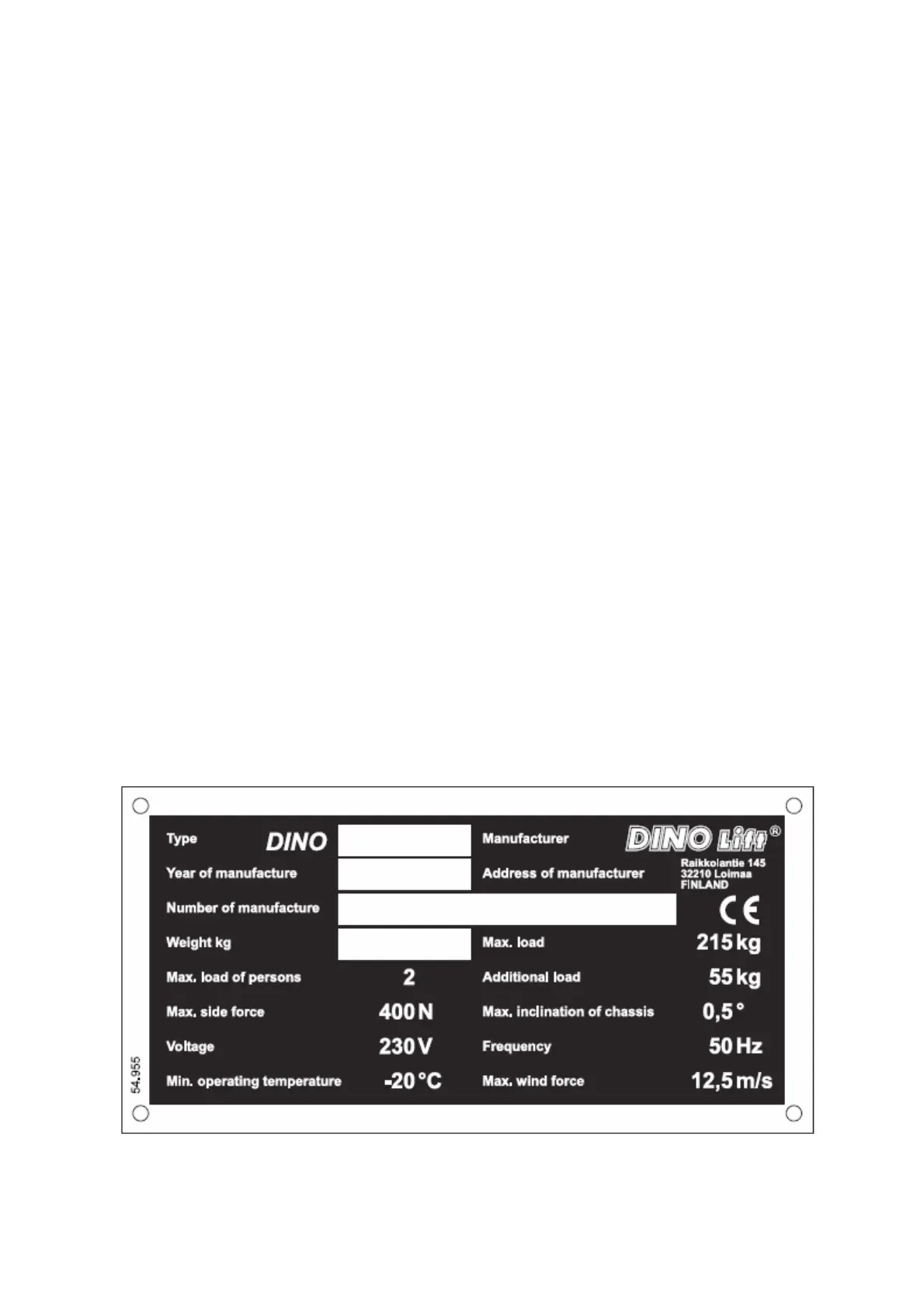

4.1 Example of the machine’s nameplate
