4 Configurations on Web Interface
DAG2000-24/32SUser Manual
Copyright©2011-2020 Dinstar
33

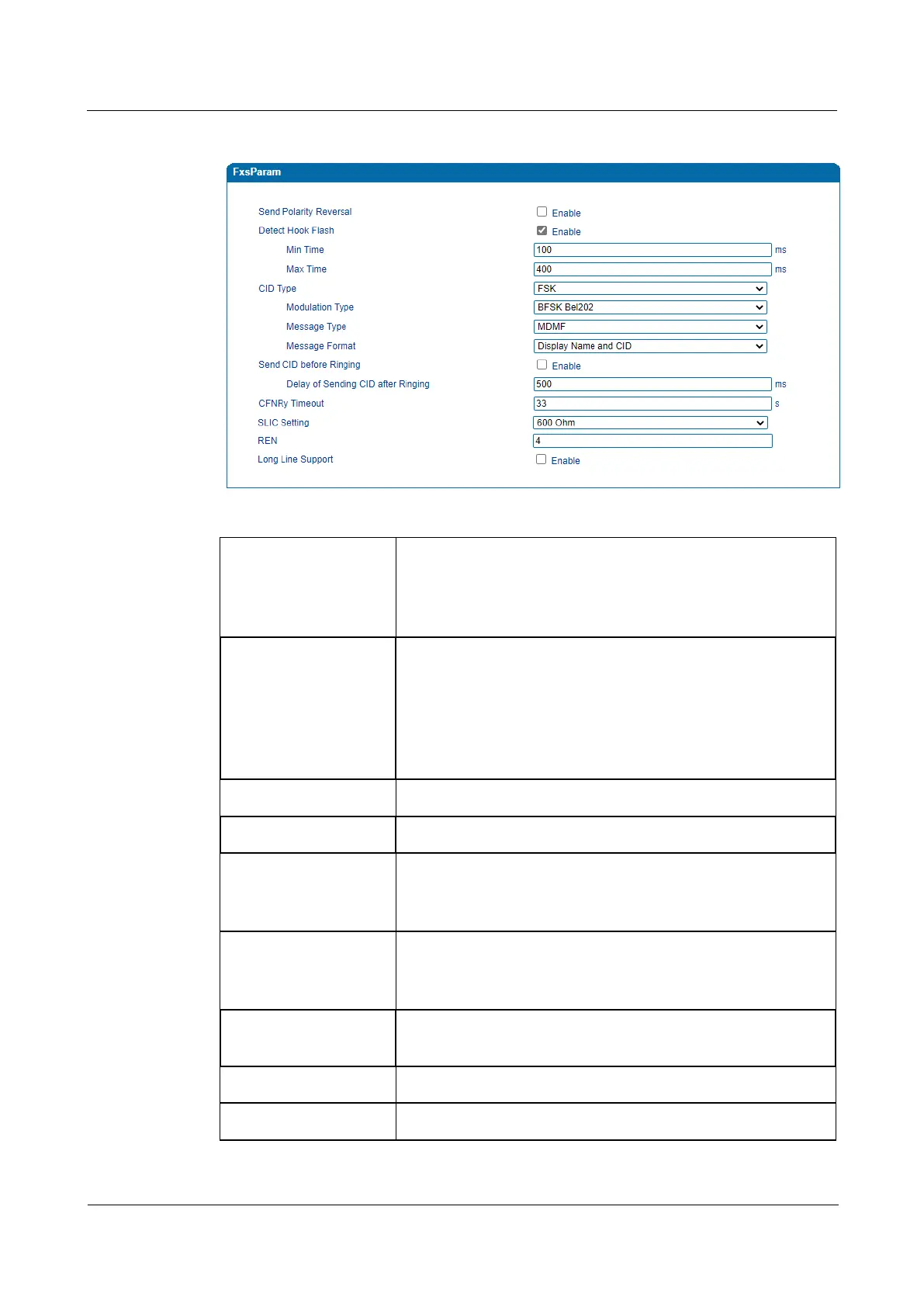

Figure 4-15 Configure FXS Parameters
Table 4-5 Explanation of FXS Parameters
Send Polarity Reversal
If polarity reversal is enabled, call tolls will be calculated based on
the changes in voltage. If polarity reverse is disabled, you need to
set the time for offhook detection and call tolls will be calculated
starting from the set time.
Detect Hook flash
If ‘Detect Hook Flash’ is enabled, you need to set a minimum time
and a maximum time. If a phone’s hook flash is pressed for a time
period greater than the set minimum time but less than the
maximum time, the action is considered as a ‘hook flash’ operation.
If a phone’s hook flash is pressed for more the set maximum time,
the action is considered as ‘hang up the phone’.
CID Type There are two CID types, namely DTMF and FSK.
Message Type There are two call display types including SDMF and MDMF
Message Format
The call display format in analog phone. It can be “Display Name
and CID”, “CID only”, or “Display Name only”; default value is
“Display Name and CID”
Send CID before Ringing
If this parameter is enabled, the device send Caller ID to phone
before ringing, otherwise the caller ID will be displayed after
ringing.
Delay of sending CID
after Ringing
The time how long the caller ID will be delayed when the caller ID
is set to be displayed after ringing. Default value is 500ms.
CFNRy Timeout Timeout for ‘call forwarding on no answer’ service
SLIC Setting Impedance matched with analog phone.
