UC100 User Manual
17
Copyright @ 2011-2015 Dinstar
Belong To
Parameter
Explanation

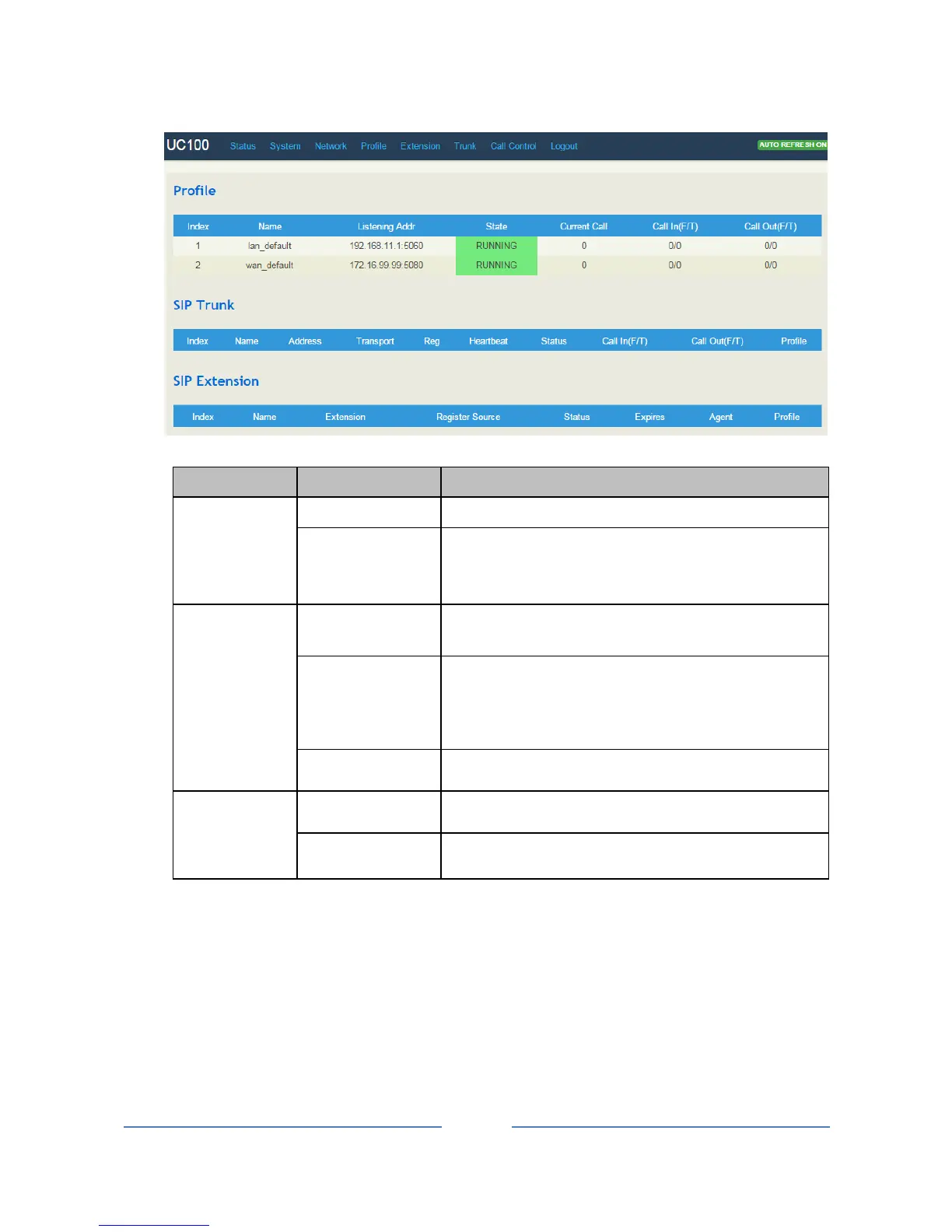

Profile
Listening Address
The current listening address and port of SIP
State
Green color means normal running, while red color means
listening address and port of SIP is unavailable.
There are two states :Running and Down
SIP Trunk
Heartbeat
If heartbeat is enabled, option message will be sent to peer
device (the peer device is reachable)
Status
Green color means available, while red color means
abnormal, unavailable or prohibited.
There are five statuses: Running, Reged/Up, Noreg/Up,
Trying-Down, Fail-Wait
Profile
The profile that is used by the SIP trunk
SIP Extension
Profile
The profile that is used by the SIP extension
Status
SIP extension is registered or not.
There are two statuses: Registered. Unregistered
4.3.3 PSTN
Click Status  PSTN, and the following interface will be displayed. On the interface, information of FXS
port, FXO port and GSM port is shown. Green color means available or registered, while red color means
abnormal, unregistered or prohibited.
