Systems and Equipment - 182 JT40/JT40 All Terrain Operator’s Manual
Pipeloader

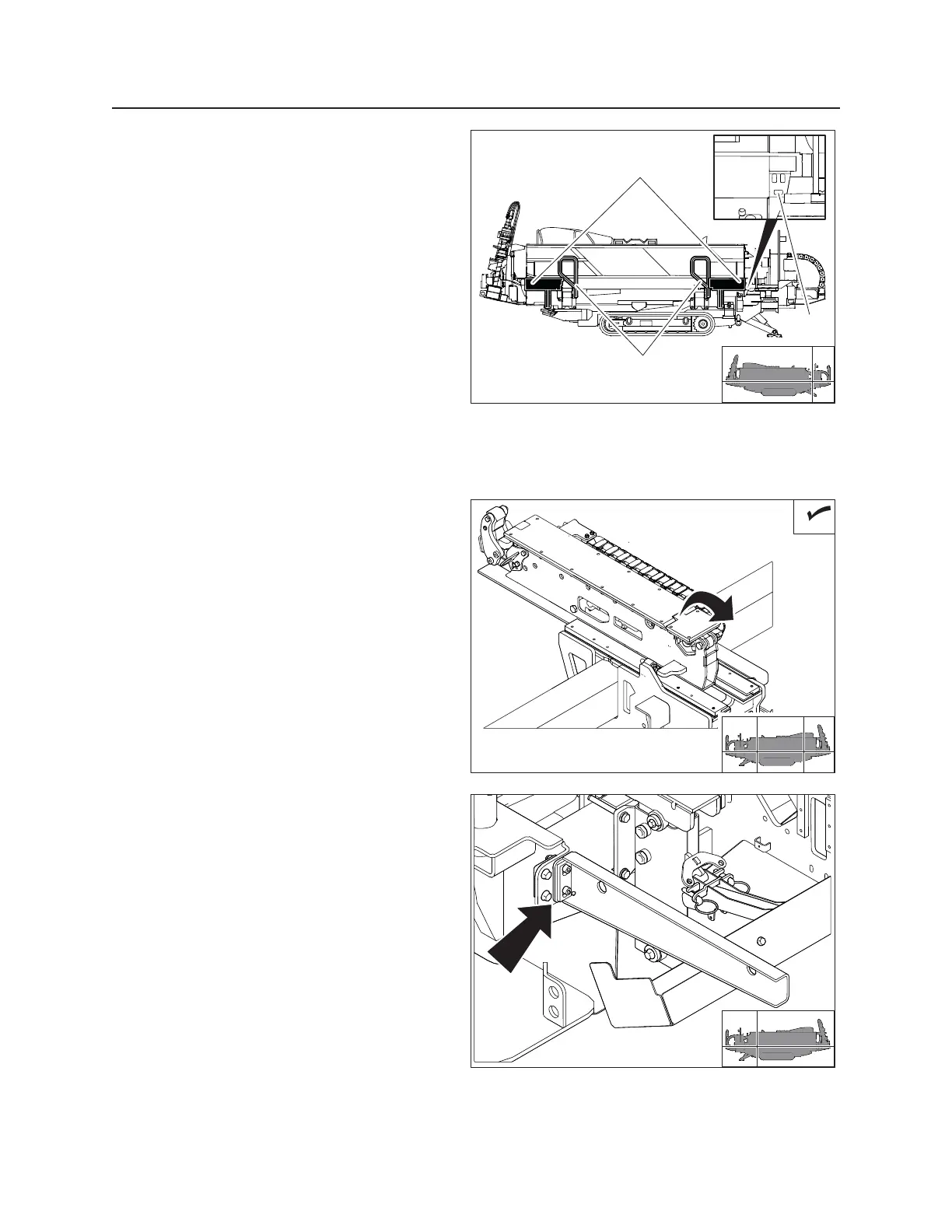

Remove Single Pipe
Unload drill pipe loaded with auxiliary pipe
loaders. Pipe in last row of pipe box can be
unloaded only when all other rows are empty.
1. Ensure last row is selected.
2. Lower shuttle covers (1).
3. Lower lifter covers (2).
4. Press right side of auxiliary pipe load
restricted operating mode switch (3) to
override drill operator control of shuttles
and lifters and move control to single load
switches. See “Auxiliary pipe load
restricted operating mode switch” on
page 73.
5. Move shuttles out fully.
6. Rotate auxiliary pipe loaders into position
as shown.
7. Remove pipe guide (stored on shuttle drive
cover) and attach to front of pipe loader
frame as shown.
8. Raise pipe in last row.
9. Move pipe to auxiliary pipe loaders.
• Move shuttles in.
• Lower pipe into auxiliary pipe loaders.
10. Move shuttles out.
j59om109w.eps
2
1
3
j59om110w.eps
j59om111w.eps
