DITEC DAS200TRF User Manual

44
EN
IP2348EN

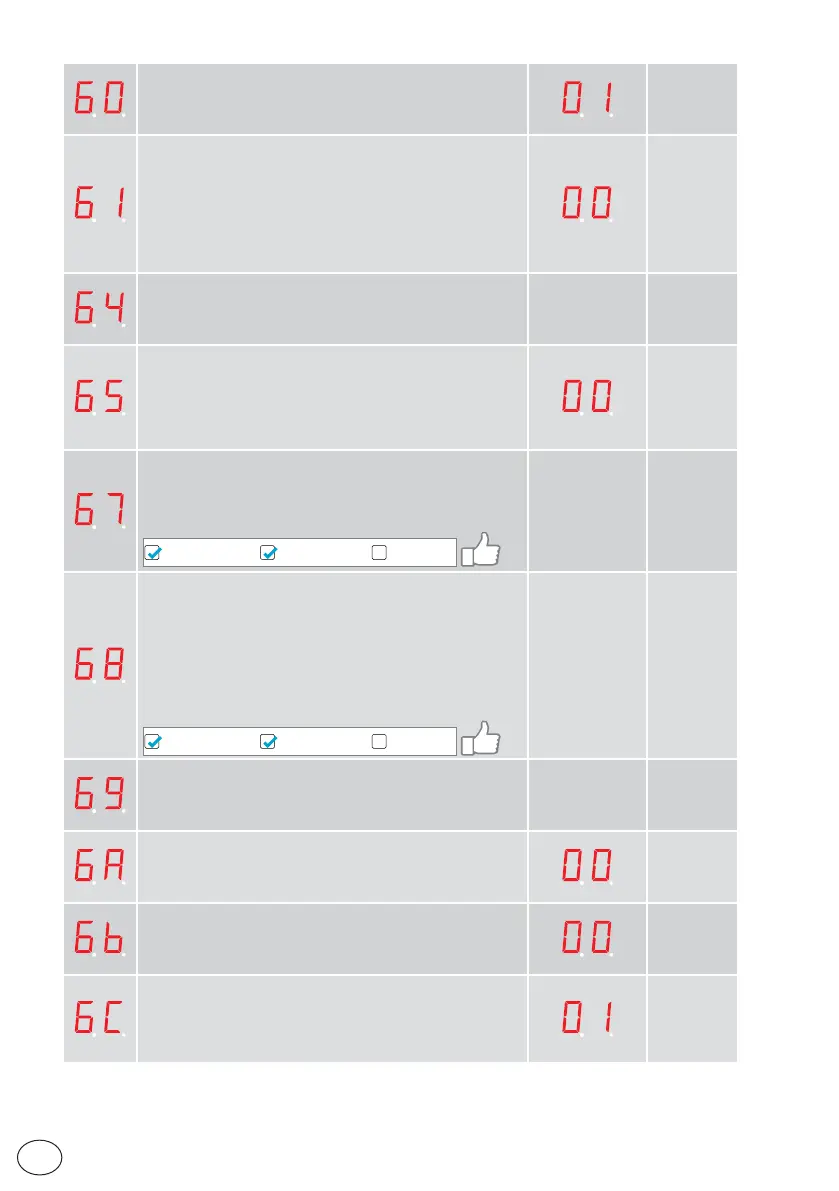

Learn (00÷01)
Sets the possibility to performa learn cycle.
00= Off (It is not possible to perform a learn cycle from MMI).
01= On (It is possible to perform a learn cycle from MMI).
AutoWidth (00÷01)
If this function is selected (01) and the operation mode selection
is AUTO PARTIAL. The door will open from partial open width
to full open width, if an opening impulse is given and the door
has not closed during the time selected in parameter 22 “Auto
Width Activation Time”.
00= Off.
01= On.
Power Supply Type (00÷02)
00= DO NOT USE.
01= 150W.
02= 75W.
AUTOMATIC
Sustainable Drive Mode (00÷01)
The (+) 24 V DC to accessories like sensors is turned off when
the mode selector is in Off and the door is closed. Motor power
is limited to 75W even if parameter 71 is set to a higher value.
00= Off.
01= On.
Door Type (00÷01)
00= single sliding.
01= biparting.
NOTE: If the Configuration Tool CT is used, disable the “learn
access”:
Learn AccessMMI Read accessMMI Write access
TO BE SET
Door weight (00÷60kg x 10)
Will be estimated during the Learn but can also be altered
manually. The weight of the fast wing only is shown.
NOTE: The weight of the door is not automatically learned on
the DAS200TRF, it must be set manually.
NOTE: On DAS200T/TRF set the weight of the fast wing only (2
leafs in the case of a 2 + 2 automation).
NOTE: If the Configuration Tool CT is used, disable the “learn
access”:
Learn AccessMMI Read accessMMI Write access
AUTOMATIC
(not on
DAS200TRF)
Friction (00÷99N)
The friction when moving the door is automatically measured
during a Learn.
NOTE: DAS200T/TRF/TRG not more than 70N.
AUTOMATIC
Interlock Function (00÷01)
It is necessary plus module DAS902MP
00= Off
01= On
Synchronizing Function (00÷01)
Interconnection cable needed.
00= Off
01= On
External Bus Device ID (00÷99)
In a chain of interconnected operators one of them has to be the
main operator. This operator shall have the value 01.
All other interconnected operators shall have different values in
this parameter. This to make every operator unique
