DITEC DAS200TRF User Manual

45
EN
IP2348EN

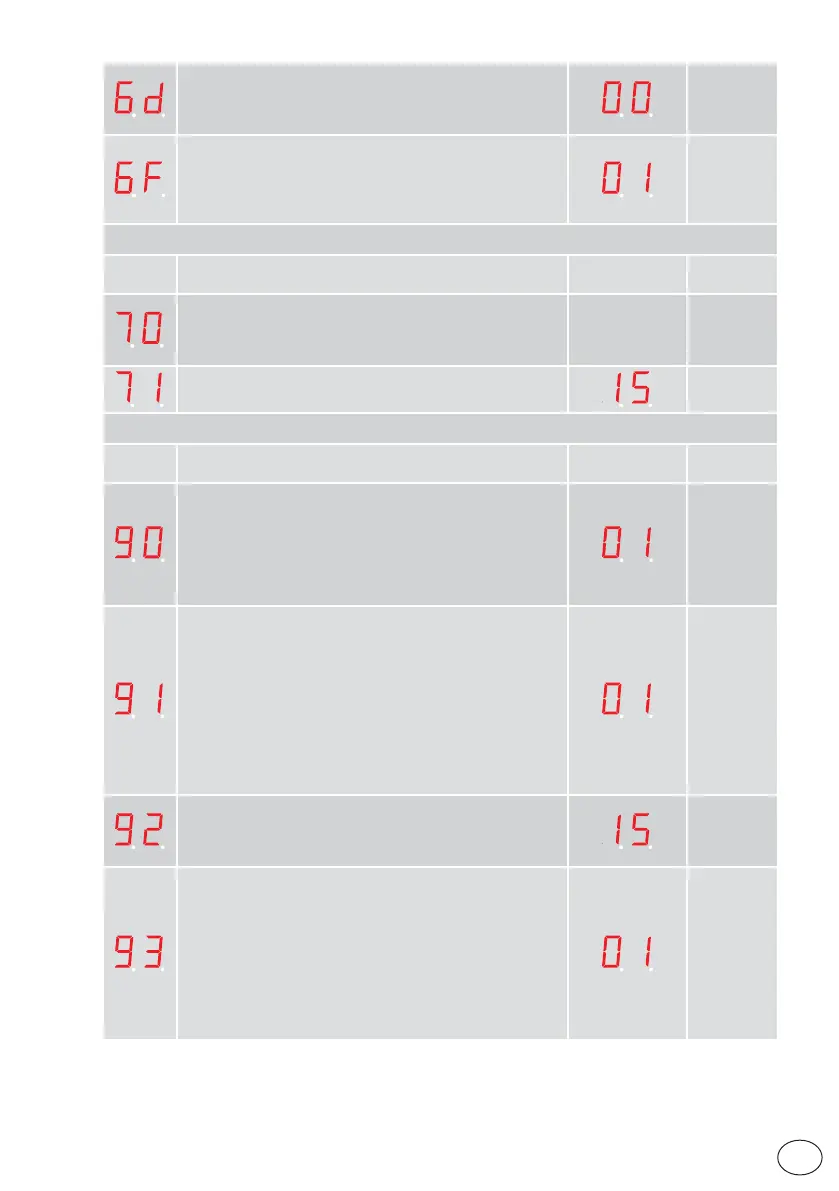

Extended Hold Open Time Function (00÷01)
+ 5s hold open time on doors often reopening during closing.
00= Off.
01= On.
Control unit electronic mode selector group (01÷10)
This parameter groups MCU with OMS. Units with the same value
are in the same group. Units in the same group listens to each other.
NOTE: function not available, do not modify factory setting.
FUTURE USE.
MOTOR CONTROL PARAMETERS
Parameter Description
Factory
setting
Installation
setting
Motor Type (15÷17)
15= DAS200
16= DAS200T / DAS200TRF / DAS200TRG
17= DAS200TRG
FACTORY SET
Max Motor Power (03÷15)
The max amount of power the motor can be supplied with.
DAS902MP PLUS MODULE PARAMETERS
Parameter Description
Factory
setting
Installation
setting
Function Select terminal 3 - DAS902MP (00÷03)
00= NO FUNCTION.
01=
Nurse function. The door will open to partial opening in
operation mode selections EXIT, AUTO and AUTO PARTIAL.
02= DO NOT USE.
03= Interlock out. When configuring for interlock also set
parameter 6A= 01.
Function Select terminal 4 - DAS902MP (00÷04)
00= NO FUNCTION.
01= Open/Close Function. One impulse opens the door the
next impulse closes the door. Available in operation mode
selections EXIT, AUTO, PARTIAL.
02= NO FUNCTION
03= Inner impulse 2 monitoring. Sets inner impulse 2 monitoring
for the second inner impulse on the DAS902MP unit. Set
also parameter 93= 03.
04= Interlock in. When configuring for interlock also set para-
meter 6A= 01.
Open/Close Timeout, terminal 4 - DAS902MP (00÷60 minutes)
The time set in this parameter controls when a door shall start
closing automatically if left open by an Open/Close impulse.
00 min= no automatic closing.
Function Select terminal 2 - DAS902MP (00÷03)
00= No function.
01= Close function. This impulse will immediately close the
door, even during opening, and remain closed as long as
the Close impulse is active. The electro-mechanical lock
will lock the closed door.
May not be used on an escape route door.
02= DO NOT USE.
03= Inner impulse 2. When two inner impulses are to be used.
Sets input to inner impulse 2.
