Phantom 4 RTK User Manual
The Remote Control is set to Mode 2 by default.
Stick Neutral/Mid-Point: Control sticks are in the center position.
Moving the Control Stick: The control stick is pushed away from the center position.
Right StickLeft Stick
Turn RightTurn Left
Up
Down
RightLeft
Up
Down
Turn RightTurn Left
RightLeft
Forward
Backward
Left Stick Right Stick
Forward
Backward
Right Stick
Up
Down
Forward
Backward
Left Stick
Turn RightTurn Left
RightLeft

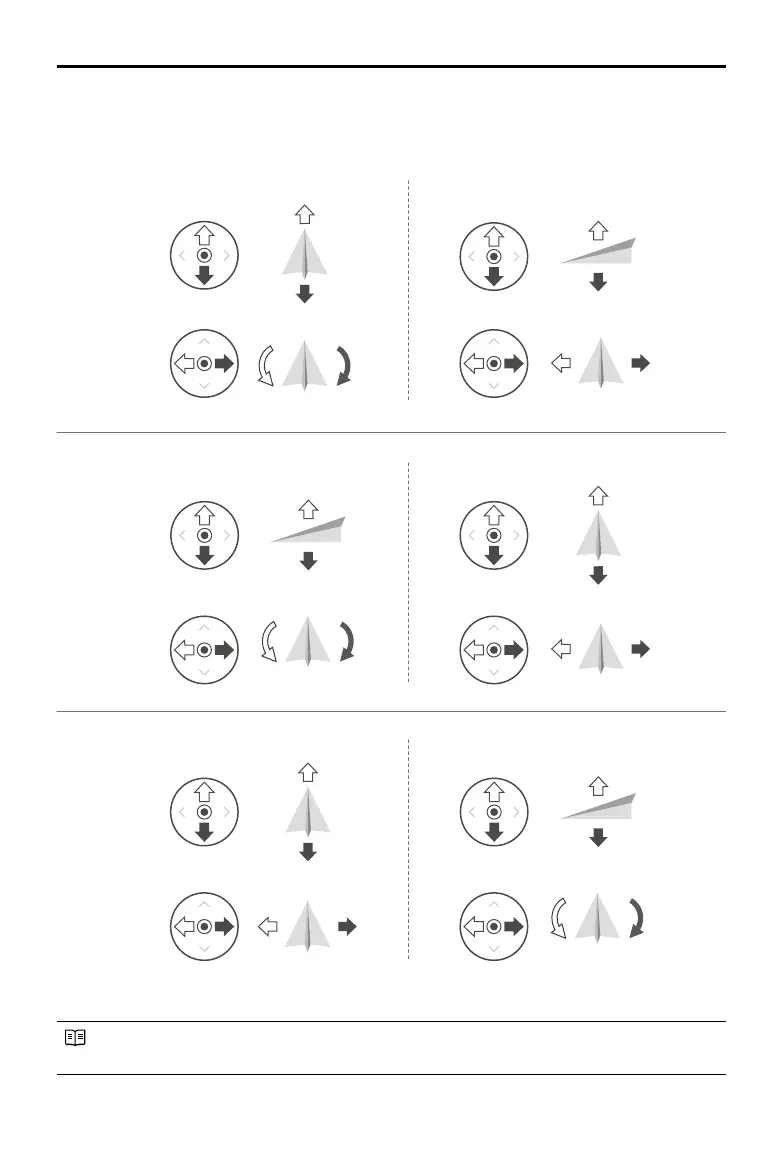

Controlling the Aircraft
This section explains how to control the orientation of the aircraft through the remote controller. Control can
be set to Mode 1 , Mode 2 or Mode 3, or to a custom mode.
Mode 1
Mode 2
Mode 3

dji Phantom 4 RTK Specifications

General

Type	Quadcopter
Product color	White
Construction type	Ready-to-fly (RTF)
Suitable for outdoor use	Yes
Maximum speed	16.1 m/s
Frequency band	2.4 - 2.483 GHz
Number of rotors	- rotors
Maximum flight time	30 min
Maximum ascent speed	6 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Horizontal hover accuracy	0.1 m
Maximum operating distance	- m
Megapixel	20 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Camera shutter speed	8 - 1/8000 s
Image formats supported	JPEG
Video formats supported	H.264
Maximum image resolution	5472 x 3648 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	84 °
Built-in processor	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Number of waypoints	199
Moving control functions	Downward, Forward
Operating frequency	2400 - 2483/5725 - 5850 MHz
Battery voltage	15.2 V
Battery capacity	5870 mAh
Transmitter battery capacity	6000 mAh
Output power	160 W
Operating temperature (T-T)	0 - 40 °C
Cables included	AC, Micro-USB, USB Type-C
Memory card included	MicroSD
Included memory card size	16 GB

Weight and Dimensions

Battery weight	468 g
