Balancing
Proper balancing is essential for optimal performance when using Ronin 4D. Proper balance is critical
for shots with Ronin 4D where subjects move suddenly and at fast speeds and also oers longer battery
runtimes. Two of the axes must be properly balanced before powering on Ronin 4D and setting up the
parameters.
Before Balancing
1. The camera must be fully congured before installing and balancing the camera on the gimbal. This
includes all connected cables and accessories such as the X9 focus motor, LiDAR range nder, lens,
and counter weight. Remove any lens cap from the camera before balancing.
2. Make sure to select the focal length before balancing if using a varifocal lens. Make sure Ronin 4D is
powered o or in sleep mode before balancing.
Balancing Steps

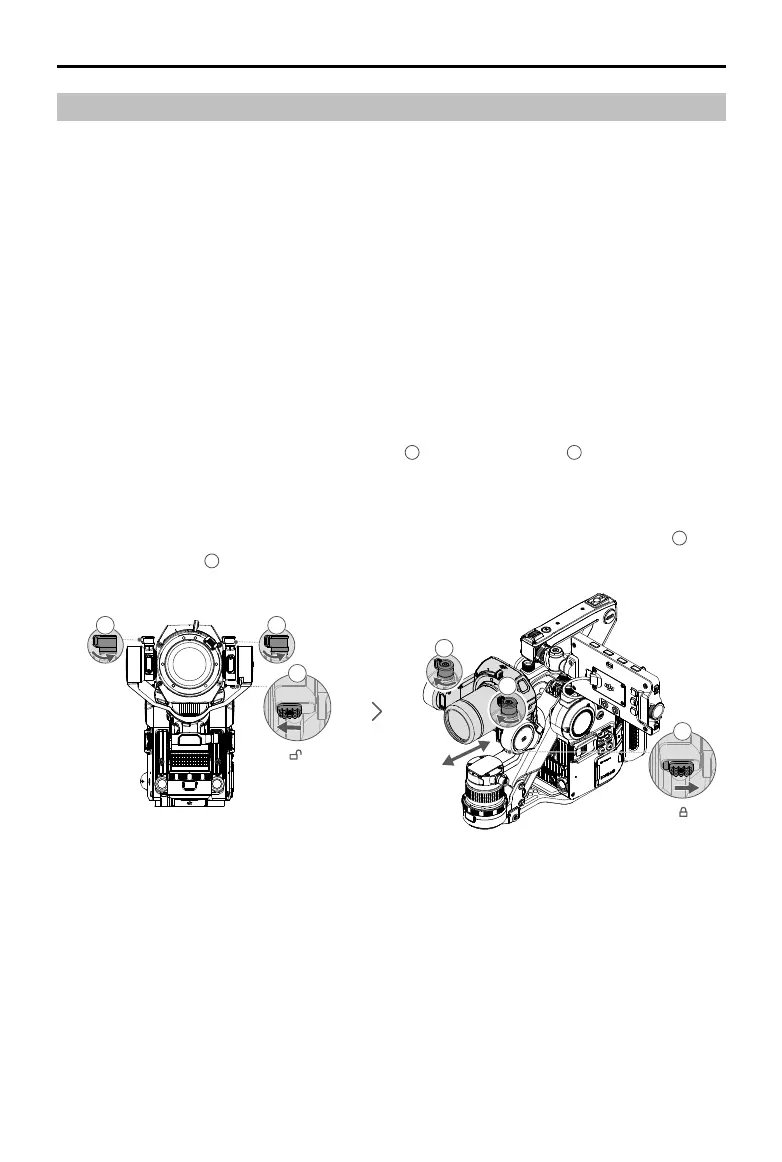

1. Balancing the Tilt Axis
a. Toggle the tilt axis lock to the unlocked position
1
and loosen the knobs
2
on both sides of the
tilt axis.
b. Check to make sure the camera is not front- or back-heavy. Move the camera backward if front-
heavy and forward if back-heavy.
c. The tilt axis is balanced when the camera is steady while tilted foward. Tighten the knobs
3
.
d. Lock the tilt axis
4
.
1
2 2
4
3
3

dji RONIN 4D Specifications

General

Camera Sensor	Full-Frame CMOS
Dynamic Range	14+ stops
Battery	TB50 Intelligent Battery
Sensor Size	36 x 24 mm
Video Resolution	6K (4096 x 2160)
Lens Mount	DL mount, with E-mount compatibility via adapter
Stabilization	4-axis stabilization
Recording Formats	Apple ProRes 422 HQ, H.264
Frame Rates	Up to 6K/60fps, 4K/120fps
Storage	CFexpress Type-B
Audio Input	3.5mm
Display	5.5-inch touchscreen
Battery Life	Approx. 2.5 hours
Internal ND Filters	Built-in ND filters (ND 2 to ND 512)
Weight	Approx. 4.67 kg (without lens)
