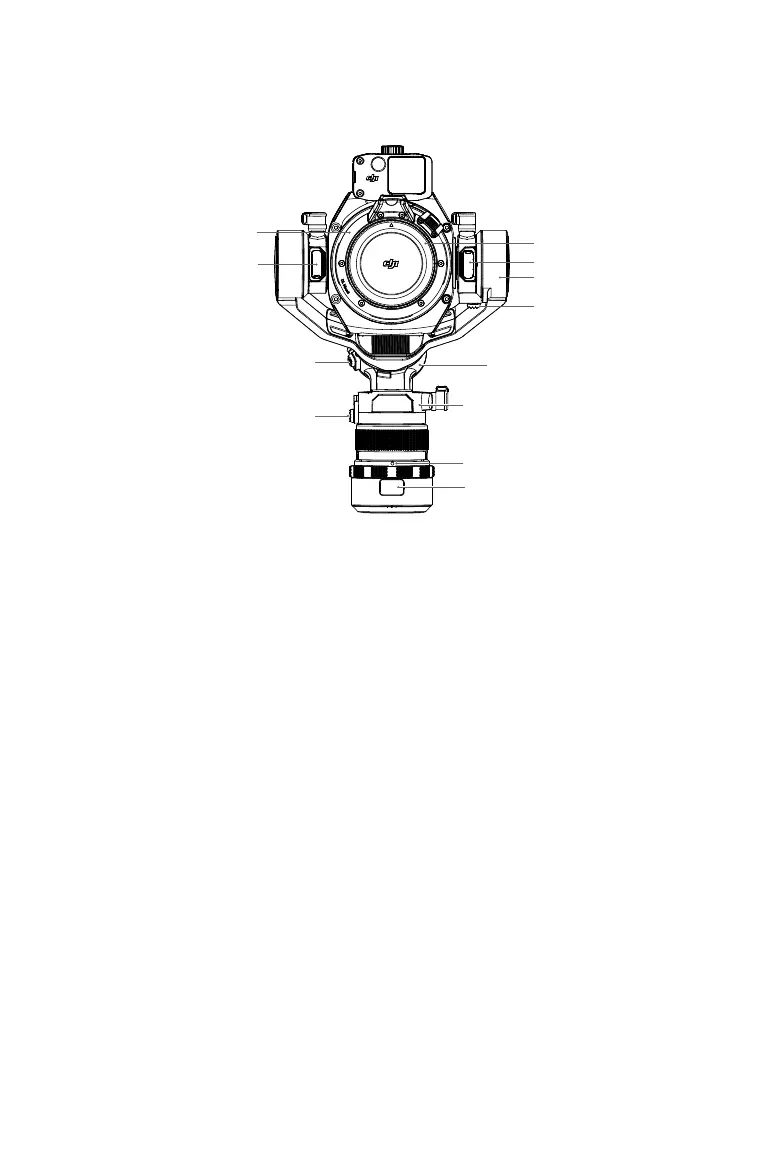

DJI Zenmuse X9 Gimbal and Camera
1. Camera
2. Lens Mount
Attach the lens after removing the lens cap.
3. X9 Focus Motor Port
For connecting the X9 Focus Motor and Ronin
4D using the DJI LiDAR range nder/X9 focus
motor cable.
4. Tilt Motor
For controlling the tilt axis.
5. Tilt Lock
For locking the tilt axis. The tilt axis can
be locked at two angles for balancing and
storage.
6. Roll Motor
For controlling the roll axis.
7. Pan Motor
For controlling the pan axis.
8. Gimbal Connector
9. Gimbal Release Button
Press the release button to remove the gimbal.
10. Pan Lock
For locking the pan axis.
11. Roll Lock
For locking the roll axis. The roll axis can
be locked at two angles for balancing and
storage.
12. LiDAR Range Finder Port
For connecting the LiDAR Range Finder and
the gimbal using the DJI LiDAR range nder/
X9 focus motor cable.
1
12
10
11
9
8
7
6
5
4
3
2

dji RONIN 4D Specifications

General

Camera Sensor	Full-Frame CMOS
Dynamic Range	14+ stops
Battery	TB50 Intelligent Battery
Sensor Size	36 x 24 mm
Video Resolution	6K (4096 x 2160)
Lens Mount	DL mount, with E-mount compatibility via adapter
Stabilization	4-axis stabilization
Recording Formats	Apple ProRes 422 HQ, H.264
Frame Rates	Up to 6K/60fps, 4K/120fps
Storage	CFexpress Type-B
Audio Input	3.5mm
Display	5.5-inch touchscreen
Battery Life	Approx. 2.5 hours
Internal ND Filters	Built-in ND filters (ND 2 to ND 512)
Weight	Approx. 4.67 kg (without lens)
