26
©
2022 DJI All Rights Reserved.
Z-Axis
Usage
Make sure the payload of the Z-axis is within 2 kg, including the gimbal and camera, lens, counter
weight, LiDAR range nder, and X9 Focus Motor. The Z-Axis is disabled by default. Power on Ronin 4D
before enabling the Z-axis. Loosen the lock knob, press the Z-axis switch on the main body or press the
right hand grip trigger twice to enable the Z-axis.
Make sure the Z-axis is balanced before usage. Refer to the Balancing the Z-Axis section for more
information.
Operation Modes
The three operation modes of the Z-axis are Follow, Lock, and Car Mount mode. The operation mode
can be set by selecting Stabilizer, Gimbal Settings, and Z-Axis Mode.
Follow Mode: The Z-axis follows the vertical movements of the main body and the arm always returns
to the center position. It is recommended to use follow mode shooting scenes that involve running,
going up and down steps, and other scenarios that involve large uctuations in vertical movement.
Lock Mode: The Z-axis will not follow the main body movement within a ±6 cm range and remains at a
certain level. It is recommended to use Lock mode when the camera needs to remain at a certain level
during shooting.
Car Mount Mode: The Z-axis will follow the vertical movement of the main body while ltering high-
frequency shake caused by cars or moving devices to obtain optimal stabilization. It is recommended to
use Car Mount mode when attaching Ronin 4D to a device that will cause high frequency shake such
as a car or cableway camera system.
When the Z-axis is in Follow or Lock mode, press the C2 button on the main body to switch between
Follow and Lock mode. When the Z-axis is in Follow mode, press and hold the trigger of the right hand
grip to enter Lock mode and release the trigger to exit Lock mode.
When the Z-axis is in follow mode, press and hold the M button of the left hand grip or top handle to
enter Sport mode and release to exit. The Z-axis will remain in the center as much as possible. This
mode is suitable for shooting scenes that require sudden movements with the main body.
Sport mode can also be entered or exited by pressing the M button on the left hand grip or top handle
twice. After entering Sport mode by pressing the M button twice, press and hold the M button to switch
to follow mode and release to return to Sport mode.

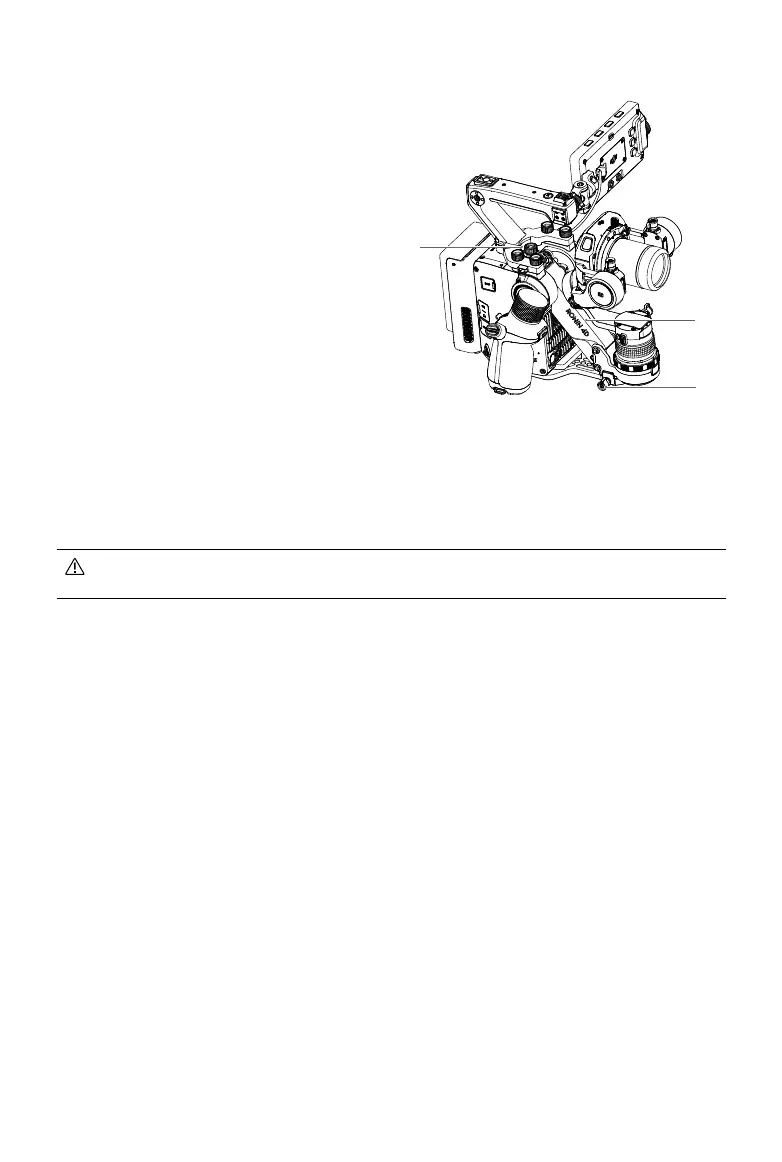

1
2
3
1. Lock Knob
Loosen the lock knob before enabling the
Z-axis.
2. Z-Axis Arm
3. Balance Adjustment Knob
Balance the Z-axis by turning the adjustment
knob.
