Using DJI Force Pro and DJI Master Wheels with Ronin 4D
To control Ronin 4D via DJI Force Pro or DJI Master Wheels requires DJI Ronin 4D Video Transmitter,
DJI High-Bright Remote Monitor, DJI High-Bright Remote Monitor Controller Cable, and DJI Ronin 4D
Expansion Plate (SDI/XLR/TC). Make sure to update the rmware to the latest version for Ronin 4D, DJI
High-Bright Remote Monitor, DJI Force Pro, and DJI Master Wheels.
Follow the steps below to use DJI Force Pro and DJI Master Wheels with Ronin 4D.
1. Detach the cover on the back of the DJI High-Bright Remote Monitor and attach the DJI Remote
Monitor Expansion Plate (SDI/HDMI/DC-IN) to the back of the DJI High-Bright Remote Monitor and
tighten the four screws.
2. Connect the DC-OUT port of the DJI Master Wheels or DJI Force Pro and the DC-IN port of the DJI
Remote Monitor Expansion Plate mounted on the DJI High-Bright Remote Monitor using the DJI
High-Bright Remote Monitor Controller Cable.
3. In the high-bright main monitor menu, tap Transmission and Link Device or press the linking button
on the DJI Ronin 4D Video Transmitter for ve seconds to enter linking status. Tap … on the high-
bright remote monitor and select Control Settings and Link Monitor A/B to link Ronin 4D.
4. Power on the DJI Force Pro or DJI Master Wheels and switch the gimbal control to Ronin 4D.
Switching the Gimbal Control:
For DJI Master Wheels: Set the Switch function for a custom button of the DJI Master Wheels to
Ronin 4D and press the button to switch. The DJI Master Wheels supports movement control,
recenter control, recording control, max speed, smoothing, and direction settings for pan, tilt, and
roll axes of Ronin 4D (other features are not supported currently).
For DJI Force Pro: Go to Settings on DJI Force Pro and select Custom, Switch, and Ronin 4D. DJI
Force Pro supports movement control, recenter control, and max speed settings for pan, tilt, and roll
axes of Ronin 4D (other features are not supported currently).

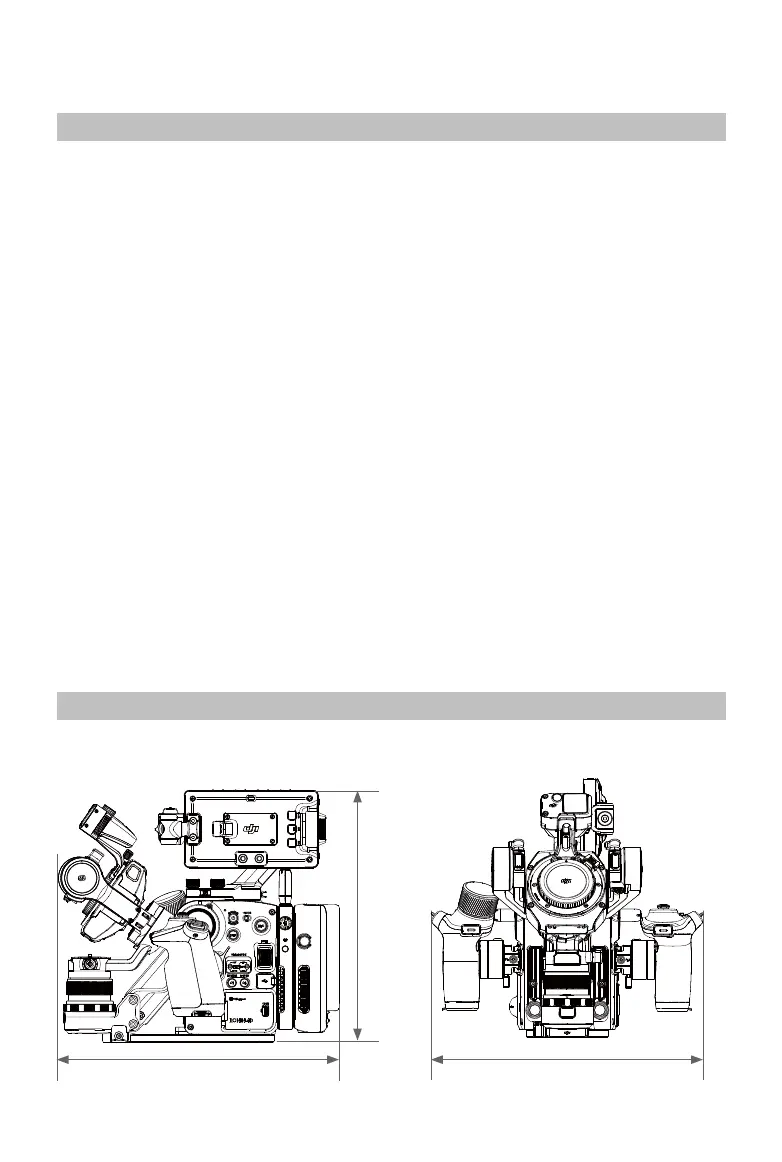

Dimensions
Ronin 4D
277.00
309.00 290.00
Unit: mm
