dji RONIN 4D User Manual

DJI Ronin 4D User Manual
43
©
2022 DJI All Rights Reserved.
Image Sharpness and Noise Reduction can be set when recording at Full Frame/Super 35 Apple
ProRes 422 HQ and H. 264 and cannot be set when recording at Apple ProRes RAW.
Image Sharpness: The default setting is 0 and can be set from -2 to 2. Image Sharpness will aect the
denition of the footage.
Noise Reduction: The default setting is 0 and can be set from -2 to 2. Noise Reduction can reduce the
majority of noise in dark areas of the footage while retaining the texture and detail of the image.
It is recommended to set the Image Sharpness and Noise Reduction to 0 for optimal image quality. The
Image Sharpness and Noise Reduction are disabled when the value is set to -2.
Rec Sound Alert: After enabling Rec Sound Alert, the alert will sound when starting or stopping
recording and the sound will be included in the actual recording.
Tally Light: After enabling the tally light, the recording indicator glows solid red during recording.
Display
Tap to set exposure assistant, focus assistant, monitor, and LOOK settings.

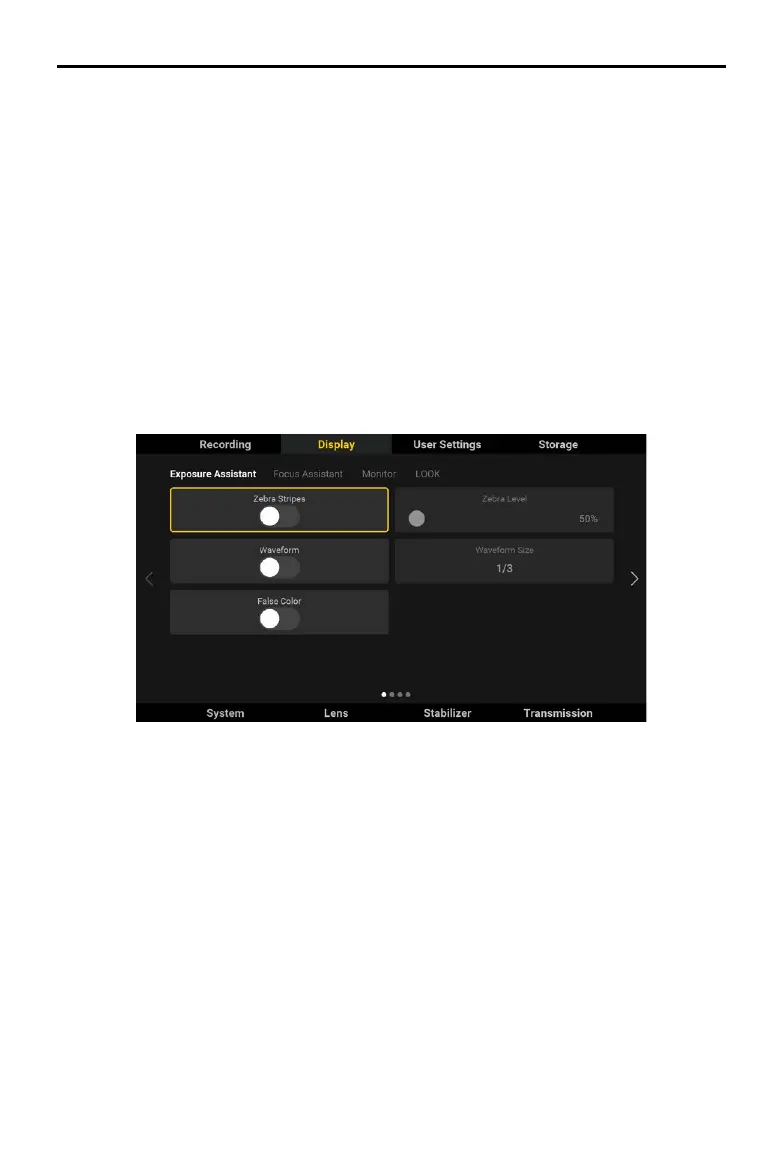

Exposure Assistant
Tap to set the exposure assistant. Users can choose from Zebra Stripes, Waveform, and False Color
and cannot be selected simultaneously.
The exposure assistant will perform metering based on the LUT of the main monitor. The metring will be
based on D-Log when using D-Log.

dji RONIN 4D Specifications

General

Camera Sensor	Full-Frame CMOS
Dynamic Range	14+ stops
Battery	TB50 Intelligent Battery
Sensor Size	36 x 24 mm
Video Resolution	6K (4096 x 2160)
Lens Mount	DL mount, with E-mount compatibility via adapter
Stabilization	4-axis stabilization
Recording Formats	Apple ProRes 422 HQ, H.264
Frame Rates	Up to 6K/60fps, 4K/120fps
Storage	CFexpress Type-B
Audio Input	3.5mm
Display	5.5-inch touchscreen
Battery Life	Approx. 2.5 hours
Internal ND Filters	Built-in ND filters (ND 2 to ND 512)
Weight	Approx. 4.67 kg (without lens)
