DJI Ronin 4D User Manual
42
©
2022 DJI All Rights Reserved.

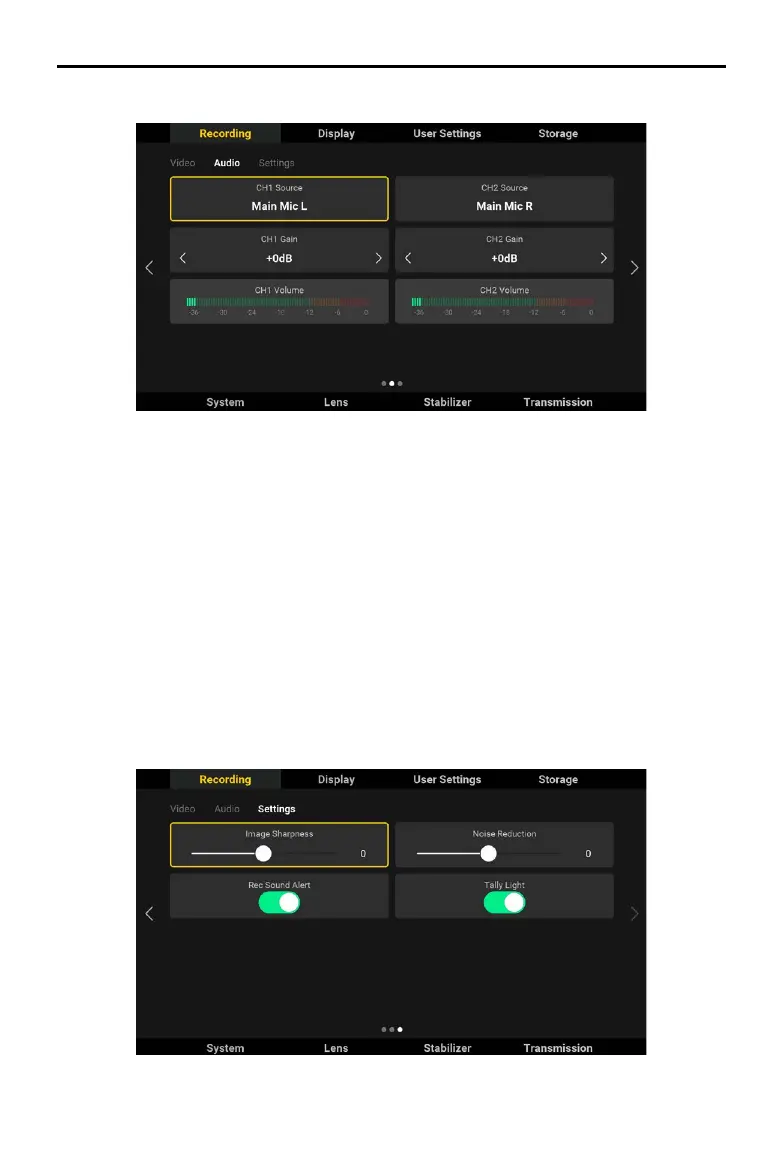

Audio
Tap Audio to set the CH1/CH2 Source, Gain, and check the real-time volume.
CH1/CH2 Source: Supports Main Mic L/R (main body left and right microphone), 3.5 Mic L/R (main
body 3.5mm microphone port input), and 3.5 Line L/R (main body 3.5 microphone port line level input).
Note that Main Mic L, 3.5 Mic L, and 3.5 Line L cannot be selected simultaneously and the Main Mic
R, 3.5 Mic R, and 3.5 Line R cannot be selected simultaneously, and only one of 3.5 Mic and 3.5 Line
can be selected simultaneously. Source inputs that cannot be selected will be displayed in grey. These
source inputs can still be selected, but if so then the originally selected source will be replaced.
CH1/CH2 Gain: The setting range is -50 dB to +24 dB and the default value is 0. The volume will
appear in the yellow or red zone when there is sound distortion and the gain needs to be reduced.
Real-Time Volume: Displays the volume of the audio source. The volume is green when the volume of
the sound source is safe, yellow when it is close to distortion, and red when it is distorted. The unit of
volume is dBFS.
Settings
