Blinks fast when installing an CFexpress card, blinks slowly when recording, and remains o when
not recording.
12. C1 & C2 Buttons
Press the C1 button to recenter the gimbal. Press the C2 button to switch between Follow and
Lock mode of the Z-axis when the Z-Axis mode is set to Follow or Lock in the high-bright main
monitor menu.
13. Left Built-in Microphone
For recording audio.
14. Tally Light
Glows solid red when recording and o when not in record.
15. Display Port
Used to connect the high-bright main monitor.
16. Audio Port
Includes a 3.5mm microphone port for microphone and line level input. There is 3V voltage bias
when using a microphone and the line level input is lower than the microphone. Choose the
appropriate input according to the device. The max line input is 10 dBu. The microphone port
comes with a M6×P0.5 screw thread and supports a 3.5mm connector with screw lock.
The 3.5mm stereo headphone port can output audio when using playback or monitor audio during
recording.
17. HDMI Port
A HDMI Type-A port that can be used for 1080p/60fps HDMI output.
18. DC-IN Port
A 6-pin 1B DC-IN power supply input port and has an input voltage of 12-30 V.
19. Right Built-In Microphone
For recording audio.
19
15
14
16
17
18

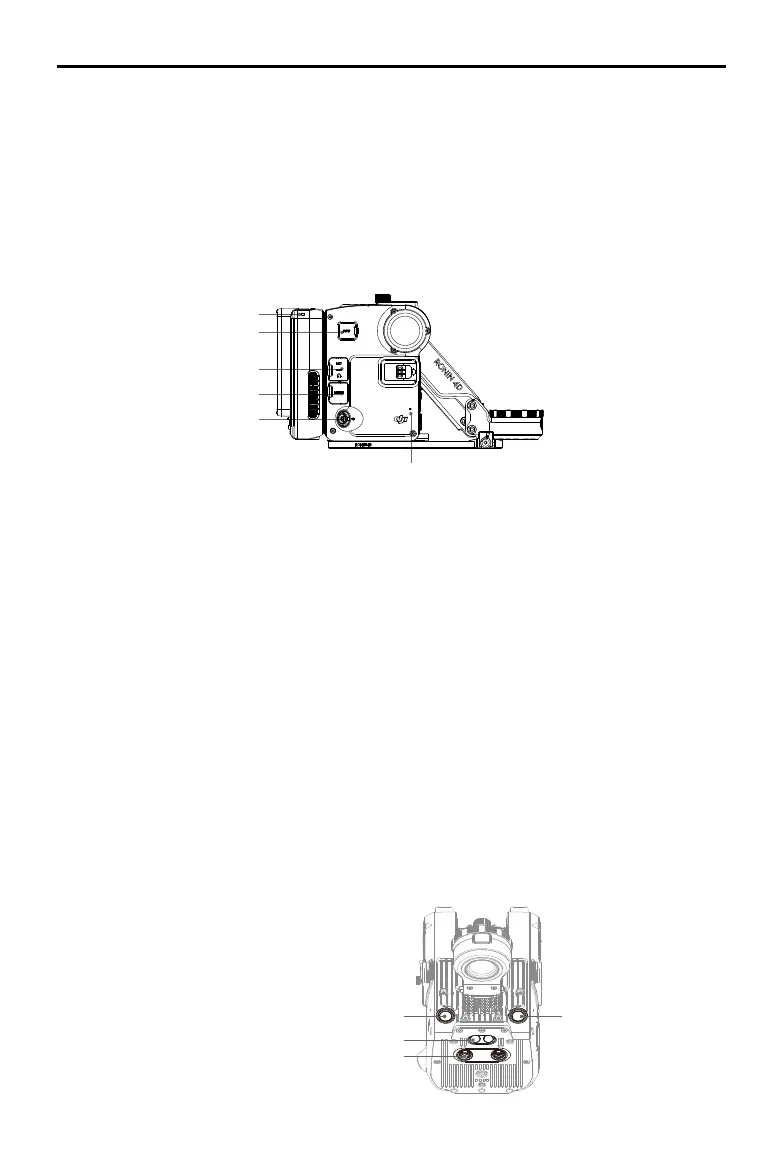

20. Forward Dual-Vision Sensors
21. Downward ToF Sensors
22. Downward Dual-Vision Sensors
20 20
21
22
