An M mount is required when attaching an M mount lens. Follow the steps below to attach an M mount.
Refer to the DJI Zenmuse X9 M Mount Unit User Guide for more information.

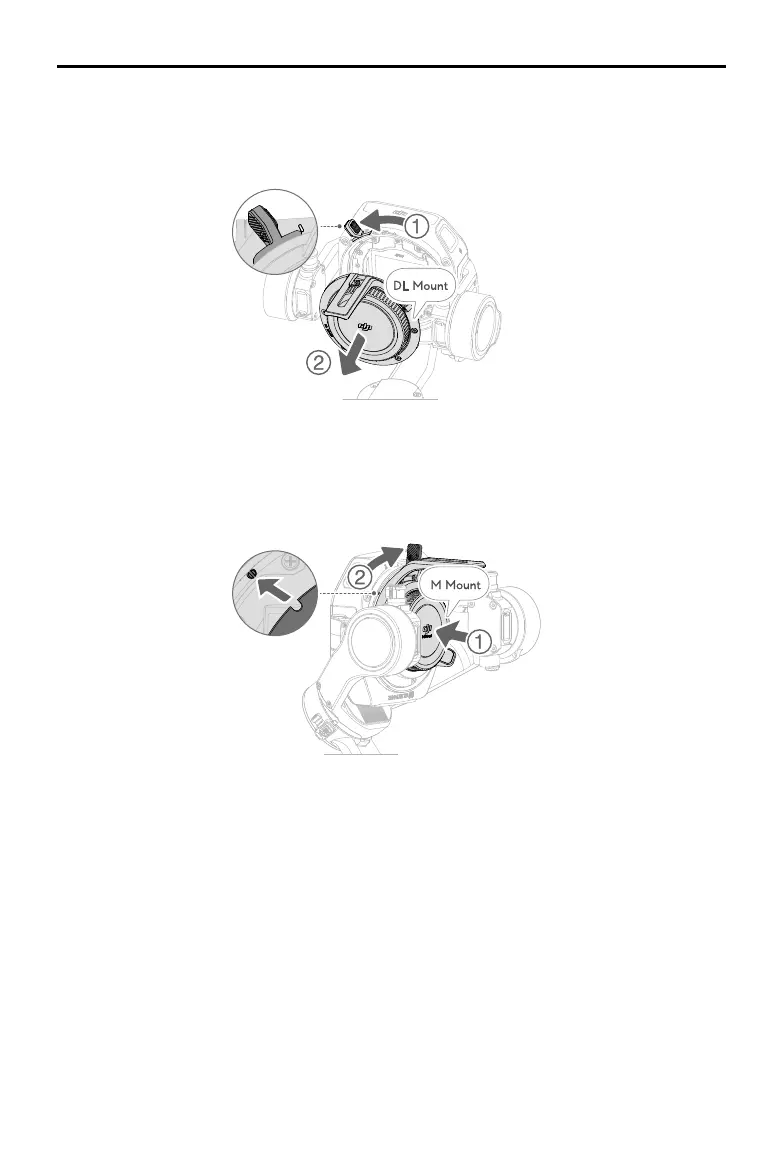

1. Press and hold the release button on the camera lever, rotate the lever counter-clockwise until it is
positioned left of the white mark, and remove the DL mount.
2. Align the positioning notch on the M mount lens adapter with the guiding pin on the camera and
insert the adapter. Rotate the camera lever clockwise until it is tight and secure. Attach the M mount
lens to the lens adapter.

dji RONIN 4D Specifications

General

Camera Sensor	Full-Frame CMOS
Dynamic Range	14+ stops
Battery	TB50 Intelligent Battery
Sensor Size	36 x 24 mm
Video Resolution	6K (4096 x 2160)
Lens Mount	DL mount, with E-mount compatibility via adapter
Stabilization	4-axis stabilization
Recording Formats	Apple ProRes 422 HQ, H.264
Frame Rates	Up to 6K/60fps, 4K/120fps
Storage	CFexpress Type-B
Audio Input	3.5mm
Display	5.5-inch touchscreen
Battery Life	Approx. 2.5 hours
Internal ND Filters	Built-in ND filters (ND 2 to ND 512)
Weight	Approx. 4.67 kg (without lens)
