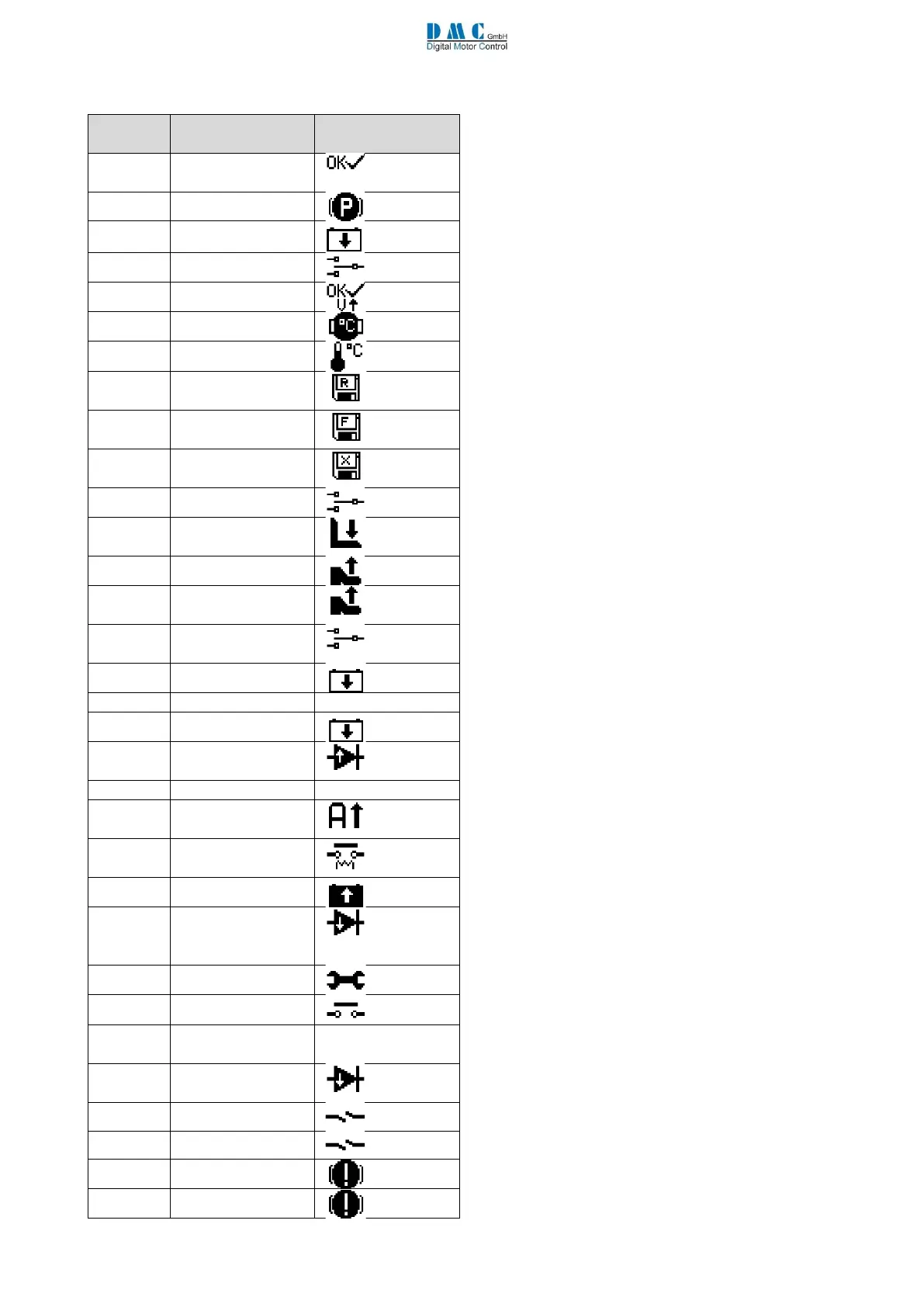

8.4 Display Icons
LED
code
Calibrator Message
Display Icon
0
None (lowest
priority)
1
Handbrake on
2
Voltage getting low
3
Pump inhibit
4
Voltage getting high
5
Motor hot
6
Controller hot
7
Adjustments out of
range
8
Default settings
restored
9
E-eprom cannot be
accessed
10
2 Direction fault
11
Seat- or tiller switch
open
12
Sequence fault
13
Accelerator high at
first power up
14
Inching or belly
fault
15
Voltage too low
16
N/A
17
Voltage too low
18
High sided Mosfet
short circuit
19
N/A
20
Hardware over
current
21
Contactor coil short
circuit
22
Voltage too high
23
Low sided Mosfet
short circuit
(neutral)
24
HWFS not working
25
Contactor fault
26
Thermal shutdown
fault
27
Low side Mosfet
short circuit
28
Wire off detected
29
CAN Node time out
30
Over speed
31-40
Motor fault
