SuperSigma2 QRM PMS – V01.02.02 17-1-2020 Page 53 (58) ©2019 DMC GmbH Herten Germany

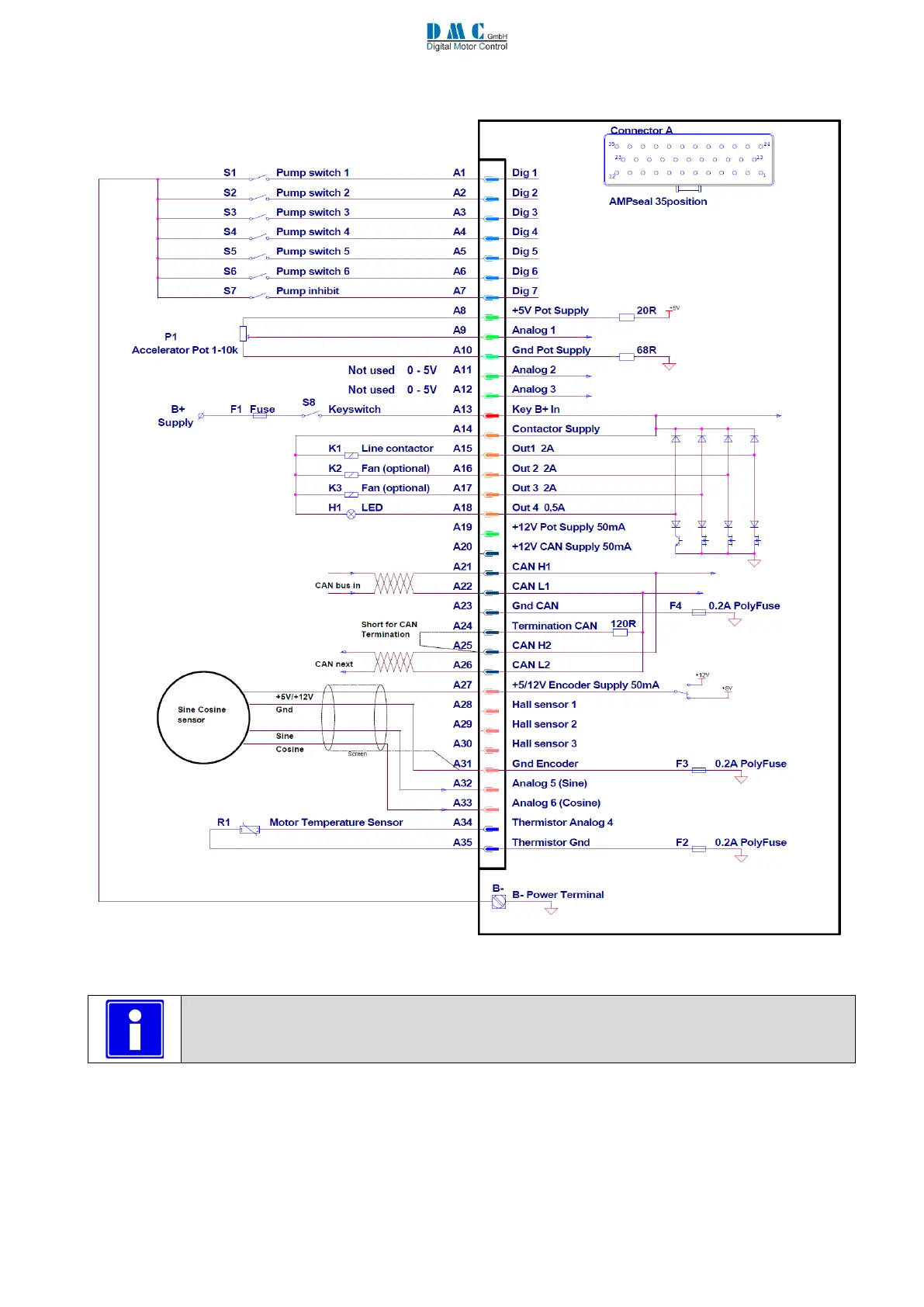

11.3.4 Light wiring example for pump
The reported wiring example is referred to active low inputs
