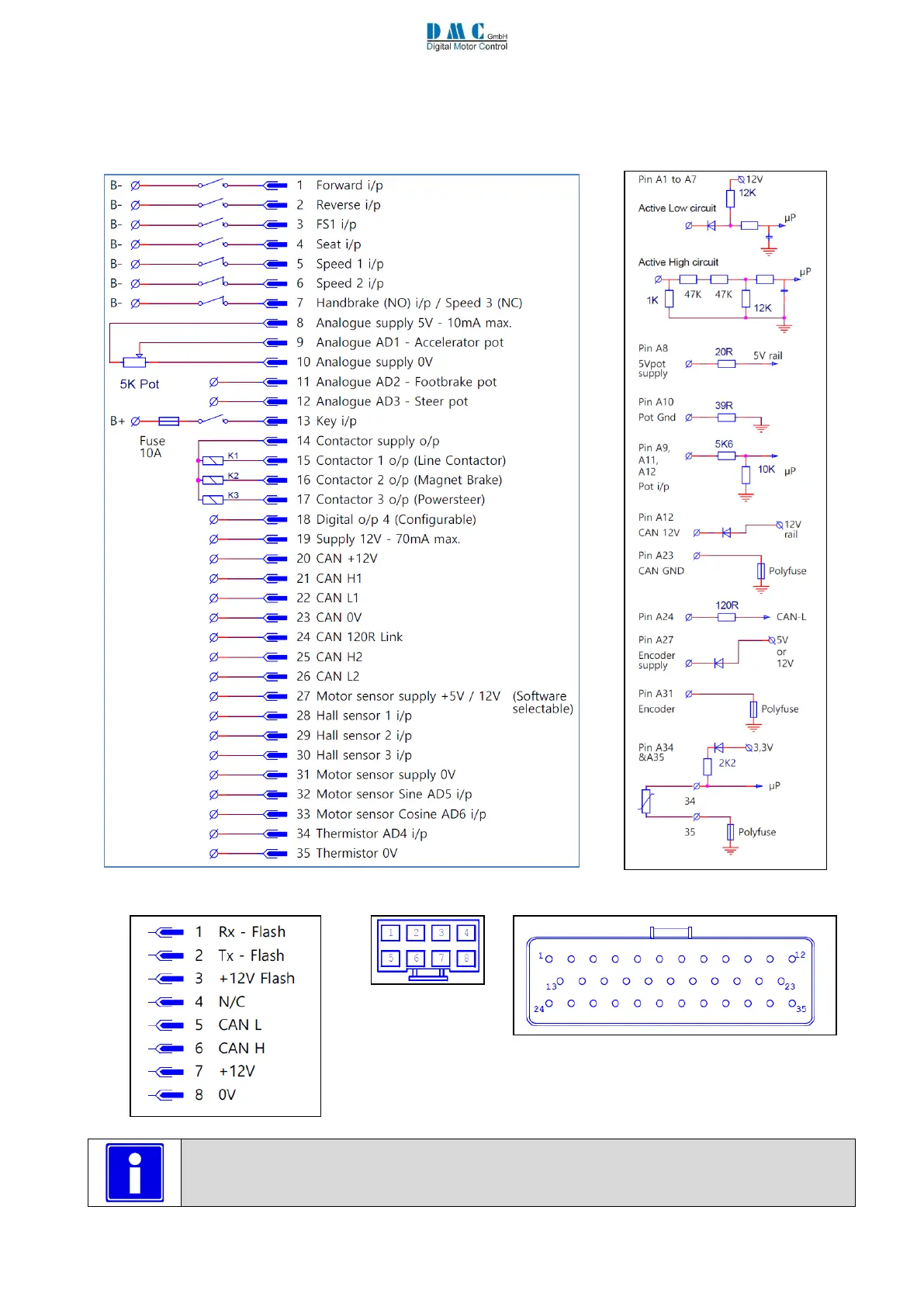

SuperSigma2 QRM PMS – V01.02.02 17-1-2020 Page 50 (58) ©2019 DMC GmbH Herten Germany
11.3 Light Wiring of PMS controller
11.3.1 Connectors’ pin assignment for Traction
Connector A - Vehicle Interface - 35 Way (AMP SEAL Series):
Internal circuits:
Connector B - Communications - 8 Way:
8 Way pin layout:
35 Way pin layout:
Most inputs are Normally Open (NO) except for the speed inputs, these are Normally Closed (NC)
