SuperSigma2 QRM PMS – V01.02.02 17-1-2020 Page 52 (58) ©2019 DMC GmbH Herten Germany

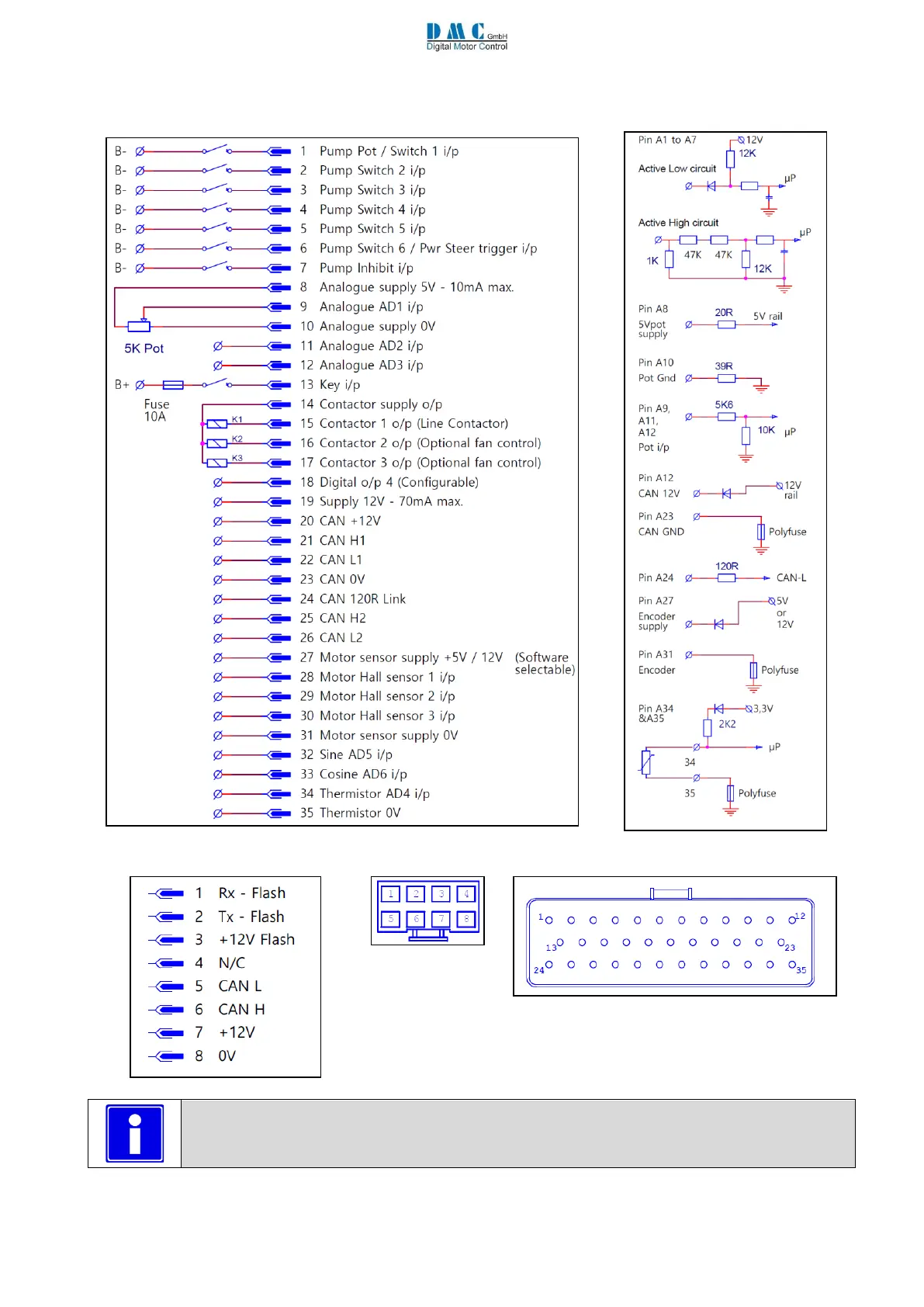

11.3.3 Connectors’ pin assignment for Pump
Connector A - Vehicle Interface - 35 Way (AMP SEAL Series):
Internal circuits:
Connector B - Communications - 8 Way:
8 Way pin layout:
35 Way pin layout:
For pump controllers “Pump switch 6” and “Pump inhibit” are active low. In “Menu 3 “Controller
Setup”” it is possible to change them to active high.
