Installation

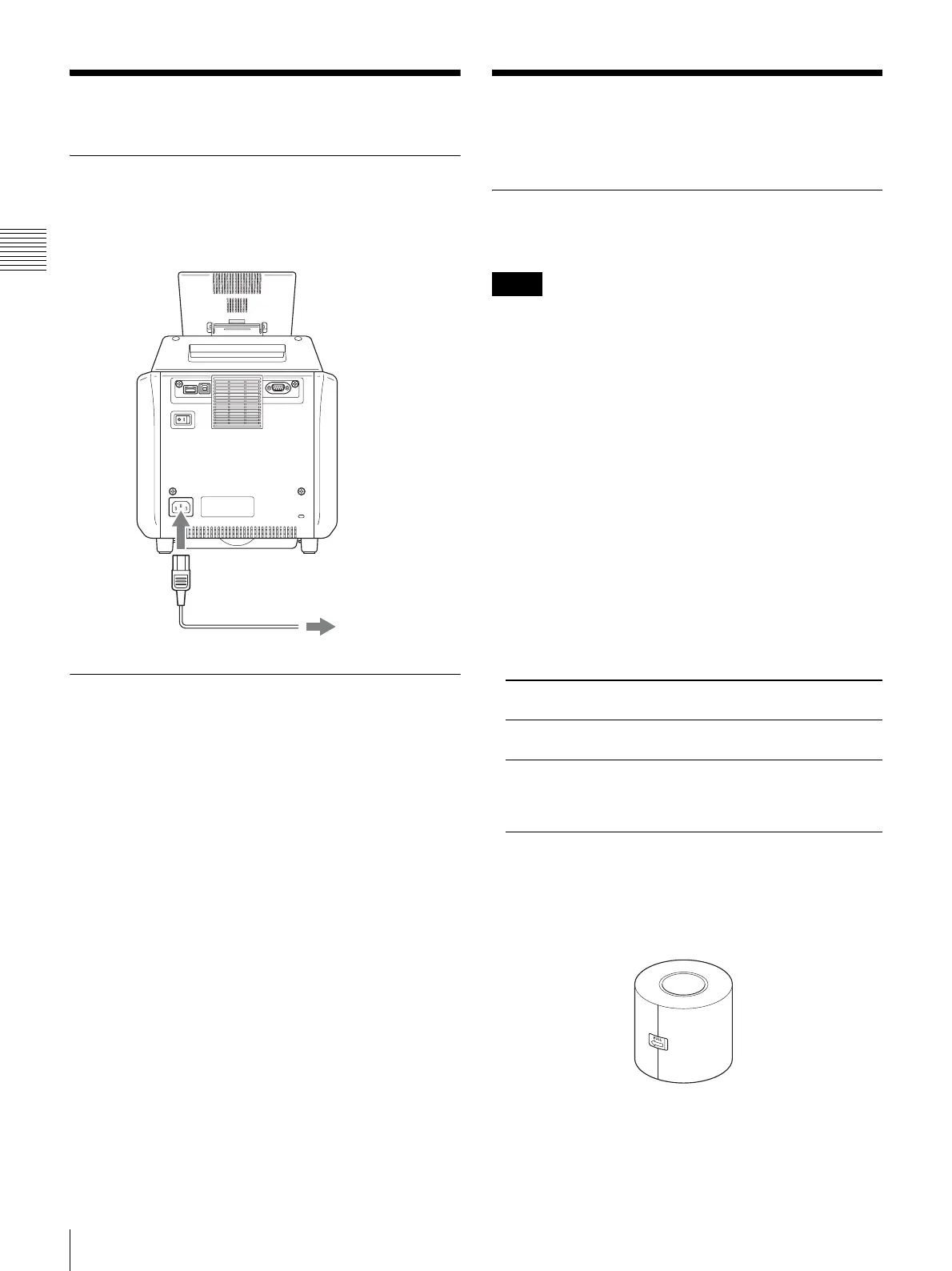

Connecting the Power Cord
Connect the power cord to the ~ AC IN connector on the
back of the unit, and then connect the plug to a power
outlet.
Adjusting the Display Angle
The display angle can be adjusted to make the display
more easily viewable. Seven settings are available for
angle adjustment.
When storing the unit, pull the display forward until
completely upright and then push it backward until
horizontal.
Loading Paper Roll and
Ink Ribbon
Handling the paper roll and ink
ribbon
• The print pack contains two ink ribbons and two paper
rolls. Be sure to use the ink ribbon and paper roll in the
same carton as a set. (See “Ink Ribbon and Paper” on
page 72.)
• The ink ribbon and paper roll are not meant to be used up
completely. Even if there is some ink ribbon and paper
remaining, be sure to load a new ink ribbon and paper
roll as a set. Using leftover paper may result in
malfunction.
• Make sure to use a matching paper roll and ink ribbon
set. Using an unmatched combination will not only
prevent you from obtaining normal print results but may
cause a paper jam or a malfunction.
• Do not touch the printing surface of the paper roll or the
ink on the ink ribbon. Fingerprints and other pollutants
can lead to reduced print quality.
• The number of sheets that can be printed depends on the
print pack type. The table below lists the image count for
one ink ribbon and paper roll set.
• Do not replace the ink ribbon and paper roll before they
are used up. Otherwise the above number of sheets may
not be achieved.
• Place the paper roll vertically. If you place the paper roll
horizontally, the paper roll may roll around and fall. This
may cause an injury.
Power cord (not supplied)
Power outlet
Notes
Print
pack
2UPC-C13
series
2UPC-C14
series
2UPC-C15
series
2UPC-C48
series
Number of
sheets
300
(sheets)
200
(sheets)
172
(sheets)
150
(sheets)
Print size
89 × 127 mm
±2 mm
(3.5 × 5 inches
±3/32 inch)
102 × 152 mm
±2 mm
(4 × 6 inches
±3/32 inch)
127 × 178 mm
±2 mm
(5 × 7 inches
±3/32 inch)
102 × 203 mm
±2 mm
(4 × 8 inches
±3/32 inch)
