DOM Roq® Round / Oval Rosette and Spanish Rosette with Screw Connection Through the Inner
Rosette
37
DOM Roq® Smart Lock

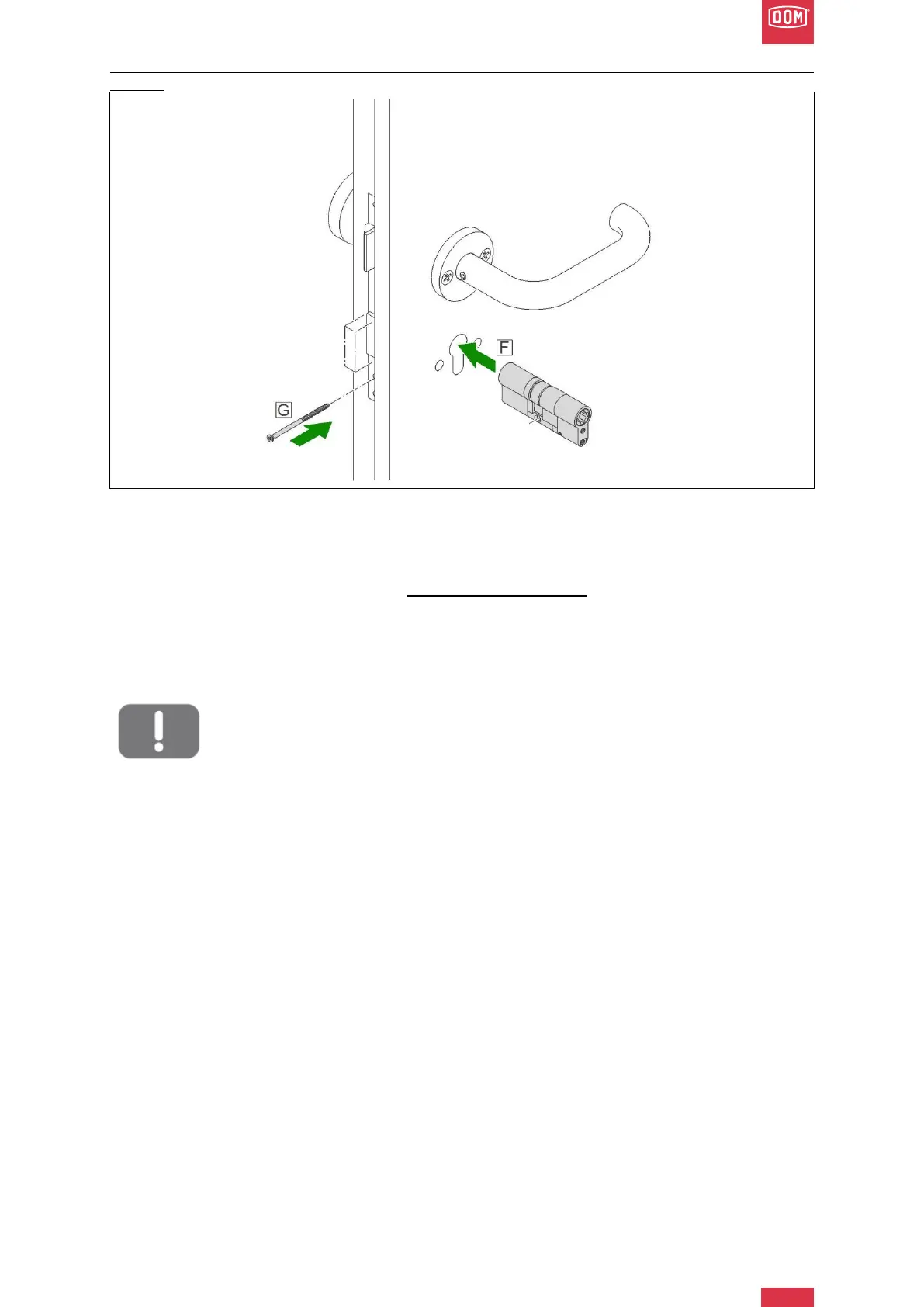

DOM Roq® Fig. 31: Round/Oval Rosette and Spanish Rosette with Screw Connection Through the Inner Rosette
5. Insert new cylinder (with closing lug in home position, see page 13) from the inside.
(F)
6. Insert the key from the outside (hold it in from the inside).
7. Check from the outside with the key whether the cylinder operates the lock
(no grinding or sluggishness).
8. Drive out the latch with the help of the key.
9. Hand-tighten the cylinder with the forend screw. (G)
Attention! Damage due to braced installation.
Make sure that the locking lug does not rub against the side plate of the lock
and that the lock can be easily operated by the cylinder. Otherwise the cylinder
or the motor unit may be damaged.
10. Retract the latch and remove the key.
