DOM Roq® Smart Lock

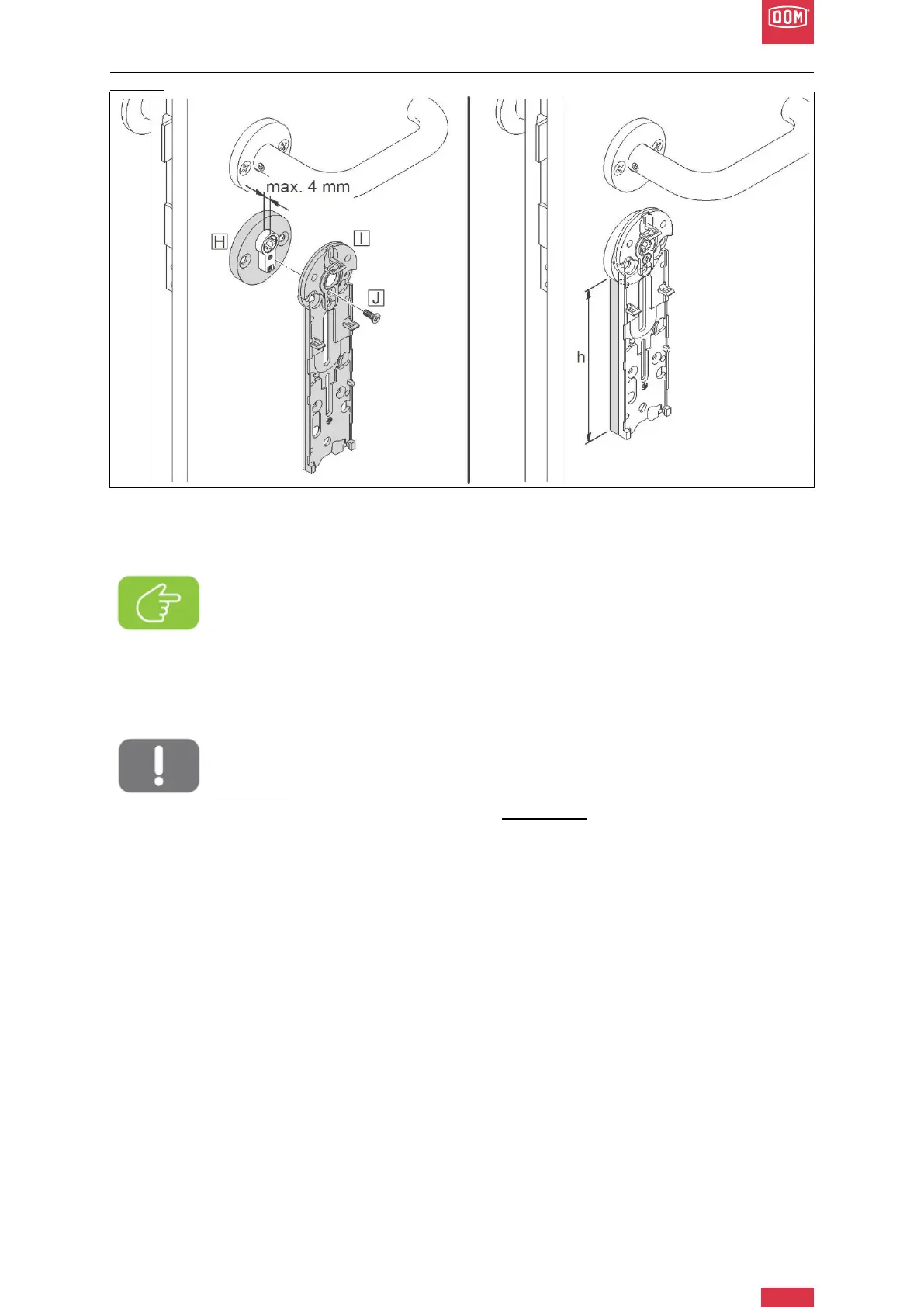

DOM Roq® Fig. 32: Round/Oval Rosette and Spanish Rosette with Screw Connection Through the Inner Rosette
11. Fit the rosette (inside). (H)
12. Check that the cylinder protrudes a maximum of 4 mm from the trim!
13. Place the base plate on the cylinder. (I)
14. Fasten the base plate to the cylinder (upper hole) only hand-tight with an M4 screw.
(J)
Attention!
For a cylinder protrusion of 1 to max. 4 mm (from the trim), use the screws
M4x12 mm, for a cylinder protrusion of less than
1 mm (out of the trim), use the screws M4x16 mm.
Tighten this screw only hand-tight as the base plate must be removed again.
15. Measure the difference (h) between the lowest point of the trim and the base plate.
Note the value.
16. Remove the M4 screw and take off the base plate again.
Note!
The cylinder may only protrude a maximum of 4 mm from the trim when
mounted directly on the trim. If the cylinder protrudes more than 4 mm, please
contact your DOM specialist dealer.
