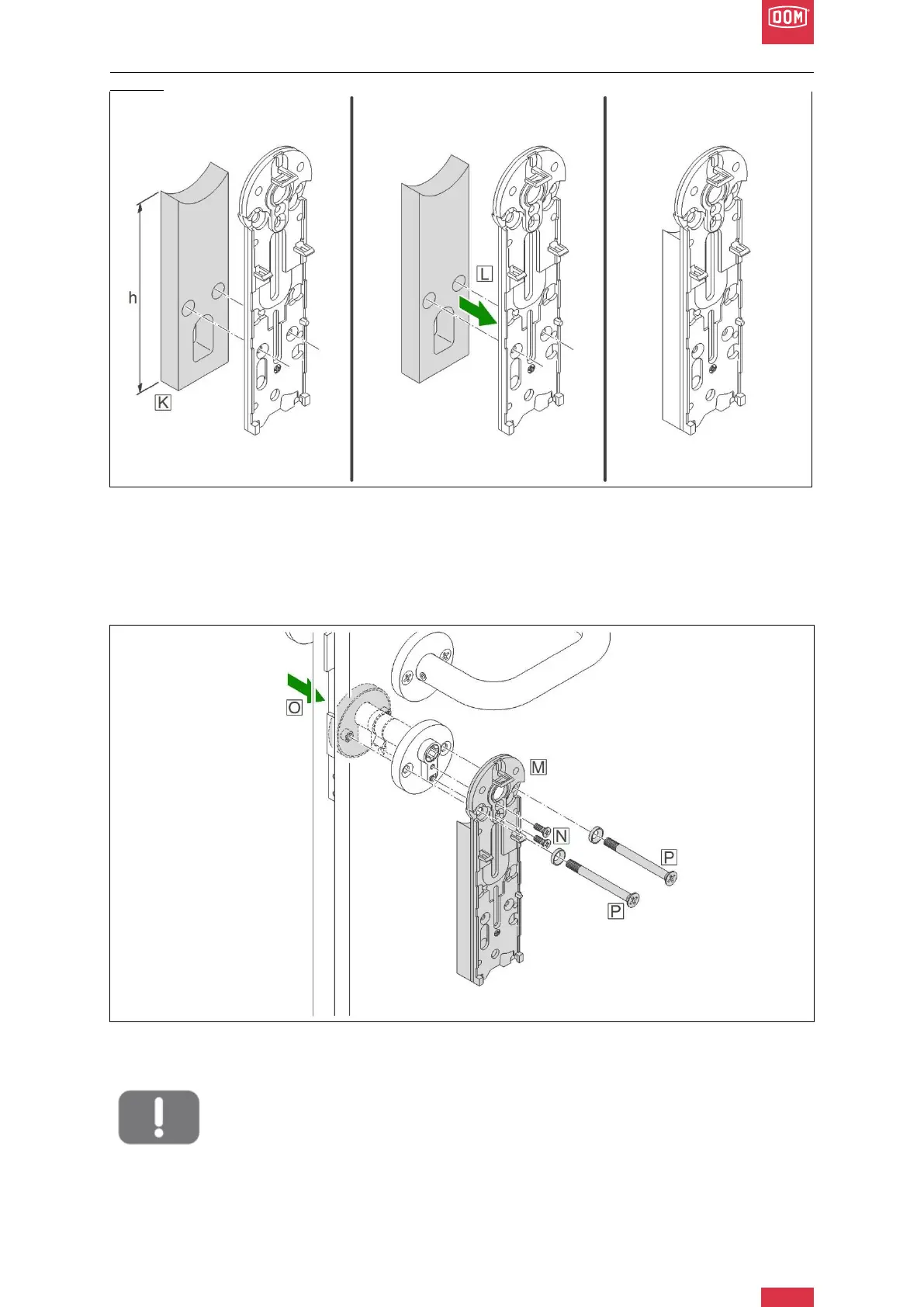

DOM Roq® Fig. 33: Round/Oval Rosette and Spanish Rosette with Screw Connection Through the Inner Rosette
17. Cut the foam piece according to dimension h and the shape (pay attention to the
printed pattern lines) of the trim. (K)
18. Remove the protective film from the foam part and stick the foam part accurately onto
the base plate. (L)
DOM Roq® Fig. 34: Round/Oval Rosette and Spanish Rosette with Screw Connection Through the Inner Rosette
19. Place the base plate incl. foam part on the cylinder. (M)
Attention! Damage to the door leaf due to gluing
Gluing the foam part directly onto the door leaf can / will damage the door leaf.
This may be visible after rebuilding to a normal cylinder lock! As the fastening
screws (P) are present in this case, there is no need to glue them in place.
20. Fasten the base plate on the cylinder with two M4 screws. (N)
