DOM Roq® Round / Oval Rosette and Spanish Rosette with Screw Connection Through the Inner
Rosette
40
DOM Roq® Smart Lock
Attention! For a cylinder protrusion of 1 to max. 4 mm (from the trim), use the
screws M4 x 12 mm, for a cylinder protrusion of less than 1 mm (from the trim),
use the screws M4 x 16 mm.
Tighten these screws only until there is no more slack (screws are provided with
a screw locking adhesive).
The screws may only be tightened until the base plate is parallel to the door
leaf without pulling the cylinder out towards the inside.
21. Fit the outer rosette on the outside. (O)
22. Fix the base plate through the inner rosette to the outer rosette with DOM Roq® con-
necting countersunk screws M5 / M6 and correspondingly suitable countersunk wash-
ers. (P)
Fasten spanish rosette (4 old special screws with 2 conical washers for the two upper
fastening points, see Fig. 20, page 27) accordingly.
DOM Roq® Fig. 35: Round/Oval Rosette and Spanish Rosette with Screw Connection Through the Inner Rosette

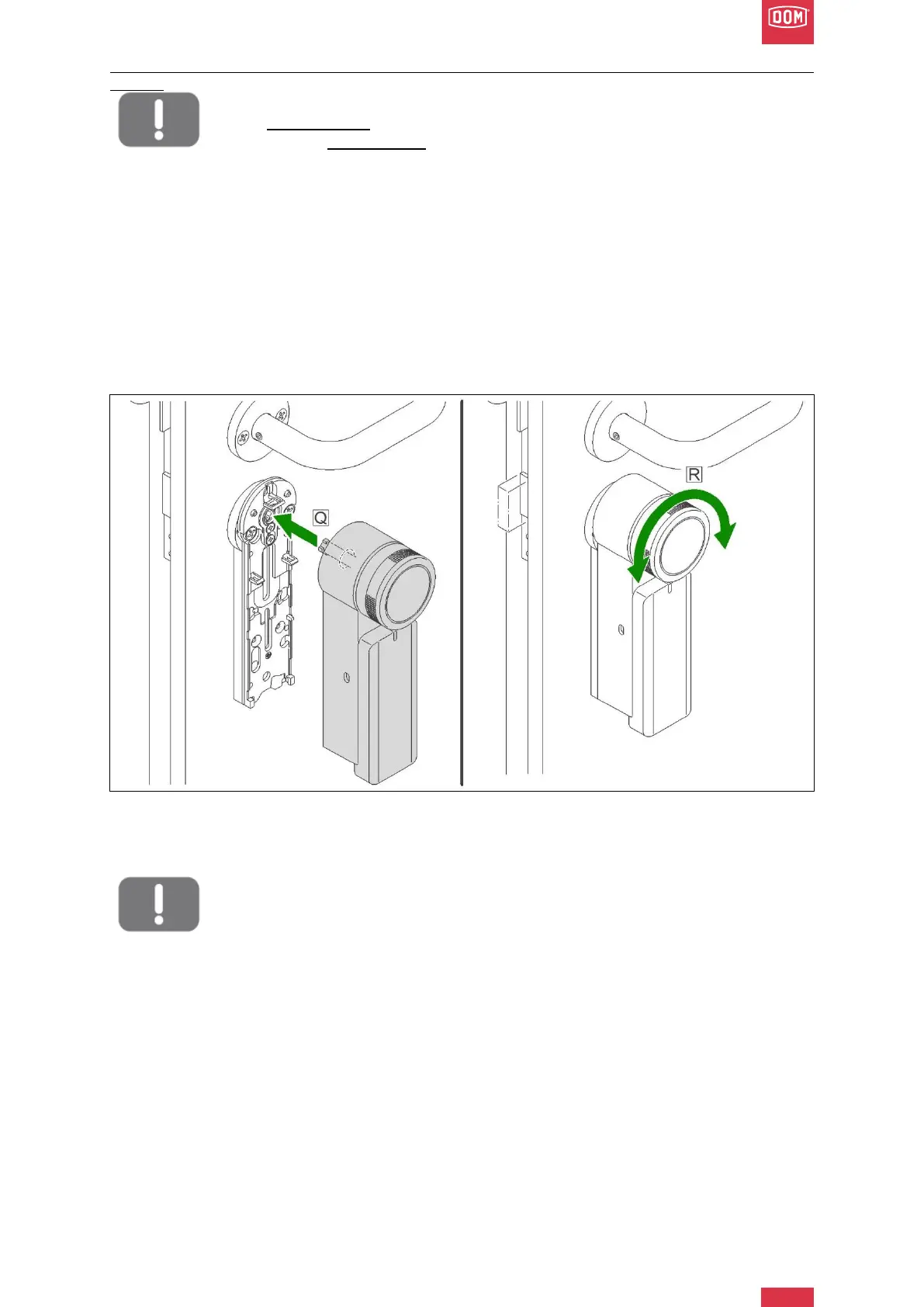

23. Place the motor unit on the base plate and press lightly (>Click< , base plate is
locked with the 3 protruding brackets). (Q)
Attention! Damage due to improper fitting.
When fitting the motor unit, make sure that the components are in the correct
position (inner part cylinder, motor unit cardan shaft). Do not join the motor unit
and the base plate together with violence or great force.
DOM accepts no liability for damage caused by improper installation.
24. Turn the handwheel to check whether the bolt can be moved in and out of the lock
and whether the deadbolt can be moved. (R)
(This checks whether the cross of the cardan shaft has been inserted positively into
the matching inner part of the cylinder).
25. Motor unit is attached and ready for commissioning (from page 53).
