DOM Roq® Long Plate Inside Without Visible Screw Connection
42
DOM Roq® Smart Lock

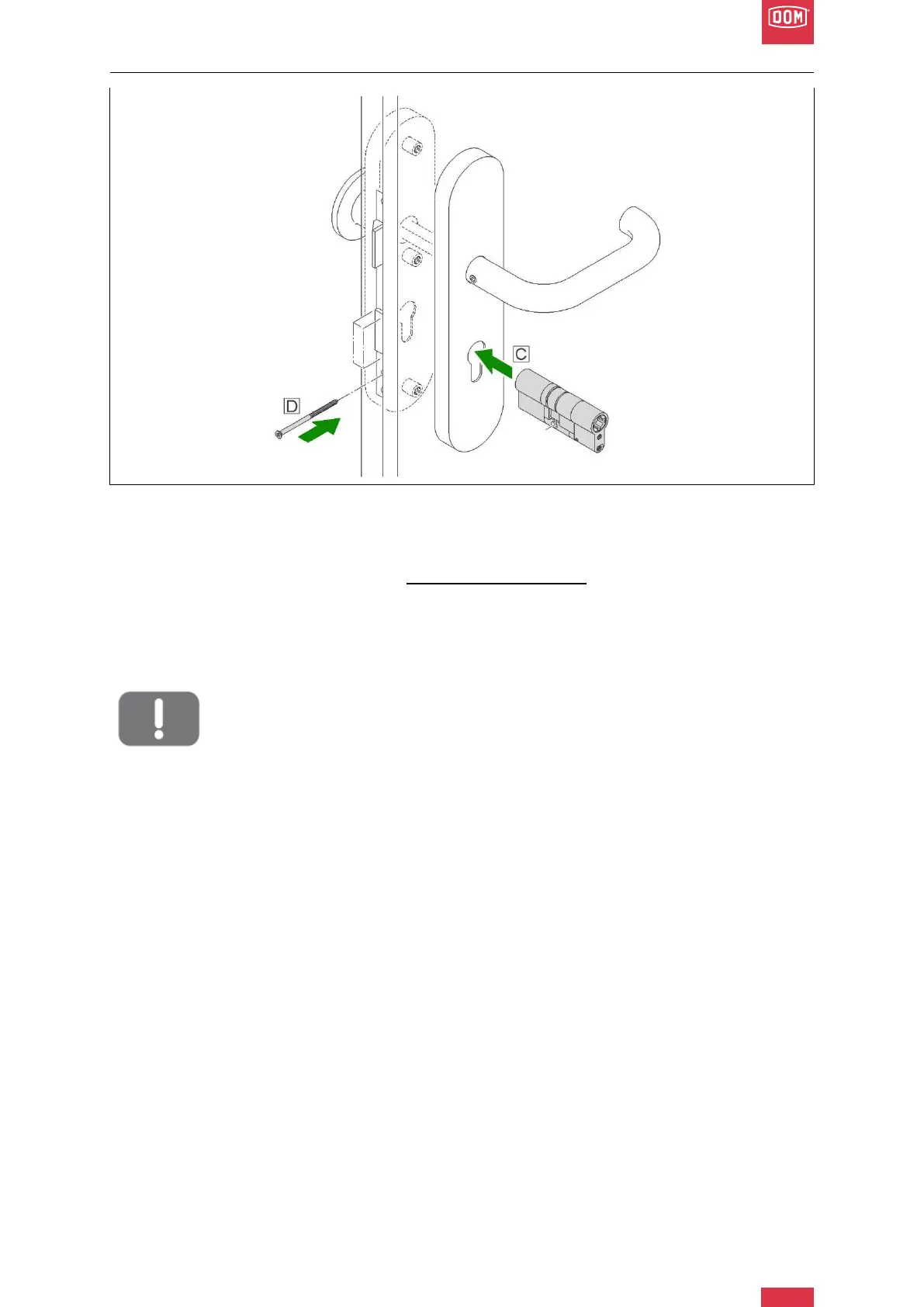

DOM Roq® Fig. 37: Long Plate Inside Without Visible Screw Connection
3. Insert new cylinder with locking lug in basic position (flush, 6 o'clock, see page 13)
from the inside. (C)
4. Insert the key from the outside (hold it in from the inside).
5. Check from the outside with the key whether the cylinder can operate the lock (no
grinding or sluggishness).
6. With the help of the key, move the latch out.
7. Hand-tighten the cylinder with the forend screw. (D)
Attention! Damage due to braced installation.
Make sure that the locking lug does not rub against the side plate of the lock
and that the lock can be easily operated by the cylinder. Otherwise the cylinder
or the motor unit may be damaged.
8. Retract the latch and remove the key.
